Specifications
air cooled condensersThe FN series Products are air cooled heat exchangers for refrigeration system.

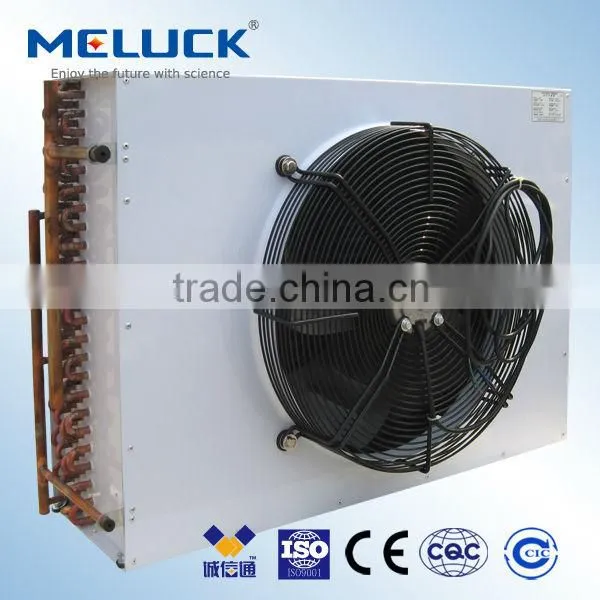

FN series air cooled copper fin condenser for the refrigeration system
air cooled condensers
1. Product description
The FN series Products are air cooled heat exchangers for refrigeration system. They are divided in 4 groups: FN, FNC, FNS and FNV. The air flow of them all is flowing out by side except FNV, which is top blowing. All the products have been tested on 2.8MPa air leakage, and the system is disposed of pollution, applicable to R22R134aR404AR407C systems.
2.
Model |
capacity |
Area m2 |
fan |
Pipe dia.(mm) |
Overall size(mm) |
Installation size (mm) |
|||||
Input (w) |
Dia. (mm) |
Air flow (m3/h) |
voltage (v) |
In |
Out |
A×B×C |
D |
E |
|||
FN-2 |
0.6 |
2 |
1×35 |
200 |
410 |
220 |
φ10 |
φ10 |
320×100×230 |
270 |
65 |
FN-3.4 |
1.0 |
3.4 |
1×35 |
200 |
410 |
220 |
φ12 |
φ12 |
320×100×230 |
270 |
65 |
FN-4.4 |
1.3 |
4.4 |
1×60 |
250 |
750 |
220 |
φ12 |
φ12 |
370×100×280 |
325 |
65 |
FN-5.4 |
1.6 |
5.4 |
1×75 |
300 |
1350 |
220 |
φ12 |
φ12 |
440×100×330 |
392 |
65 |
FN-7.0 |
2.0 |
7.0 |
1×90 |
300 |
1350 |
220 |
φ12 |
φ12 |
440.×135×330 |
390 |
90 |
FN-8.4 |
2.3 |
8.4 |
1×150 |
350 |
3100 |
380 |
φ16 |
φ12 |
500×130×430 |
455 |
95 |
FN-11.5 |
3.5 |
11.5 |
1×150 |
350 |
3100 |
380 |
φ16 |
φ12 |
480×180×430 |
430 |
145 |
FN-15 |
4.4 |
15 |
1×150 |
350 |
3100 |
380 |
φ16 |
φ12 |
550×180×480 |
490 |
145 |
FN-18 |
5.2 |
18 |
1×180 |
400 |
4500 |
380 |
φ19 |
φ16 |
590×180×530 |
530 |
140 |
FN-22 |
6.4 |
22 |
1×180 |
400 |
4500 |
380 |
φ19 |
φ16 |
590×180×530 |
530 |
140 |
FN-25 |
8.1 |
25 |
1×180 |
400 |
4500 |
380 |
φ19 |
φ16 |
750×180×680 |
660 |
150 |
