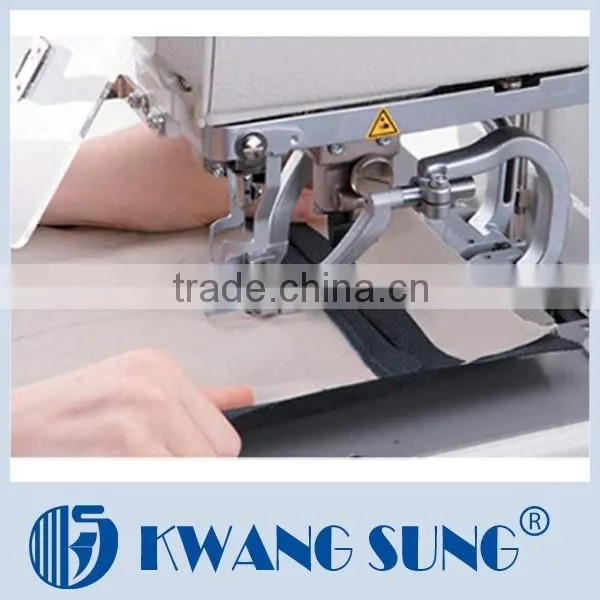

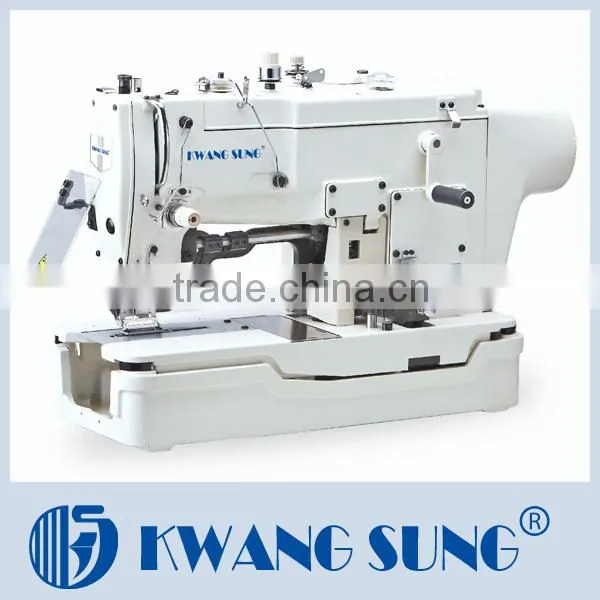

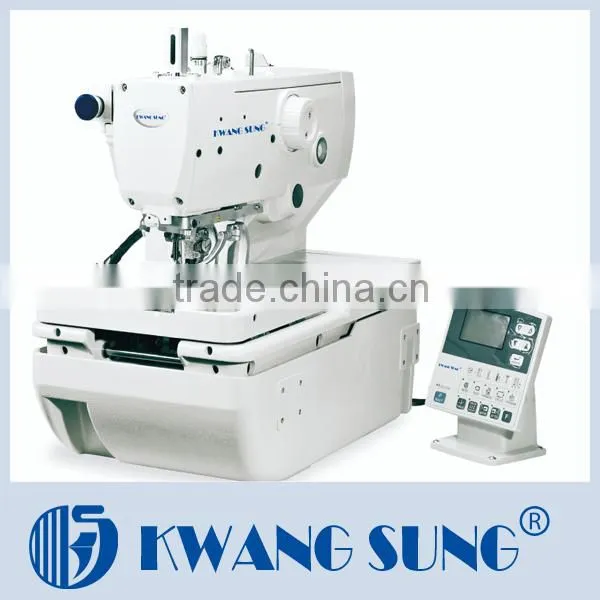

KS-9820-01 Button Hole Machine Price/Eyelet Button Hole Sewing Machine
1. Typical application: jeans, work wear, sport wear, uniforms, protective clothing, men's suits, jackets, women's coats also heavy materials and jeans.
2. It is also suitable for round bar tacking with diameter of 1-4mm, developed software realizes the individual programming and easy operation. It also has the function of automatic testing for broken needle and loose line.
Model: |
KS-9820-01 |
|
Round-head eyehole:8-42mm |
straight button hole:5-42mm |
|
Sewing Speed: |
1000-2500r.p.m |
|
Needle code: |
0.5-2.0mm |
|
zigzag: |
sewing width:1.5-5.0 |
|
length of fastened sewing of stream line: |
0-20mm |
|
Work Clamp Height: standard:12mm |
max:16mm |
|
Start-off mode: |
double pedal switch |
|
Cloth-sending device: |
Intermittent cloth-sending 0f3pulse motors(X,Y) |
|
Needle: |
DO*558NY2#-18# |
|
UPPER SHAFT MOTOR: |
AC-servo-motor 550W |
|
Air pressure: |
hammer-pressure regulator: 0.4MPa main regulator 0.5Mpa |
|
Weight: |
machine head:120kg,operation board0.6kg control box:14.2-16.2kg |
|
Power: |
Single phase 100V/200V 3-PHASE200V/220V/380V400V,400VA |
|
|
|
|
