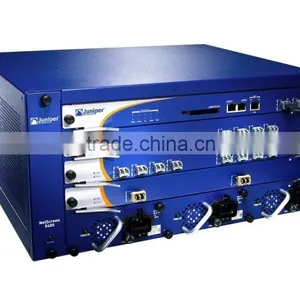

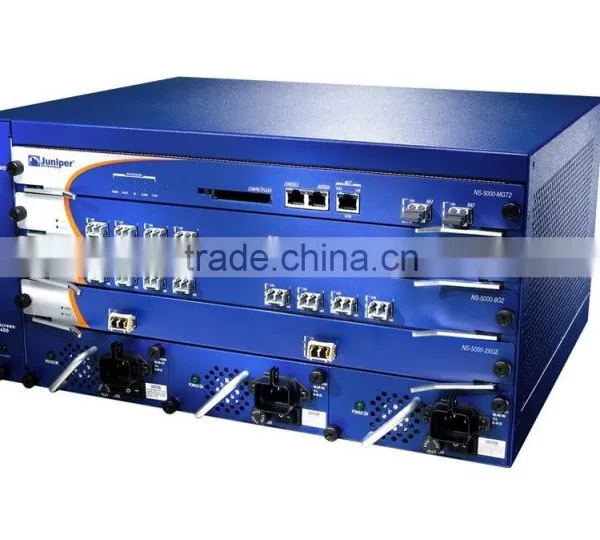

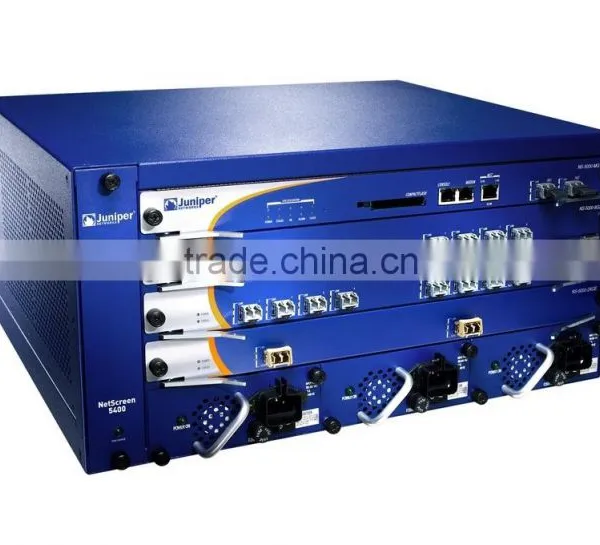

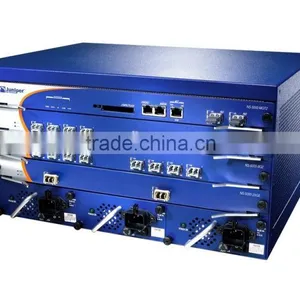

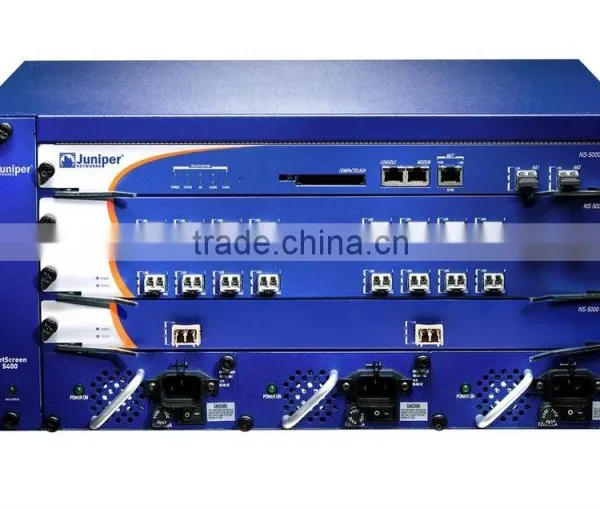

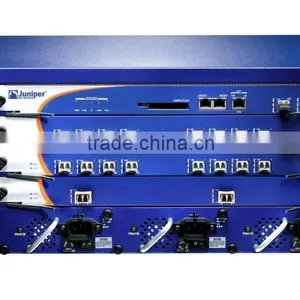

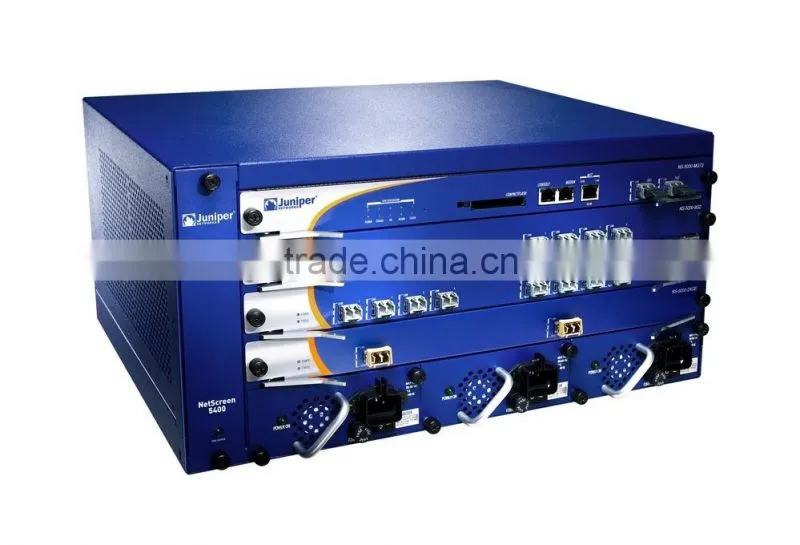

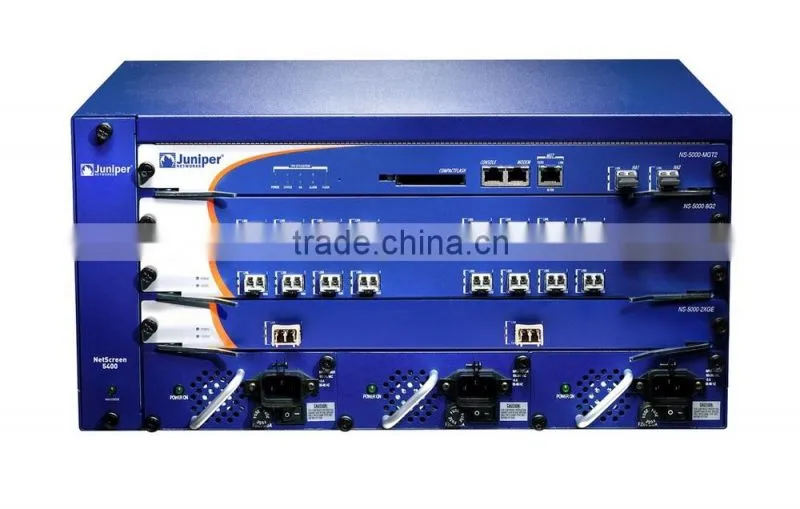

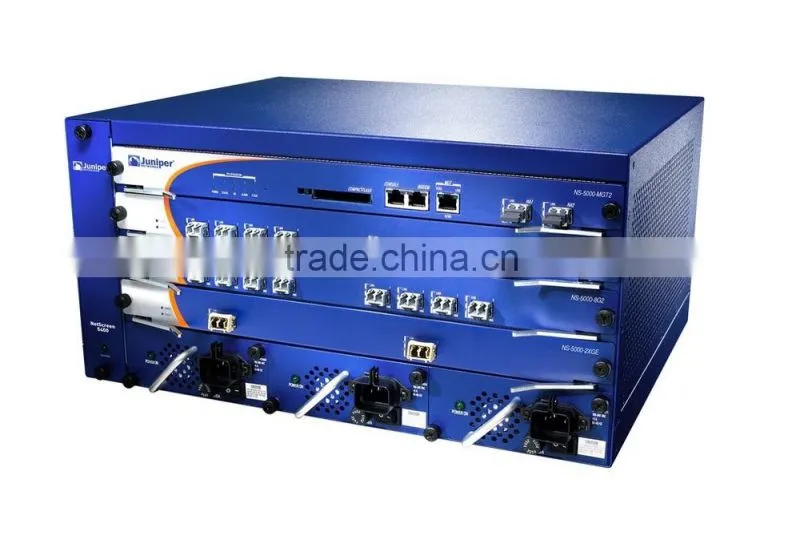

Juniper Firewall NetScreen-5400 NS5400 NS-5400 NetScreen 5400
Delivers up to 30 Gbps of firewall throughput
The NetScreen-5400 integrates firewall, VPN, traffic management, DoS and DDoS protection, while delivering up to 30 Gbps of firewall throughput.
Overview
NetScreen-5400 is a comprehensive security system suited for large enterprise network backbones including departmental or campus segmentation, enterprise data centers, or other high-density server environments, as well as carrier-based managed services and core infrastructures.
Its four-slot chassis provides excellent flexibility and scalability while providing high levels of security that integrate firewall security, VPN security, traffic management functionality, denial of service (DoS), and distributed denial of service (DDoS) protection.
Built around Juniper’s third-generation security ASIC and distributed system architecture, NetScreen-5400 delivers up to 40 Gbps of firewall throughput in a modular design to provide the scale and flexibility needed in large enterprise and service provider networks.
Specs
| Number of Interfaces* | 8 mini-GBIC (SX, LX or TX), or 2 XFP 10 Gig (SR or LR) |
| Maximum Number of IP Addresses in Trusted Interfaces | Unrestricted |
| Maximum Throughput | 30 Gbps Firewall 15 Gbps 3DES VPN |
| Maximum Number of Sessions | 2,000,000 |
| Maximum Number of VPN Tunnels | 25,000 |
| Maximum Number of Policies | 40,000 |
| Maximum Number of Virtual Systems | 0 default, upgradeable to 500 |
Features
Modular Design supports scale and flexibility in large enterprise and service provider networks
High Availability is built in for sub-second failover between interfaces or devices
Full Mesh Configurations provide redundant physical paths in the network for maximum resiliency and uptime
Virtual Systems allow partitioning into unique security domains
Interface Flexibility accommodates varying network connectivity and future growth requirements
Virtual Routers provide alternate, concealed routes to final destinations
Security Zones can be customized to increase interface density without additional hardware
Transparent Mode offers firewall, VPN, and DoS protections with minimal network changes
-
Centralized Management is provided through a graphical Web interface, CLI, or Juniper Networks Network and Security Manager
