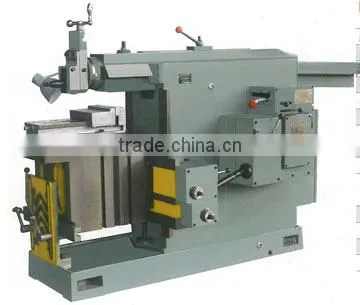

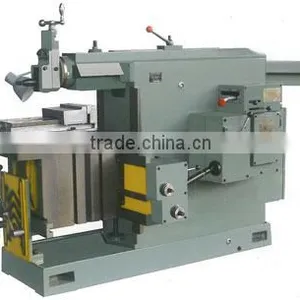

Help CenterShaping Machine BC6066
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
SIMEX
Model Number:
BC6066
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
China
Brand Name
SIMEX
Model Number
BC6066
Specifications
1.max shaping length:660mm2.max travel of table: 660mm
SHAPING MACHINE BC6066SPECIFICATION:
Model |
BC6063/BC6066 |
|
Maximum cutting length(mm) |
630/660 |
|
Maximum distance from ram bottom to table surface(mm) |
385 |
|
Maximum table horizontal travel(mm) |
630 |
|
Maximum table vertical travel(mm) |
360 |
|
Dimensions of table top surface(L×W)(mm) |
630×400/660×400 |
|
Travel of tool head(mm) |
120 |
|
Number of ram strokes per minute |
14,20,28,40,56,80 |
|
Swivel of tool head(°) |
±60° |
|
Maximum size of tool shank(W×T)(mm) |
20×30 |
|
Range of table power feed |
horizontel |
0.2~2.5 |
vertical |
0.08~1.00 |
|
Width of central T-slot of table(mm) |
18 |
|
Power of mortr(kw) |
3 |
|
Overall dimensions(L×W×H)(mm) |
2342×1225×1480 |
|
N.W/G.W(kg) |
1750/1870 1800/1920 |
|
