MANUAL SURFACE GRINDING MACHINE M618A

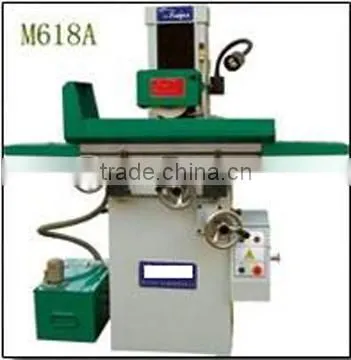

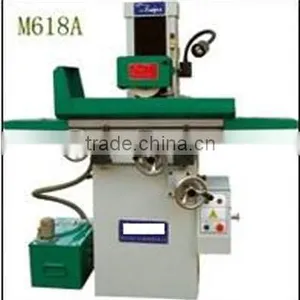

MANUAL SURFACE GRINDING MACHINE M618A photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
SIMEX
Model Number:
M618A
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI PORT
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name SIMEX
Model Number M618A

Specifications

1.table size :460X180MM

Manual  SURFACE GRINDING MACHINE M618A SPECIFICATION:



 Manual Surface Grinder M618A Specification:



1Adopt the exceeding precise class7(P4 level) ball bearing for spindle.
2Bring transmission by synchronous belt,operating simple and convenient.



Technical Parameters

Units

M618A

MS618A

piece to be Ground
( L×W×H)

mm

500×190×335

500×190×335

Max. Grinding Length

mm

500

500

Max. Grinding Width

mm

190

190

Distance From Table Surface To Spindle Center

mm

335

335

Slide way



V-type rail with Steel-ball

V-type rail with Steel-ball

V-type rail with Steel-ball

Kg

200

200

Table Size (L×W)

mm

460×180

460×180

Number of T -Slot

mm×n

12×1

12×1

Speed OF Working Table

m/min

3-23

3-23

Cross Feed On Handwheel

mm

0.02/Graduation 2.5/revolution

0.02/Graduation 2.5/revolution

Vertical Feed On Handwheel

mm

0.01/Graduation 1.25/revolution

0.01/Graduation 1.25/revolution

Wheel Size (dia.×width×bore )

mm

200×16×31.75

200×16×31.75

Spindle Speeds

50Hz

rpm

2850

2850



0-6000

30-6000

Spindle Motor

Kw

1.1

1.1

Coolant Pump

Kw

0.4

0.4

Minimum of Numerical Display

mm



0.001-0.005

Machine Size (L×W×H)

mm

1550×1060×1590

1550×1060×1590

Packing Size (L×W×H)

mm

1060×1170×1870

1060×1170×1870

GrossNet

T

O.75 0.65

O.79 0.69
