Help Center10W High Power LED Red 615-630nm With RoHS 3 Years Warranty
Related Products
-
Shenzhen Crescent 5W High Power LED White 6000-6500K Epistar Chip Perfect for LED DownlightNegotiableMOQ: 1000 Pieces -
COB LED Matrix 30W LED Shenzhen Manufacturer Direct SaleUS$ 1 - 5MOQ: 100 Pieces
-
15W Yellow COB Leds Led Bulb Light Addressable Rgb Led StripUS$ 4 - 6MOQ: 100 Pieces
-
5w Led Cob Light Rgb Led Wall WasherUS$ 1 - 5MOQ: 100 Pieces
-
Cool White Cob 5W High Power Led 350mA 16-18V 400-450lmUS$ 0.15 - 0.5MOQ: 500 Pieces
Specifications
1) Epistar chip2) RoHS Compliant
3) Over 50,000H operating life
4) 3 years warranty
Package Dimensions of 10W High Power LED from Shenzhen Crescent Optoelectronic Co.,Ltd
Notes:
1).All dimensions are in milimeter.
2).Tolerance is ±0.25 unless otherwise noted.
Specifications of 10W High Power LED from Shenzhen Crescent Optoelectronic Co.,Ltd
| Part No. | Emitting Color | Forward Current (mA) |
Power Dissipation (W) |
Wavelength(nm) CCT(K) |
Driver Voltage (V) |
Luminous Flux (Lm) |
| XY-C10QWCJ-B | White | 350 | 11.2 | 2500-10000 | 32-34 | 700-800 |
| XY-C10BRFJ-B | Red | 350 | 7.7 | 615-630 | 22-24 | 400-450 |
| XY-C10BYFJ-B | Yellow | 350 | 7.7 | 585-595 | 22-24 | 400-450 |
| XY-C10OBJ-B | Blue | 350 | 11.2 | 460-470 | 32-34 | 150-200 |
| XY-C10OGFJ-B | Green | 350 | 11.2 | 515-530 | 32-34 | 500-600 |
The Emitting Color above are all available for your option !
Absolute Maximum Ratings At Ta=25°C
| Parameter | Symbol | Ratings | Units |
| Power Dissipation | PD | 11.2 | W |
| Continuous Forward Current | IF | 350 | mA |
| Peak Forward Current | IF(Peak) | 700 | mA |
| LED Junction Temperature | TJ | 125 | °C |
| Reverse Voltage | VR | 50 | V |
| Operating Temperature Range |
TOPR | -30°C To +60°C | |
| Storage Temperature Range |
TSTG | -30°C To +60°C | |
| Manual Soldering Temperature |
TSOL | 350°C± 20°C For 3 Seconds |
|
| Soldering on a heat plate | TSOL | 190°C± 10°C For 20Seconds |
|
| ESD Sensitivity | ESD | 2000V HBM | |
High Quality Chips (Optional) of 10W High Power LED from Shenzhen Crescent Optoelectronic Co.,Ltd

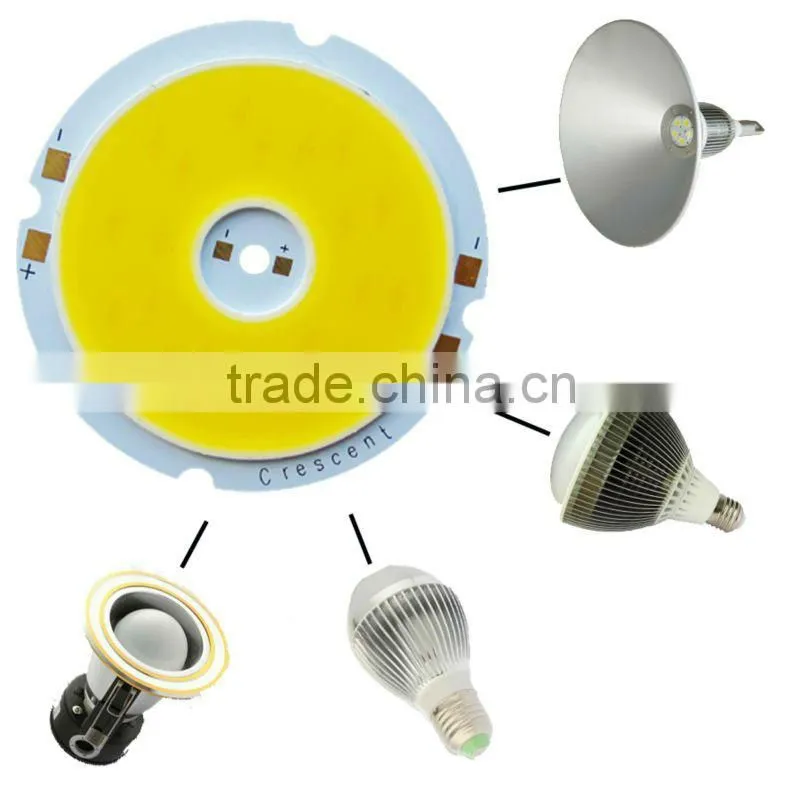

Applications of 10W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
Package of 10W High Power LED from Shenzhen Crescent Optoelectronic Co.,Ltd
Delivery
1). UPS / DHL / EMS / HK EMS / FEDEX / TNT etc. are available.
2). Products in bulk can be shipped by sea.
3). The shipping cost is different in different seasons and depend on different weight, we will choose the cheapest and safest way according to your detail quantities.
4). Normally, it will take around 3-7 business days from China to destination country. Please note that some remote place will need another 1-3 days.
Payment
Escrow, WesternUnion, T/T etc. available
