Over-Current Protection Line-Interactive Ups 3 Kva
| Item No. | C3K | C3KS | C3KR | C3KRS |
| Series Name | Castle | |||
|
Rated Capacity (with voltage regulated) |
3000VA/2400W Line- Interactive UPS | |||
| Input | ||||
| Nominal Input Voltage | 145VAC-275VAC | |||
|
Voltage Fluctuating Range |
±5 | |||
| Nominal Input Frequency | 45-65Hz | |||
| Bypass Voltage | 120VAC-285VAC | |||
| Bypass Fluctuating Range | ±5% | |||
| Output | ||||
|
Nominal Output Voltage (By Inverter) |
220VAC | |||
| Fluctuating range | ±1% | |||
Nominal Output Frequency |
50Hz±5Hz(With Stable AC Input) 50Hz±1%(With Unstable AC Output) | |||
| Power Factor | 0.8 | |||
| Overload Capacity | 130%overload≥30s, Recovery 90% load | |||
| Batteries & Runtime | ||||
| Battery Type | VRLA | _______ | VRLA | _______ |
| Battery mounting | Enclosed Battery |
Extended Baterry Cabinet |
Enclosed Battery |
Extended Baterry Cabinet |
|
Expected Battery Life (years) |
3 years | |||
| Battery Capacity (AH) | 9AHx6PCS | _______ | 9AHx6PCS | _______ |
| Battery Voltage | 72/96VDC | |||
| Backup Time | ≥10Mins(Halfload) ≥8Mins(Fullload Standard) | |||
| Charging Time |
90% Recharged in 5Hs (Standard) |
Depending On Extended Battery |
90% Recharged in 5Hs (Standard) |
Depending On Extended Battery |
| Transfer Time | ≤2.5MS | |||
| Physical | ||||

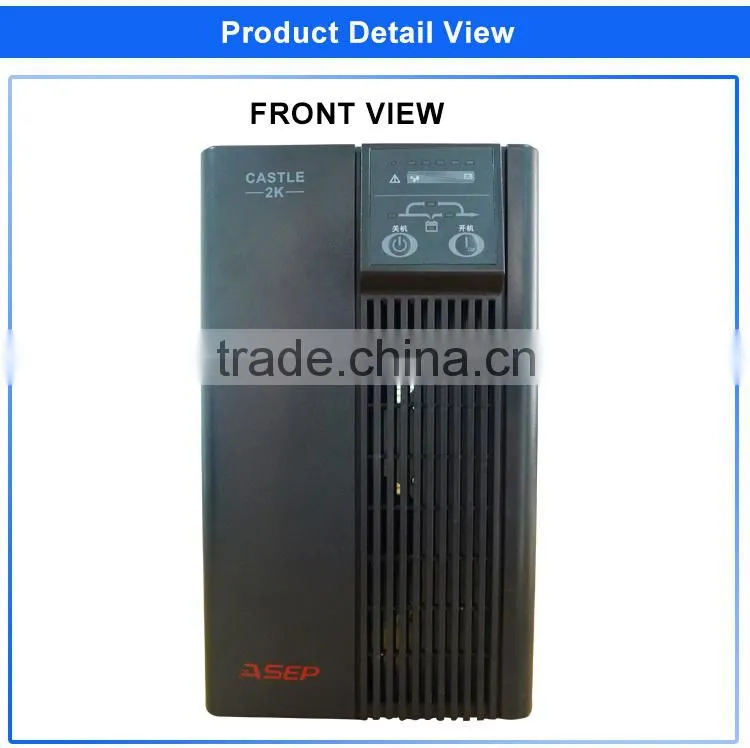

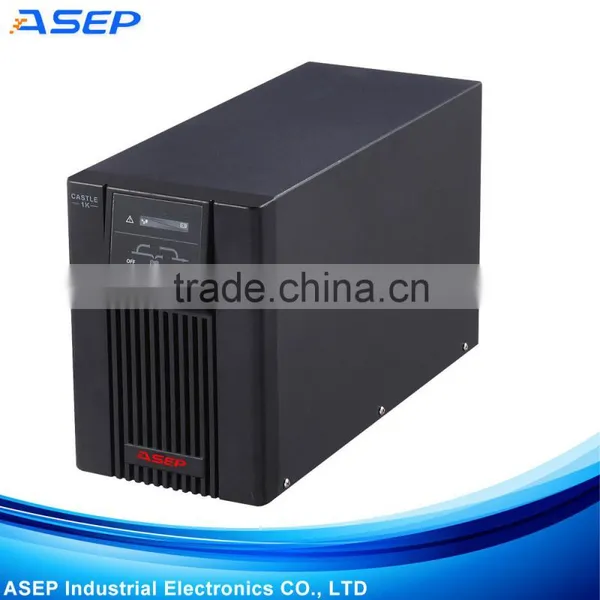

| Mounting mode | Stand Alone Tower | Stand Alone Tower | Rack Mounted | Rack Mounted |
| Shipping Weight | 31KG | 21KG | _______ | 22KG |
| Shipping Width | 190MM | 190MM | 478MM | 478MM |
| Shipping Height | 320MM | 320MM | 88MM | 88MM |
| Shipping Depth | 430MM | 380MM | 380MM | 380MM |

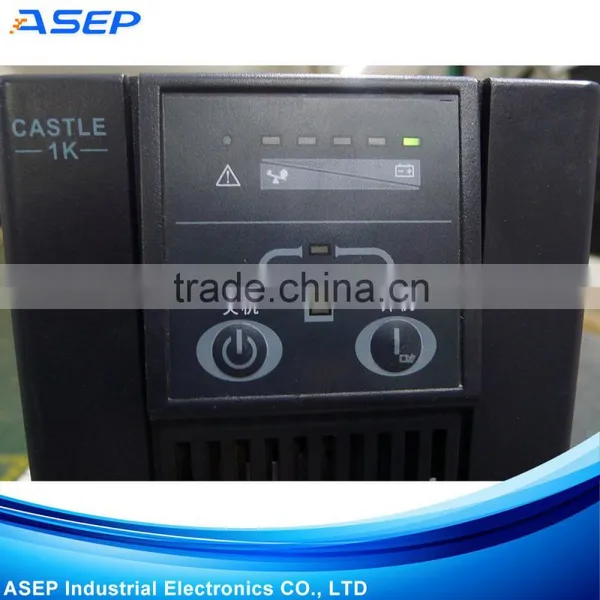

| Display | LED or LCD | |||

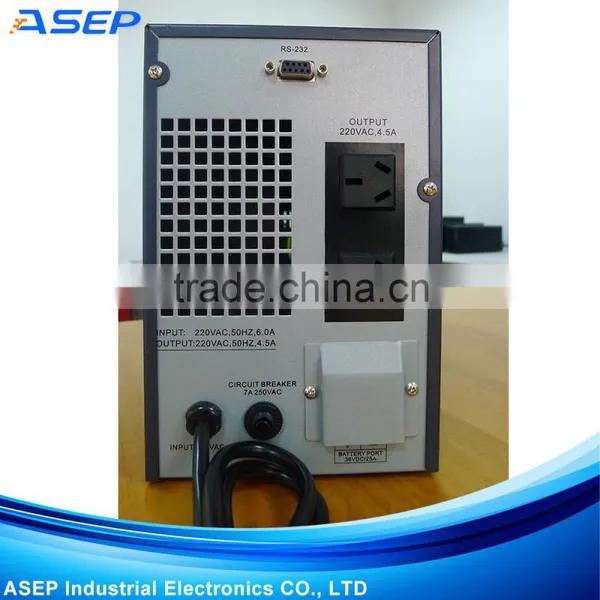

| Communication Interface | RS232 or 485, Dry Contact, Intelligent Slot(SNMP Card and SMS Available) | |||
| Noise (within 1 m) | <55db | |||
| Color | Black | |||
| Environmental | ||||
| Operating Temperature | -10℃ to +40℃ | |||
|
Operating Relative Humidity |
0 to 95% Non Condensing | |||
| Operating Altitude | ≤1500M | |||
| Conformance | ||||
| Regulatory Approvals | ISO9001 | |||
| Standard Warranty | 1 year | |||
Features:
ASEP’s Castle series uninterruptible power supplies have embraced our latest line-interactive technology and can be applied in many fields to deal with all sorts of power disturbances.
A. High Efficiency
- Using PFC technology, the input power factor can reach up to 0.98.
B. Ultra-wide range of voltage input
- Provides stable sine wave power even under hash utility power condition, reducing unnecessary usage of the battery-- prolonging the battery’s life
C. Eco Friendly
- In accordance with ROHS requirements
D. Wide range Extensive Function
- RS-232 communication interface enables remote monitoring such as using EMD.
- By using the intelligent slot SNMP card, RS485 AS400 card and WINPOWERCMC card all can be applied.
- Cold-boot function allows the device to be started in any circumstance
- Self-diagnosis function
E. Working with a generator is also possible.
Product Advantages
After-sales service
A. Remote Technical Support (those with WIFI module installed);
With WIFI module installed, we can help you monitor the performance of your machine.
B. Free training and Consultancy
Apart from the user manual, free personnel training is offered at our factory.
C. 2% Back-up material for main parts is provided.
For order more than 100 pcs and above, we can provide 2% back-up for key parts of the machine.
D.One Year Warranty
If you have any questions, plz feel free to contact us.
