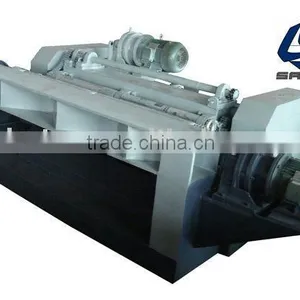

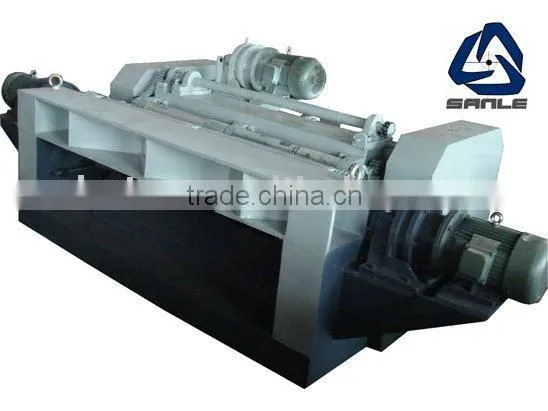

veneer peeling machine
SLW XPC series digital frequency conversion Log peeling machine is turned by French curve cam,adopting overall frame structure reinforced with lower sideway, whereupon stable feeding of edge is ensured .Different from timing motor and hydraulic feeding ayatem ,speed variation is realized with pure mechanical mode ,and thus avoiding instable shaved thickness caused by impulaive force of log which is out of round .
Control System 1: Equiped with US Emerson transducer ,Taiwan TaiDa PLC programmer ,Human Vs Machine interface ,thinkness display , which ensures operation stability and outputting even and level veneer ,smooth and level .the error is limited to±0.05mm or so ,operation with facility .
Control System 2: Taiwan TaiDa transducer is applied ,also adopted including
Taiwan TaiDa PLC programmer,touch screen ,thickness display , which ensures operation stability and outputting even and level veneer ,smooth and level .the error is limited to±0.05mm or so ,operation with facility .
Type |
Processing Diameter(mm) |
Processing Length(mm) |
After Diameter(mm) |
Speed (m/min) |
Veneer Thickness(mm) |
SLW1500XPC |
260 |
1400 |
28 |
35 |
0.4--5.0 |
300 | |||||
Weight(kg) |
Roller’s Diameter(mm) |
Power(kw) |
Out Mansure(mm) |
Knife Fixation |
|
3500 |
99 |
20.5 |
3000×1800×1100 |
Obverse fixation |
|
