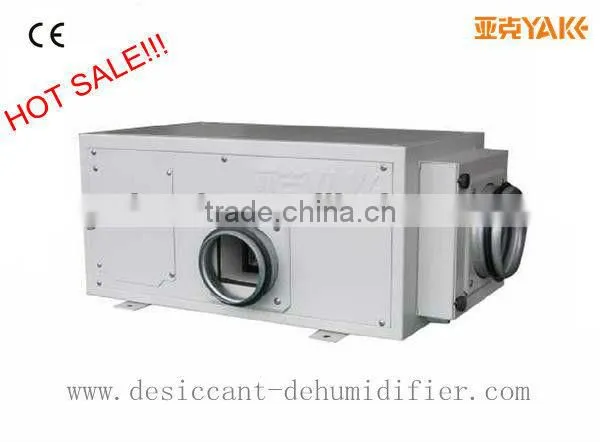

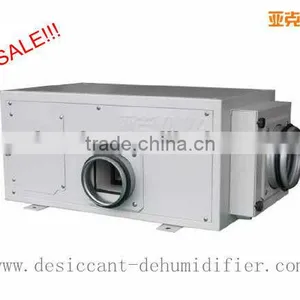

2016 Compact Metal Body Customized Ceiling Dehumidifier
Brief Introduction Ceiling Dehumidifier
YAKE manufactures a high efficiency & high capacity ceiling dehumidifier build for the heavy loads and harsh environments of indoor swimming pools, it can be built-in the invisible space, such as wall, ceiling etc, without disturbing the existing decoration. Refrigeration and internal air circulation of the instrument allow the incoming air to cool below its dew point and the water vapor will be evaporated. Ceiling Dehumidifiers offer a high performance line of low-temp heavy duty dehumidifiers. Ceiling Dehumidifiers is an energy efficient refrigeration dehumidifier that based on condensation principle to extract moisture from the air. The instrument produces less noise and also reduces energy costs.
Parameters Ceiling Dehumidifier
| Model | RYDZ-36A |
| Capacity | 30L/D(@30ºC 80%) |
| Valtage | 220V/50Hz(or 110V/60Hz) |
| Current | 3A |
| Power | 700w |
| Temp.range | 5-38°C |
| Filters | G4 efficiency |
| Weight | 30kg |
| Compressor | Panasonic |
| Protection | Delayed startup for protection |
| Waterproof Rank | IPXO4 |
| Package | Wooden case |
| Dimension |
24.4"*17.8"*13.86" 575*325*245mm |
Main Features Ceiling Dehumidifier
- Very low noise
- Backward air outlet
- Reduced energy costs
- Eliminates chemical and musty odors
- Corrosion Resistant Casing
- Simple to set up and operate
- Automatic built-in advanced defrosting system
- centrifugal fan direct-coupled to the motor
- water-cooled refrigerant condenser
- Cleanable or disposable 30% inlet air filters
- Micro processor controlled System
- Defrost automatically when the ambient temperature is below 18 deg.C.
- Non-touch point tank full switch
- Power Reciprocating compressor
- Electric, steam, direct or indirect fired gas reactivation
- Energy saving plastic cabinet dehumidifier
- Installed in the ceiling
- Superior humidity control
- Simple installation & portable
Drawing

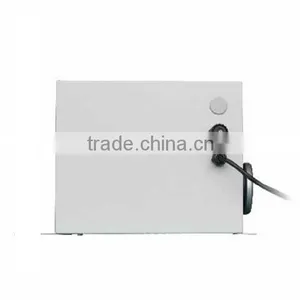

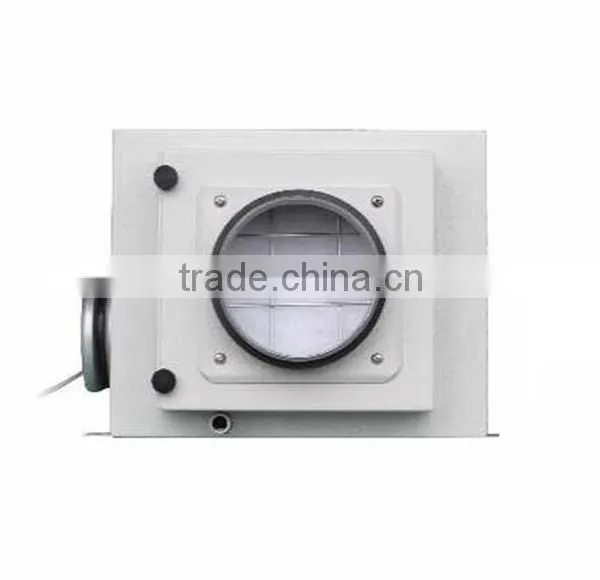

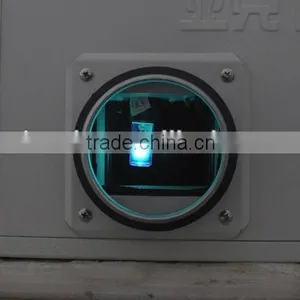

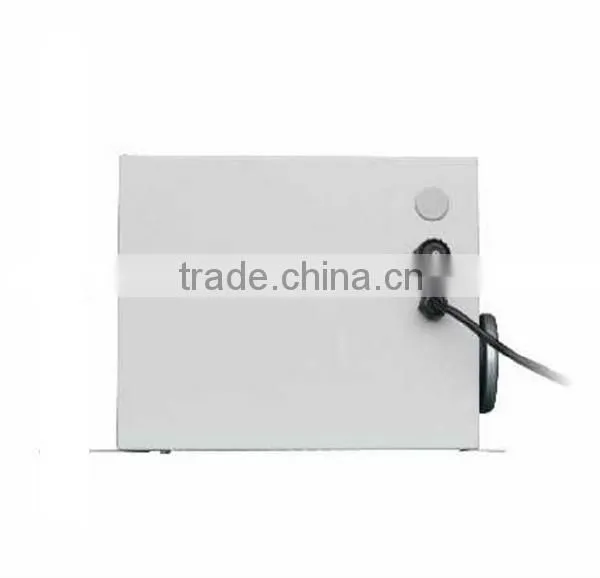

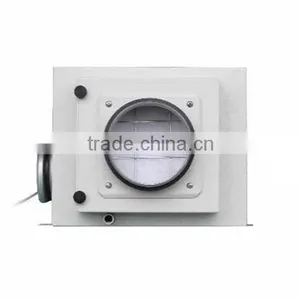

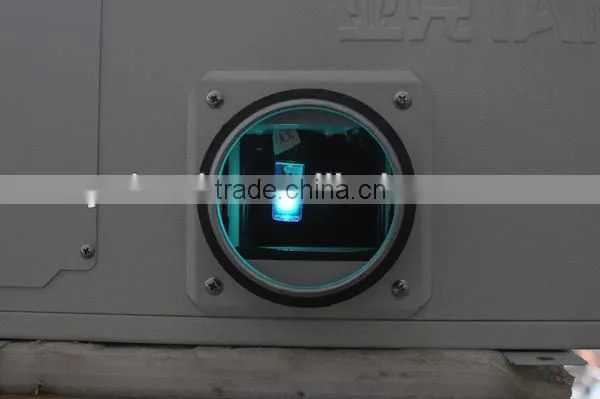

Details pictures
Tips:
Working Principle
Utilizing refrigeration and internal air circulation to cool the incoming air stream below its dew point, and the water vapor will be went out through the plate below evaporator. the processed air is reheated by passing through the condenser coil. The heat removed by the evaporator coil is returned to the air stream, resulting in an overall temperature increase to the processed air. so continuous circulation, makes indoor humidity gradually reduce. The ceiling/wall mounted dehumidifier can run with ventilation duct with wind valve, also can be used separately.
