Specifications
fiber laser marking machine for sale1.2 year warranty
2.marking depth<0.5mm
tal jewelry marking and engraving

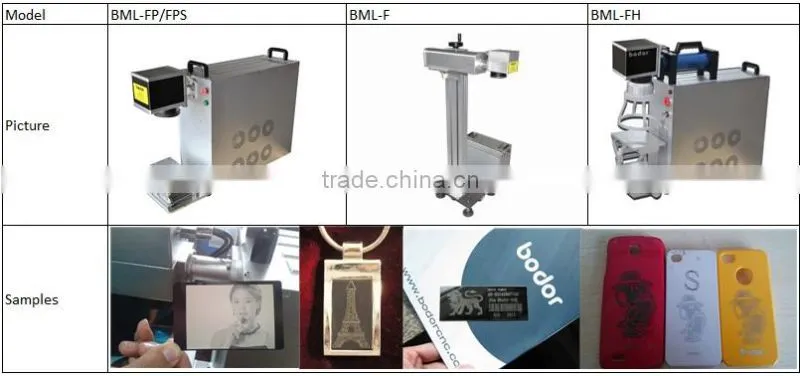

fiber laser marking machine for sale 10w/20w/30w
1. High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction. Exporting TEMOO of fundamental transverse mode. M2 near to 1. Beam divergence angle is only 1/4 of diode laser. Focus dot diameter is not over 20 um.
2. High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power surge is lower than 1%. Easy control laser dot size, thickness and shape.
3. High speed 2-3 times over than traditional diode pumped marking machine.
4. Air-cooling smart machine size!
5. Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%(Not suitable for stainless steel color marking ).
| Model | BML10FPS | BML10FP | BML20FP | BML30FH |
| Laser Power | 10W | 10W | 20W | 20W |
| Laser Wavelength | 1064nm | |||
| Q-frequency | 20KHz~30KHz | |||
| Divergence | 0.3mard | |||
| Marking Range | 100*100mm | |||
| Minimum Line Width | 0.02mm | |||
| Minimum Character | 0.15mm | |||
| Marking Depth | 0 ~0.5mm | |||
| Engraving Line Speed | ≤7000mm/s | |||
| Repeatability Accuracy | ±0.001mm | |||
| Beam Quality | M2:1.2~1.8 | |||
| Marking Format | Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batch Number,Serial Number,Frequency,etc. | |||
| Graphic Format Supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. | |||
| Working Voltage | 220V±10%/50Hz/4A | |||
| Unit Power | <0.5kw | |||
| Use of the Environment | Clean and Dust Free or Dust less | |||
| Working Condition:Humidity | 5%-75%,Free of Condensed Water | |||
| Laser Module Life | >100000 hours | |||
inside package: transparent membrane
outside package: wooden boxes for sea transport or air transport
Jinan Bodor CNC Machine Co.,Ltd was founded in 2002.
In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc
2 year warranty
