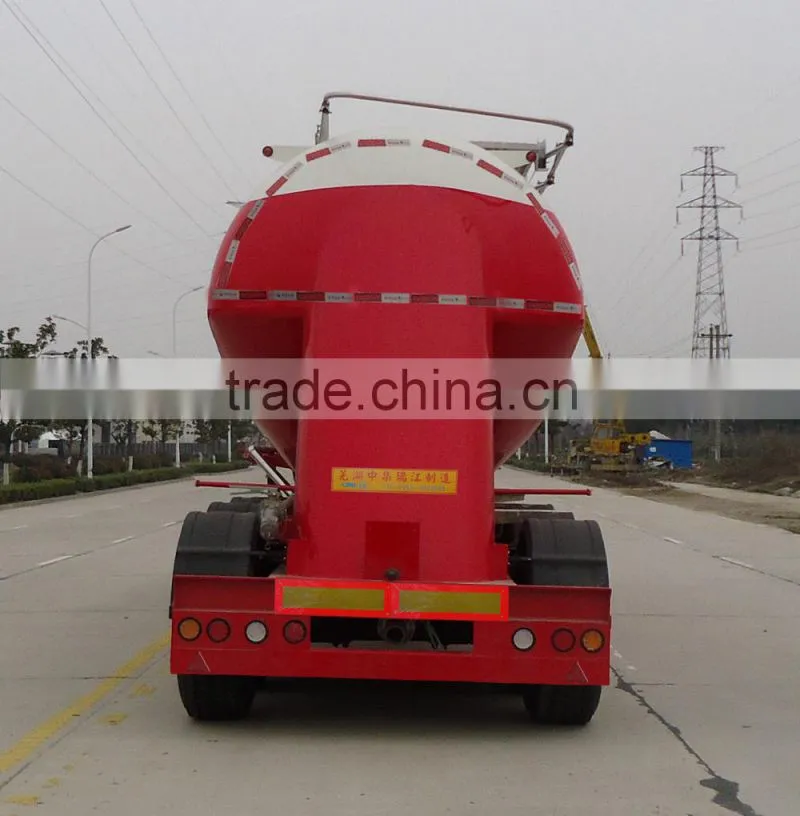

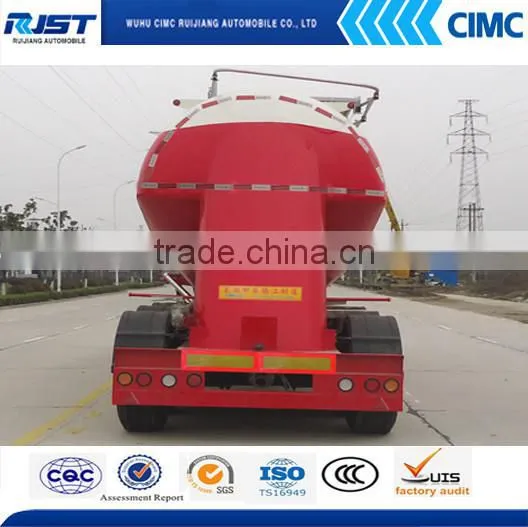

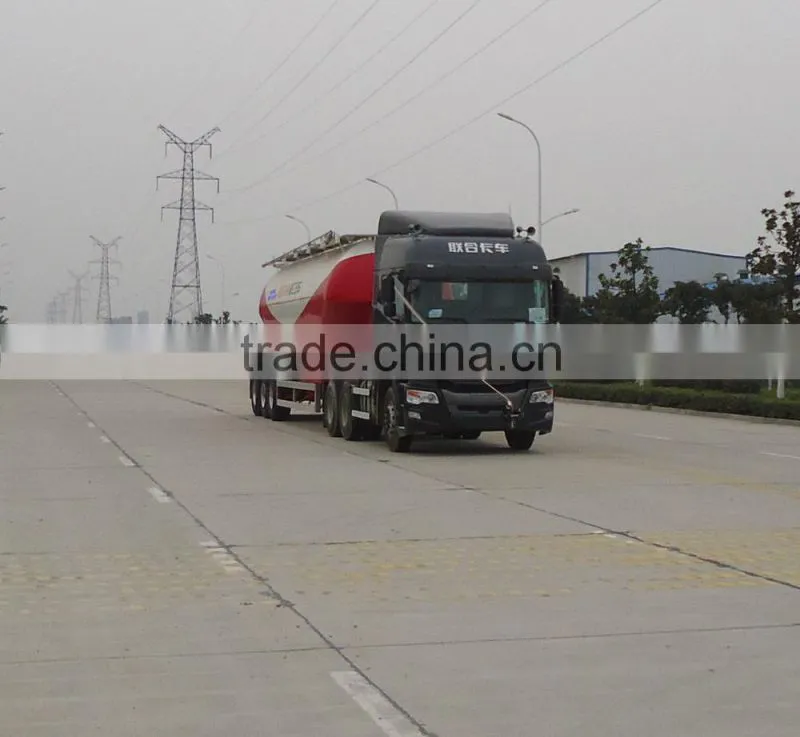

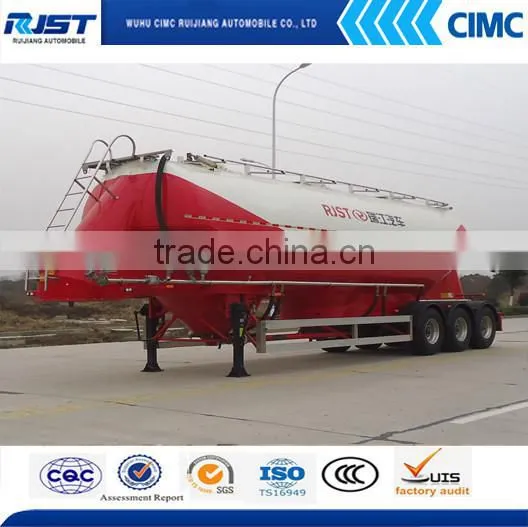

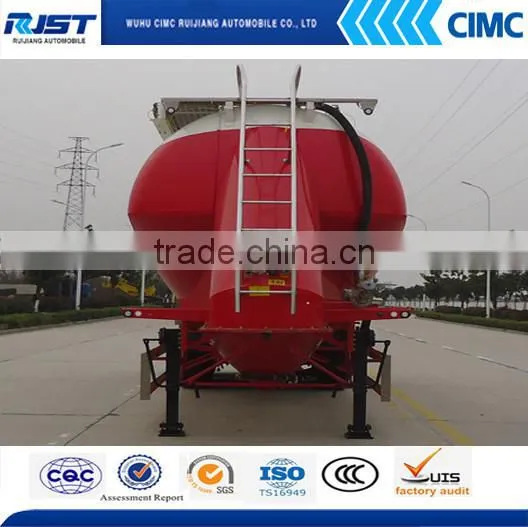

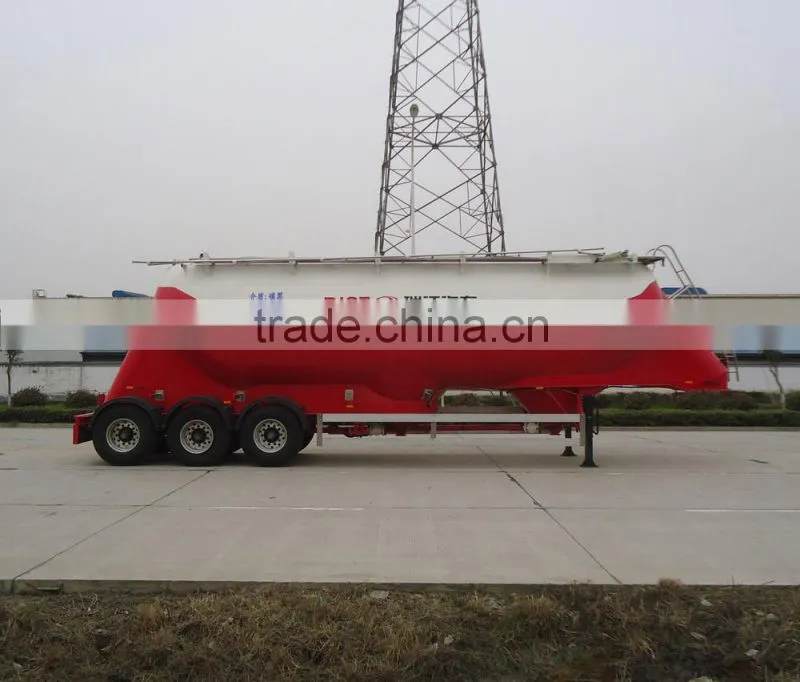

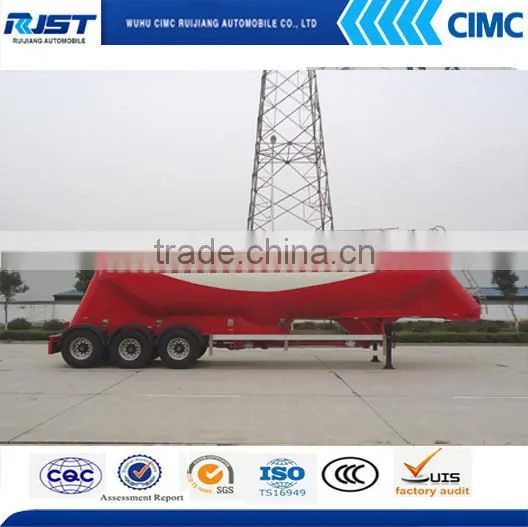

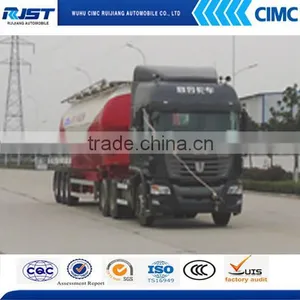

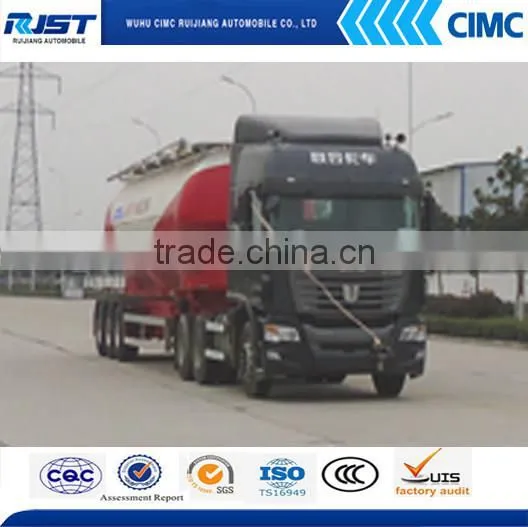

3 Axle Aluminum Alloy Vertical Powder Tank Semi Trailer/powder Tank Trailer/bulk Cement Tank Trailer
US$ 38,000 - 40,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Semi-Trailer
Material:
Aluminum / Alloy
Certification:
Other, ISO9001/CCC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CIMC Aluminum Alloy Vertical Powder Tank Semi Trailer/powder Tank Trailer/bulk Cement Tank TrailerUS$ 38,000 - 40,000MOQ: 1 Unit -
60CBM Wheat Flour 3 Axle Truck Trailer/Bulk Powder and Particle Tank Trailer Bulk Cement Semi-trailerNegotiableMOQ: 1 Perch
-
35M3 Cement Tank Semi TrailerNegotiableMOQ: 1 Unit
-
Hot Sale !30M3 Cement Tank Semi TrailerUS$ 19,000 - 20,000MOQ: 1 Unit
-
Bulk Cement Tank Semi-trailer 35-71cbm for SaleUS$ 20,000 - 23,500MOQ: 1 Unit
Type
Semi-Trailer
Material
Aluminum / Alloy
Certification
Other, ISO9001/CCC
Size
12260*2500*3995
Max Payload
50T
Place of Origin
Anhui, China
Brand Name
CIMC
Model Number
WL9402GFL
Detailed Images
Product Description
| 3 Axle Aluminum Alloy Vertical Powder Tank Semi Trailer | |
| Overall information | |
| Tare weight | 6000kg |
| Effective Volume | 42m3 |
| Loading capacity | 42ton or other it‘s according to the medium |
| Dimension | 12260×2500×3995 |
| Axle Span | 8120+1310+1310 |
| Compartment | 3 or accoding to the customer's requirement |
|
shape |
V type |
| Tank material | Aluminum Alloy |
| Tank thickness | t3.5 |
| Manhole cover | 3 sets or accoding to the customer's requirement |
| Chassis | |
| Axle | Fuwa axle12ton type, 3 units |
| Rim | Magnalium;13.00*22.5 |
| Suspension | Common leaf spring suspension or air Suspension |
| Tire | 425/65R22.5 6units (triangle or double coin brand) |
| Kingpin | 50(2inch)#or 90(3.5inch)# bolt type |
| Landing gear | 28ton type |
| Color | white, yellow,red ,blue or customized |
| Braking system | 4S/2M ;T30/30 spring brake chamber |
| Others | |
| Painting | Sand blasting to clean rust, color will be according to customer’s demand. |
| Accessories | |
| Tool box | One piece |
| Electrical system | Standard 24v wire, 7 way input |
| Spare tire carrier | 1 diameter check valve |
Advantages
a. High transportation speed
b. Low residual rate
c.Wider transportation scope
Product Uses
1.Discharged by both gravity and external power, residual rate is much lower. With wide transportation scope, it can not only convey powdery material but also granular materials with larger diameter.
2.Tank Material: carbon steel, stainless steel, aluminum alloy, etc..
3.With low residual rate, it is a good choice for transporting foodstuffs such as flour and high-requirement chemical materials.
