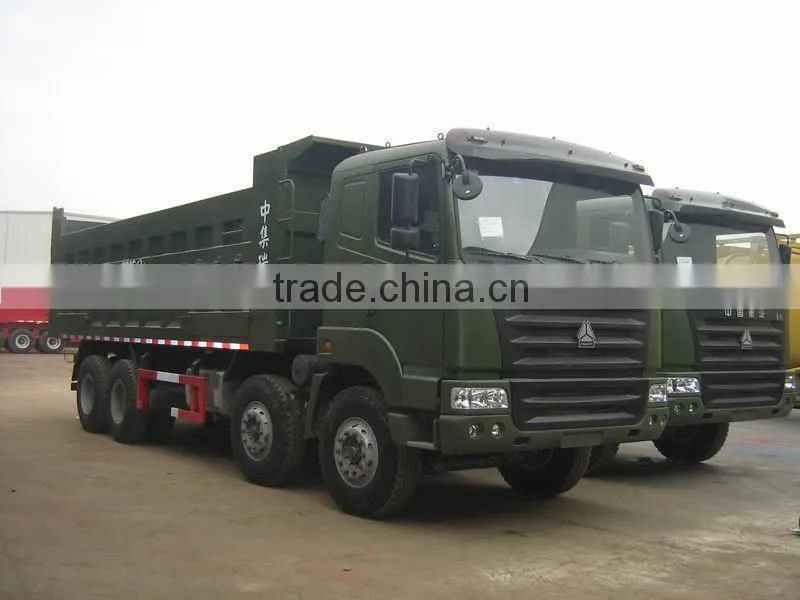

Help CenterHOWO Dump Truck for Mine and Rock
Related Products
-
C&C Dump Truck /tipper TruckUS$ 45,000 - 50,000MOQ: 1 Piece -
C&C 6*4 Dump Truck /tipper TruckUS$ 45,000 - 50,000MOQ: 1 Piece
-
China Dumper Truck Supplier for JAC Dump Truck 6*4 20ton SaleUS$ 30,000 - 45,000MOQ: 1 Piece
-
6*4 5.8m U Style Hopper Tipper Dump Truck (Ouman)US$ 43,000 - 52,000MOQ: 1 Piece
-
HOWO 6*4 Heavy-duty Dump TruckUS$ 38,000 - 43,000MOQ: 1 Piece
| TRUCK SPECS | CHASSIS MODEL | ZZ3257N3647A , 6 x 4 ,with air conditioner |
| Engine | WD615.69336HP Europe II | |
| Engine capacity | 9726 | |
| Engine power (kw) | 247 | |
| Transmission | HW15710 | |
| Front axle | HF9 | |
| Driving axle | HC16 | |
| G.R.V.W (Kg) | 25000 | |
| Tare Weight (Kg) | 12250 | |
| Loading Capacity (Kg) | 12620 | |
| Max. Speed (Km/h) | 75 | |
| Brakes | Air braking | |
| Tyres | 12:00-20 | |
| Cab | HW76 | |
| Outline Dimension (mm): | 8145 (L) x 2496 (W) x 3170 (H) | |
| Wheelbase (mm) | 3625+1350 | |
| Front axle load (kg) | 7000 | |
| Rear axle load (kg) | 18000 | |
| BOX SPECS | Dimension of cargo box (mm) | 5400 (L) x 2300 (W) x 1450(H) |
| Lift system | “F” style ,middle lift | |
| Thickness of bottom plate(mm) | :8mm | |
| Thickness of side plate: | 6mm | |
| Loading capacity of cargo box (m3) | 18M3 |
1. Why you choose us?
CIMC RUIJIANG is a special vehicle manufacturer that belongs to CIMC group .We have more than 10 years produce experience.And our company produces at least 300 varieties of special vehicles of more than 10 series.
2. How to trust us?
Following the business philosophy of our company which is“your partner for modern transportation”,the sales network of CIMC RUIJIANG has been covering China mainland and global markets including Asia, Africa, South America, East Europe, etc. and welcome visits our company at any time.
3. How about the delivery time?
Most of our trucks are all have in stock ,We can delivery to you within 7 days, if specially ordered , we always need around 30 days for production.
4.How do you ensure the quality of product?
Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
