Specifications
1.underground electrical armoured cable
2.Certificates:BV ISO CQC
3.High quality
4.Short delivery
5.Best price

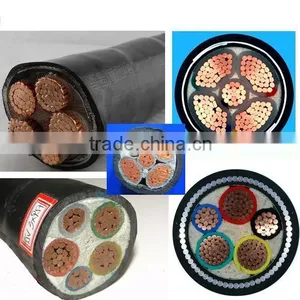

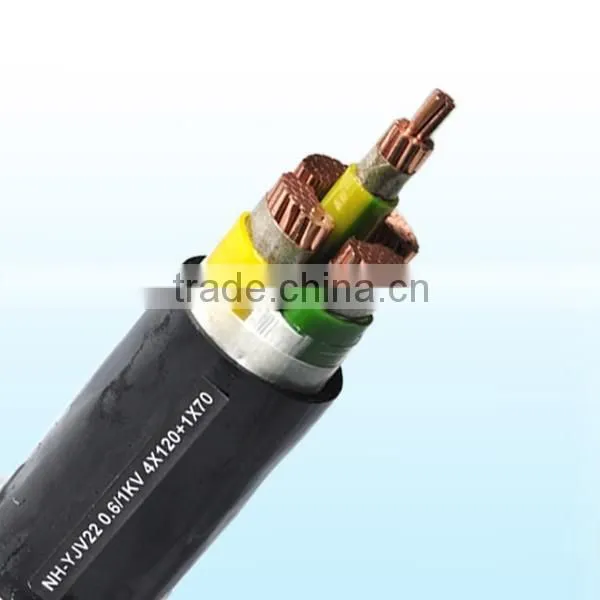

4 core underground electrical armoured cable power cable 25mm 35mm 50mm 70mm 95mm 120mm 185mm 240mm 300mm power cable
2. Voltage :
up to 35KV
3. Specification:
Type |
Designation |
Application |
VV |
Copper conductor ,PVC insulated ,PVC sheathed power cable |
For laying indoors, in tunnel or cable trench,unable to bear extermal mechanical forces. Single core cable is not permissible to lay in magnetic duct |
VLV |
Aluminium conductor ,PVC insulated ,PVC sheathed power cable |
|
VY |
Copper conductor, PVC insulated, PE sheathed power cable |
|
VLY |
Aluminium conductor ,PVC insulated ,PE sheathed power cable |
|
VV22 |
Copper conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable |
For laying indoors, in cable trench or direct in ground ,able to bear external mechanical forces, but unable to bear pulling force |
VLV22 |
Aluminium conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable |
|
VV23 |
Copper conductor ,PVC insualted ,steel tape armoured ,PE sheathed power cable |
|
VLV23 |
Alunminium conductor ,PVC insulated ,steel tape armoured ,PE sheathed power cable |
|
VV32 |
Copper conductor, PVC insulated, steel wire armoured,PVC insulated power cable
|
For laying indoors, in cable or direct in ground ,able to bear external mechanical forces, but unable to bear large pulling forces |
VLV32 |
Aluminium conductor, PVC insulated ,steel tape armoured ,PVC sheathed power cable |
|
VV33 |
Copper conductor, PVC insulated steel wire armoured , PE sheathed power cable |
|
VLV33 |
Aluminium conductor , PVC insulated , streel wire armoured ,PE sheathed power cable |
|
Note: The armoured single core cables is only used for D.C.system. As for A.C.system,non-magnetic armored material should be applied | ||
4. Nominal Cross-sectional Areas:
1.5 mm2 , 2.5 mm2 ,4 mm2 , 6 mm2 , 10 mm2 , 16 mm2 ,25 mm2 , 35 mm2 , 50 mm2 ,70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 ,240 mm2 ,300 mm2 400 mm2 500 mm2 630 mm2 800 mm2
5. Production Range:
single core cable from 1.5 mm2 to 800 mm2,muli-core cable from 1.5 mm2 to 400 mm2
6. Operating Characteristics:
Rated power-frequency voltage u0/u:0.6/1 KV
Max permissible continuous operating temperature of conductor 70
Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration): cross-section of conductor 300 mm2
The ambient temperature under installations should not be below 0
The bending radius of single core cable should not be less than 20 times of the cable diameter ,the bending radius of multi-core cable should not be less than 15 times of the cable diameter.
We also can manufacture many other specifications, if you have interest, welcome your enquiry! Everything we do is trying to make your business more successful.
Low voltage type xlpe insulated power cable swa armoured cable 4x70mm
Low voltage type xlpe insulated power cable sta armoured cable 4x120mm
Medium voltage type copper conductor material xlpe insulated power cable
Packing by wooden case or according to customer requirement
The advantages of our company:
1) Our company is a professional supplier of various kinds of cables for over 15 years.
2) The quality of our products are guaranteed. They are all with CCC, CE, CB and RoHS certificates.
3) The price is averagely 10%~20% lower than the other competitors. Because our factory is located
in a small town. The labor and raw materials cost are relatively low there.
4) Huge inventory allows us to ship your order immediately
5) Our employees are all capable and professinal. They can offer you the Prompt Courteous Service.
6) We ship worldwide.
.We mainly produce AAC, AAAC, ACSR, PVC Insulated Cables, XLPE Insulated Cables, Aerial Bundled Cables (ABC), Control Cables,Rubber Cables and Flameretardant & Fire-resistive series Cables etc.
We have ISO9001:2008 and CCC certification and can produce cables & wires according to the standards of CNS (GB), IEC, ASTM, BS, DIN and ASTM etc. Besides, we can also produce and supply cables as per customer's requirements and drawings.
We warmly welcome friends throughout the world!
Why you choose us as your gold supplier?
1) Your inquiry will be replied to within the hour
2) Your label design according to your requirements ready in 2days
3) 20 years OEM/ODM experience
4) Goods are sold with rerun or refund guarantee due to quality issue!
5) prompt shipment by reputed shipping line and professional documents
6) cargoes photo before and after loading into container after shipment with e-mail
