Specifications
Multi-media teaching equipment combined with PC,louder spearker, visualizer, wireless mouse and keyboard, wireless micorphone
Introduction:

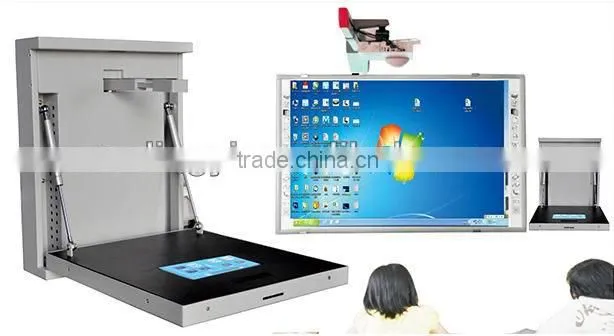

Multi-media teaching machine is combined from computer,wireless mouse, wireless keyboard,Visual presenter,Hi-fi speaker,wireless microphone. It is a high performance machine, equipped with computer, wireless mouse, wireless keyboard,Visual presenter,Hi-fi speaker,wireless microphone.
Specifications:
| Part | Item | Description |
| Touch control | Display screen | 5.6 inch TFT LCD |
| Resolution | 640x480 | |
| Color | 64K | |
| Monitor | Touch screen | |
| Memory | 128M flash ROM + 128M DDR | |
| Interface | COM *1 | |
| Product size | 1250mmx320mmx75mm | |
| Central control | Master Control type | Microcomputer embedded control systems |
| Commend Response cycles | 1/12 uS | |
| System cycles | 30 mS | |
| System working voltage | 4.1V ~ 5.5V | |
| Whole machine working voltage | 220V ± 10V | |
| PC | Main board | Mini Intel industrial PC board |
| CPU | 17W low power consumption | |
| Internal memory | 4GB DDR3 | |
| Hard disk | 64G SSD | |
| Keyboard mouse kit | Standard wireless keyboard and mouse kit | |
| Interface | USB | 6 (on top) |
| VGA | 1 (on top) | |
| Antenna | 2 (on top) | |
| SD | 1 (on top) | |
| Audio | 2 ( 1 on top & 1 on side) | |
| HDMI | 1 (on side) | |
| COM | 1 (on top | |
| RJ 45 | 1 (on top) | |
| TV | AV | 1 (on top) |
| RJ | 1 (on top) | |
| Output | HDMI | 1 (on top) |
| Audio | 1 (on top) | |
| Ac out | 1 (on top) |
| Part | Item | Description |
| Visualizer | Image resolution | 5 Mega pixels (2592x1944) |
| Shooting area | A4 | |
| Image format | JPG,TIF,BMP,PNG,PDF | |
| Video format | AVI | |
| Light compensation | LED lamps | |
| Image color depth | 24 bit | |
| Image sensor | CMOS | |
| Image control | Brightness, exposure, sharpness, color hue control, image cropping | |
| Control Panel | Display screen | 5.6inch TFT LCD |
| System on/off | 1 | |
| PC on/off | 1 | |
| Project on | 1 | |
| Project off | 1 | |
| Volume control | V+, V- | |
| Mute | 1 | |
| Mode change | 1 | |
| Internal PC | 1 | |
| Visualizer | 1 | |
| TV | / | |
| Interface specification | AC in | 100-240V, 50-60hz, 6A |
| AC out | 100-240V, 50-60hz, 3A | |
| Audio out | 2W | |
| HDMI in | 1080P, V1.3b | |
| COM1_ HMI | 2-RXD, 3-RTD, 5-SGND, 7VCC,8VCC,9-NGD | |
| COM2_Projector | 2-RXD, 3-RTD, 5-SGND, | |
| HDMI out | 1080P, V1.36b | |
| USB | 2.0 | |
| VGA in | ||
| 800X600 @60hz, 800X600 @75hz, 800X600 @85hz | ||
| 1024X768@ 60hz, 1024x768 @75hz, 1024x768 @85hz | ||
| 1280X720@ 60hz, 1280x768 @60hz, 1280x800@60hz,1280x960@60hz | ||
| Speaker power supply | 100-240V, 50-60hz, 1.5A | |
| Installation methold | Wall mounted | |
OEM order ,ODM order are welcome. We can develop, design, modify hardware and software spefications according to customer 's request
Warranty : Full inspection from incoming material, production lines to packing. Normally 1 year after sales. If you want to have longer time warranty, we can negotiate further.
Established in 2003, with 11 years development, Shenzhen Digital-Leader Technology become a Hi-tech technology enterprise, a member of China educational equipment association. ISO 9001:2008 AND ISO14001:2004 Verified, own product design patent, own application software copyright, own "DINGYI" and " XINGDINGYE" trademark, own 4000 square meters workshop building.
Sample lead time : 7 days
Normal mass production time : 15days
Price term: FOB Shenzhen or Hong Kong ,CIF destination
Shipping method : Air express, General Airline, By Sea
Certificates: CE/FCC/ROHS
