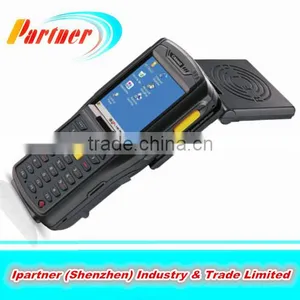

Handheld Biometric Computer With Fingerprint Reader,GPRS,barcode Scanner,RFID,GPS,WiFi,Camera
US$ 400 - 1,200
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock
Operating System:
Other, Windows Embedded CE 6.0 Pro or Windows Embedded CE 6.0 Core
Processor Type:
Other, freescale, for Samsung
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong kong Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GPS Handheld Pos Terminal PDA Data Collector Build-in PrinterUS$ 400 - 980MOQ: 5 Pieces -
Wifi, BT, RFID Reader Barcode Scanner Rugged PDAUS$ 400 - 1,200MOQ: 5 Pieces
-
China Manufacturer Payment Handheld Pos Terminal PDA Data Collector Build-in PrinterUS$ 400 - 980MOQ: 5 Pieces
-
For Windows CE 6.0 OS Rugged Handheld PDA Terminal Support Barcode Scanner,WIFI,BT,RFID ReaderUS$ 400 - 1,200MOQ: 5 Pieces
-
Handheld Pos Terminal PDA Data Collector Build-in PrinterUS$ 400 - 980MOQ: 5 Pieces
Products Status
Stock
Operating System
Other, Windows Embedded CE 6.0 Pro or Windows Embedded CE 6.0 Core
Processor Type
Other, freescale, for Samsung
Style
Handheld Computer
Memory Capacity
128MB
Screen Size
3.2"
Weight
350g
Brand Name
ipartner
Model Number
BT5600
Place of Origin
Guangdong, China
Color
Black
Handheld biometric computer with fingerprint reader,GPRS,barcode scanner,RFID,GPS,WiFi,Camera
1.Windows CE 6.0 OS Rugged Handheld PDA Terminal support Barcode scanner,WIFI,BT,RFID reader
2.Windows CE 6.0
3.GPRS/GSM,GPS
Products DetailS:
| CPU | Samsung ARM920T@533 MHz |
| Operating system | Windows Embedded CE 6.0 Pro or Windows Embedded CE 6.0 Core (optional) |
| Memory | 128 MB RAM/1 GB Flash |
| Expansion Memory | Expansion Memory |
| Screen | 3.2” QVGA backlight TFT-LCD, 65 K colors. 240 x 320 (QVGA size) |
| Key Pad | numeric, full alphanumeric (optional) |
| Input method | touch input and keyboard input |
| Expansion slots | SIM/SAM, Micro SD (TF) card |
| Programming environment | .NET and C++ programming using Microsoft Visual Studio 2005&2008 or higher |
| Software Development Kits (SDK) provided | |
| Interfaces | USB 2.0; RS232 |
| Fingerprint (Optional) | Sensor type- induction type |
| Function- fingerprint enrollment, process, acquisition, compare, delete etc. | |
| Performance- FRR < 0.1%; FAR < 0.001% | |
| Math time(1-1)- < 0.1 sec | |
| Math time(1-N)- < 0.5 sec | |
| 1D laser scanner (Optional) | Brand- Symbol SE955 |
| Types- UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, RSS | |
| 2D scan engine (Optional) | Brand- Symbol SE4500 |
| Types- 1D- all major codes; | |
| 2D- PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; etc. | |
| LF (Optional) | Operating frequency- 125 kHz, 134.2 kHz |
| Protocol- ISO11784, ISO11785 | |
| Read/write range up to- 3.15 in (8cm) | |
| HF (Optional) | Operating frequency- 13.56 MHz |
| Protocol- ISO14443A/B, 15693 (optional) | |
| Read/write range up to- 3.15 in (8 cm) | |
| UHF (Optional) | Operating frequency- |
| China- 920 ~ 925MHz | |
| Europe- 865 ~ 868MHz (ETSI EN 302 208) | |
| Other- 840 ~ 960MHz (for customization) | |
| Protocol- EPC, GEN2/ISO18000-6C | |
| Read range up to- 98.425 in (250 cm) | |
| Antenna- 3dBi | |
| Power- +10dBm ~ +30dBm | |
| Wireless WAN (Optional) | Network (WWAN)- EDGE/GPRS/GSM 900/1800 MHz; |
| 850/900/1800/1900 MHz (optional) ,GPS (Optional) | |
| Wireless | WiFi- muRata IEEE802.11b/g |
| Bluetooth- Class II, 3-5 M(Optional) | |
| Camera (Optional) | Samsung 3.2 mega pixels, 2048 (H)*1536 (V), QXGA |
| Language | Chinese(GB2312 or GB18030),English,French,German, Latin, Russian, Arabic |
| Battery | rechargeable li-ion polymer battery (3.7 V/4,000 mAh) |
| Operating temperature- -20 °C ~ 50 °C | |
| Storage temperature- -25 °C ~ 70 °C | |
| Humidity- 5% RH ~ 95% RH (non-condensing) | |
| Environmental | Dropping survive- 1.5-meter drop test on six sides (concrete floor, under operating temperature range) |
| Rolling survive- 1,000 times, 0.5 meter, rolling by six contact surfaces | |
| Environmental sealing- IP64 | |
| Dimension | 186.5*75*48 mm (L × W × H) |
| Weight | Weight- < 500 g (with battery) |
| Optional Accessories | Standard- battery, charger/adapter, data cables, stylus, hand strap, 4G micro SD (TF) card, protective film |
| Optional- cradle, thermal printer | |
| Refer to Accessories Appendix | |
| Thermal printer(external) | 113*82*48 mm |
| Communication- Bluetooth 2.0; RS232 | |
| Paper width- 48 mm | |
| Accessories- thermal paper, carrying case, power adapter, battery | |
Application Scenarios:
A, Ticket Verification (Barcode scanners) & Car Park Charging (POS terminals)
B, People Verification & Authentication (Fingerprint Sensors, ID Card Readers)
C, Driving License & Car Verification (Police Affairs Terminals)
Our Advantage:
Free SDK :
No special training required. Customers can also set up the handheld system in other languages
(beside Chinese & English).
Open API:
Free SDK, open software platform for secondary application development and customized programs.
Our Services:
1 |
Trade terms : |
FOB,FCA,EXW,CIF,CNF |
2 |
Payment way : |
T/T, West Union, Money Gram, L/C |
3 |
Payment condition : |
30% deposit in advance, 70% balance before delivery |
4 |
Shipping way : |
DHL, EMS, FEDEX,UPS |
5 |
Delivery time : |
Sample order after ensure the payment in 2- 5 days, |
Batch order could negotiate basic on quantity. | ||
6 |
Package : |
Neutral carton |
7 |
Warranty : |
1 year warranty for main device as well as 24 hours on line service to help you out. |
