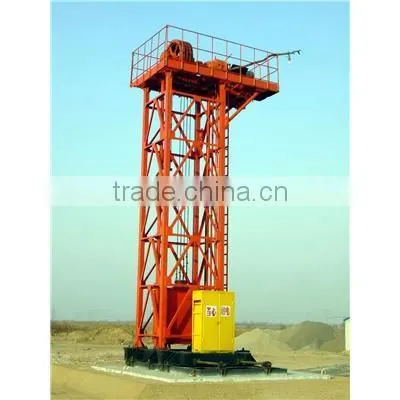

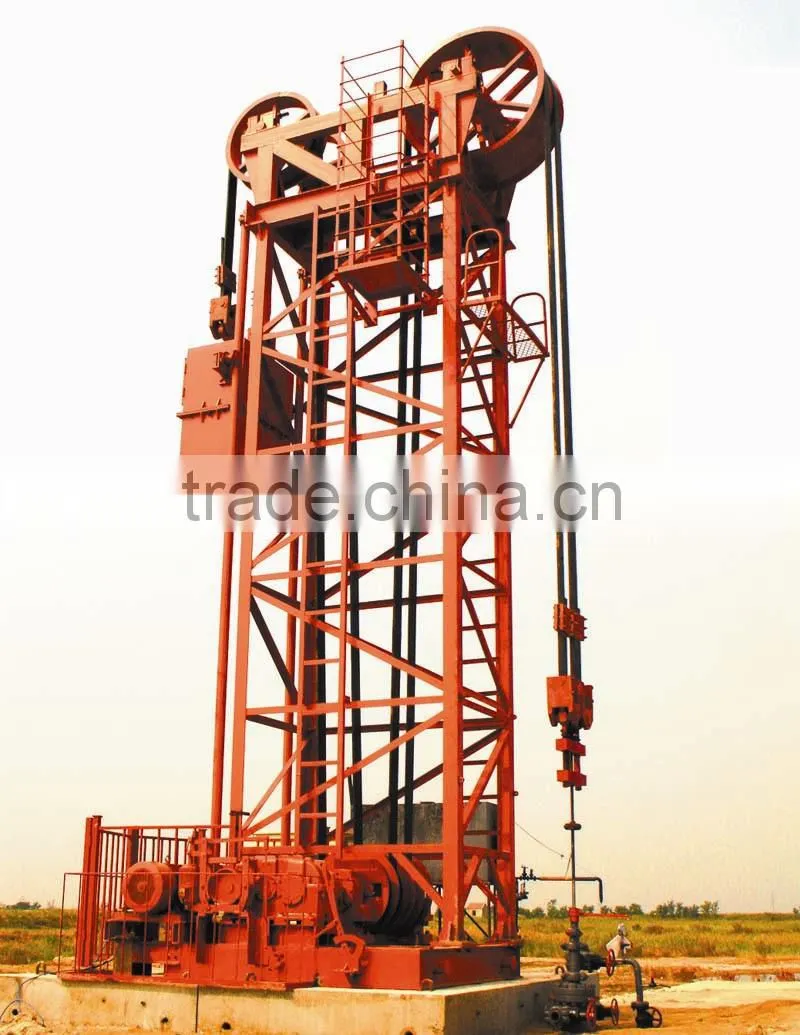

Motor reversing pumping unit
- Motor reversing pumping unit is a high efficiency and low energy consumption product.
- It employs the intelligent analog and digital control and uses the switched reluctance motor as the prime mover of which the power factor is cosΦ≈1.
- As the transmission of the friction wheel is the working mechanism the mechanical transmission line is short and the efficiency is high realizing the reversion of the motor.
- The starting reversion is stable with low impact.
- The stroke and stroke frequency can be regulated independently and steplessly.
- The velocity of the up stroke and down stroke of the polished rod can be controlled respectively.
- Its mechanical efficiency is about two times that of conventional beam pumping unit.
- Its system efficiency reaches to 50% and energy saving rate is about 46%. The product is an ideal pumping unit to replace conventional beam pumping unit.
Technical specifications
Model |
8 |
10 |
12 |
14 |
||
Max. rated load (100lb ) |
≤180 |
≤225 |
≤270 |
≤315 |
||
Stroke length (in) |
≤197 regulated steplessly |
≤287 regulated steplessly |
||||
Stroke per minute( SPM) |
≤6 regulated sleplessly |
≤5 regulated steplessly |
||||
Balance type |
Symmetry |
|||||
Reducer |
Type |
XW8215 |
XW8225 |
XW8245 |
XW8255 |
|
Max. torque (100in*lb) |
102 |
170 |
170 |
256 |
||
Finished drive ratio |
59 |
|||||
Motor |
Type |
L200 |
L200B |
Y255M-6 |
Y250M-6 |
L280 |
Rated power(hp) |
30 |
30 |
41 |
50 |
61 |
|
Rotate speed (r/min) |
1000 |
|||||
Total LWH (in) |
199×157×379 |
158×201×399 |
156×201×478 |
207×276×478 |
||
Total weight (lbs) |
7.94 |
8.106 |
12.5 |
13.5 |
14.1 |
|
Type of Pumping Units |
Model of Pumping Unit |
Standard |
|

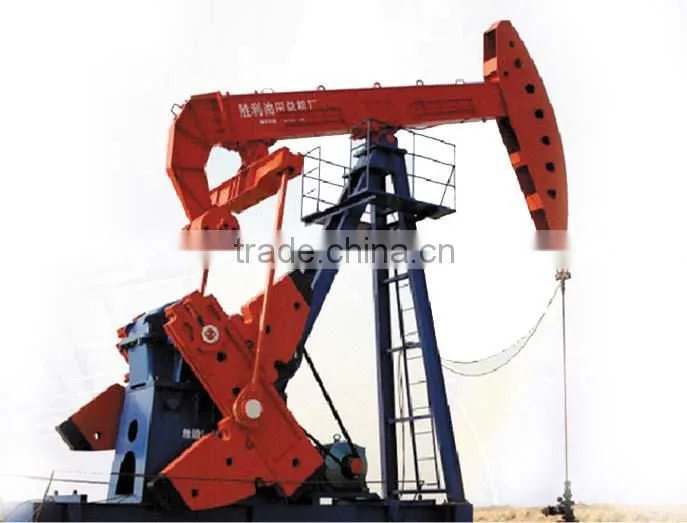

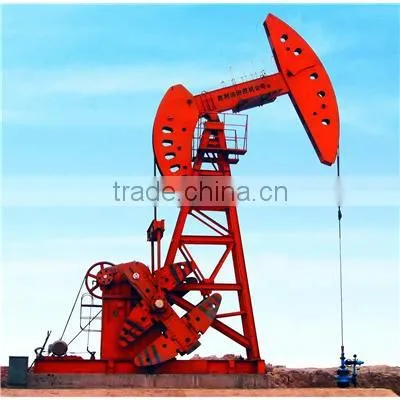

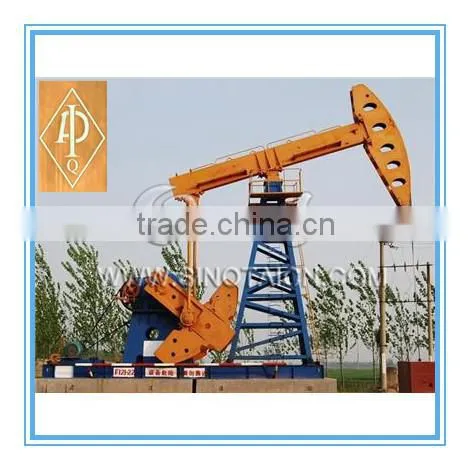

API conventional Beam Pumping unit
|
C80-C912 |
API Spec 11E |
|
Compound balanced pumping unit
|
Type 1012 14 16 |
SY/T 5044—2003 |
|
Double horse-head Pumping Unit
|
Type 6 8 10 12 |
|
|
Reactive Commutation Intelligent Pumping Unit
|
Type 10 12 14 |
Enterprise Standard |
|
Motor-reversing intelligent Pumping Unit
|
Type 8 10 12 14 |
