Specifications
1.good system2.superior technical parameters
3. various cooling speed
4. easy to operate and competitive price

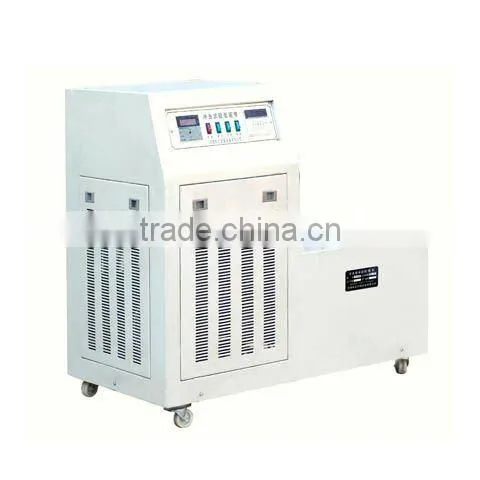

DWC Type Impact Testing cryostat
Wuxi Jiebo Electrical Technology Co.,Ltd, is a manufacturer on analytical instruments. We have been working in this market for over 15 years, enjoying a good feedback from our customers overseas.
DWC Series Impact Testing Cryostat
DWC Type Impact Testing Cryostat, is a kind of newly researched and manufactured compressor refrigeration equipment which is in accordance with GB/T229-1994 Standard. Also, it adopts cascade type compressor refrigeration technology, and uses heat balance principle and the method of circulating mixture., to meet the automatically symmetrical cooling&constant temperature of samples. It can satisfy all the temperature index as per country standards. Cryostat adopts singe-piece micro-control technology, and it is of temperature control, self-timing, self-alarming and other easy operations. Because of the high-speed cooling, big volume, high accuracy of temperature control, it is the most ideal device on specimen cooling&warming of metal materials.
1. DWC-30 Type Impact Testing Cryostat
Main technical parameters:
Temperature-control range: room temperature to -30°C
Accuracy of constant temperature: < 0.5°C
Cooling speed: +30°C~0°C about 1.8°C/min
0°C~-20°C about 0.8°C/min
-20°C~-30°C about 0.5°C/min
4. Maximum appearance size: 800×510×480 mm(Longth, Width, Hight)
5. Effective work space: 120×120×70 mm(Longth, Width, Hight)
6. Number of sampls: >60(impact specimen size:101055mm)
7. Digital Timepiece: 1s~99 minutes,resolution: 1s
8. Cooling Medium: ethanol or other immobile liquid
9. Mixing motor: 8W
10. Work Power: 220~240V, 1.0KW
2. DWC-60 Type Impact Testing Cryostat
Main technical parameters:
1.Temperature-control range: room temperature to -60°C
2. Accuracy of constant temperature: < 0.5°C
3. Cooling speed:
+30°C~0°C about 2.0°C/min
0°C~-20°C about 1.5°C/min
-20°C~-40°C about 1.0°C/min
-40°C~-60°C about 0.7°C/min
4. Maximum appearance size: 900×505×850 mm(Longth, Width, Hight)
5. Effective work space: 120×120×70 mm(Longth, Width, Hight
6. Number of sampls: >60(impact specimen size:101055mm)
7. Digital Timepiece: 1s~99 minutes,resolution: 1s
8. Cooling Medium: ethanol or other immobile liquid
9. Mixing motor: 8W
10. Work Power: 220~240V, 1.5KW
3,DWC-80 Type Impact Testing Cryostat
Main technical parameters:
1.Temperature-control range: room temperature to -85°C
2. Accuracy of constant temperature: < 0.5°C
3. Maximum appearance size: 900×510×850 mm(Longth, Width, Hight)
4. Effective work space: 120×120×70 mm(Longth, Width, Hight)
5. Number of sampls: 120 pieces (impact specimen size:101055mm)
6. Digital Timepiece: 1s~99 minutes,resolution: 1s
7. Digital display resolution: 0.1°C
8. Cooling Medium: ethanol or other immobile liquid
9. Mixing motor: 8W
10. Work Power: 220~240V, 2.0KW
11. In accordance to GB/T229-1994 requirements.
If you have any query or need any assisstance, plz feel free to contact me!
