DXCS1520 Ultrasonic Plastic Welder

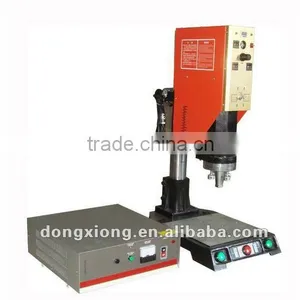

DXCS1520 Ultrasonic Plastic Welder thumbnail-1

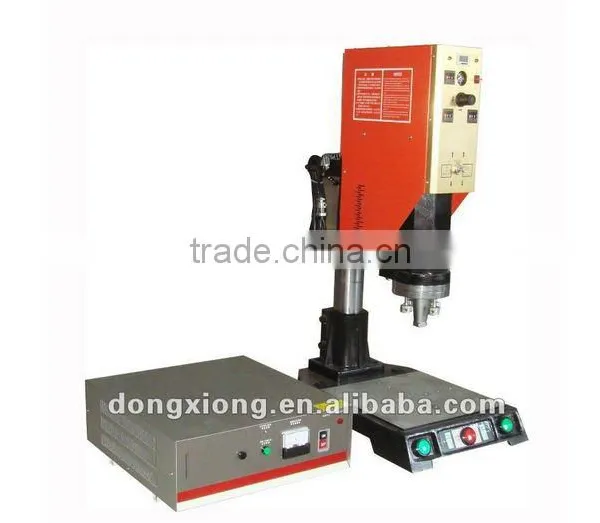

DXCS1520 Ultrasonic Plastic Welder photo-1
US$ 1 - 1 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DAVISON
Model Number:
DXCS1520
Contact Supplier Request Quote Chat Now
Ningbo Davison Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name DAVISON
Model Number DXCS1520
Voltage 220V
Power 1500W
Frequency 20khz
Welding Area 60mm
Weight 78kgs
Usage plastic welding
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Ultrasonic plastic welder
2.ABS,PP,PS ect weld.
3.Latest optimal circuit
4.high power out
5.Convenient & accurate

Feature:

1. Adopts high quality piezoelectric ceramics transducer, have a high and stable power output

2. The body is designed as the coaxial direct pressure to avoid backward bending, pressure

applying balanced to enhance welding precision

3. Digital welding parameters set-up is direct and accurate

4. Quick, convenient adjustment of die level

5. Three digits dip switch,0.01-9.99s precise time control

6. Main components or fittings are applied as top brands

7. Latest optimal circuit or transducer system, high power out



Technique specification:

Item No. DXCS1520
Power supply 220V
Input power 1.8KW
Output power 1.5KW
Frequency 20KHz
The moving distance of active horn 70mm
Oscillation system auto-stimulating
Output time  0.01-9.99S
Weld area 60mm
Main Body Length:    390mm
Width:       685mm
Height:   1,000mm
Plywood Box Packing Size Length:     720mm
Width:       820mm
Height:   1,220mm
0.7203CBM
N. W. 78.00 kgs
G. W. 100.00 kgs
Mini. Order 1 set



Principle of Ultrasonic Plastic Welder:

Ultrasonic plastic welders operated by inducing ultrasonic frequency in plastic components that is converted into heat between the welded plastic laminates.  Frictional heat is produced so that thermoplastic parts melt and an insoluble connection between parts is forged in a very short period of time. The melting points of both workpieces are nearly equivalent which helps to form a corresponding weld area. The welded area is usually as strong as the matrix material.



Application fields:

  Widely used in the automotive industry, electronic industry, medical industry, household appliances, woven apparel, office supplies, packaging industry, toy industry and so on.



  Such as plastic body parts, car doors, car dashboard, lights, mirror, sun visor, interior parts, filters, reflective material, reflective spike, bumper, cable, motorcycle plastic filter, radiator , tank, pallet plates.

 Plastic electronics: prepaid water  meters, communications equipment, atheism phone, mobile phone accessories, cell phone case, battery case, charger, maintenance valve regulated lead-acid batteries, 3-inch floppy disk, U disk, SD card, CF card, USB connectors, Bluetooth.

  Toys, stationery: folder, album, folding boxes, PP hollow board, pen loops, ink cartridges, toner cartridges.

  Medical Daily: watches, kitchen utensils, oral liquid bottle, drip caps, mobile phone accessories, gold soft brush, daily necessities, health supplies, children's products, air mattresses, clothes hangers,  tool holder, coffee pot, cover and Civil speaker grille metal surface.



DXCS1520 ultrasonic plastic welderDXCS1520 ultrasonic plastic welder
