TJQH-1000 Infrared Fully Automatic Bridge Type Edge Cutting Machine
US$ 18,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Granite
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bridge Type Edge Cutting Machine (saw Machine)NegotiableMOQ: 1 Set -
Manual Stone Tile Cutting MachineUS$ 5,600 - 6,000MOQ: 1 Set
-
LCHW-1200 Bridge Type Edge Cutting MachineUS$ 16,000 - 18,000MOQ: 1 Set
-
Automatic Infrared Fully Bridge Type Edge Cutting Machine,stone Cutting MachineUS$ 17,200 - 17,800MOQ: 1 Unit
-
2015 Stone Edge Cutting MachineUS$ 24,000 - 25,000MOQ: 1 Set
Condition
New
Type
Stone Cutting Machine
Use
Granite
Place of Origin
Fujian, China
Brand Name
TIANJUN
Model Number
TJQH-1000
Voltage
380V 50HZ 3PHASE
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
|
Infrared Fully Automatic machine, make macking for stone tiles
Automatic operation machine for making stone tiles, cutting in accuracy way, faster work.
Technical data | |||||||||
| Name | unit | TJQH-1000 | |||||||
| Blade diameter | mm | Φ600-Φ800-Φ1000 | |||||||
| Blade up/down stroke | mm | 400 | |||||||
| Main motor | kw | 18.5 | |||||||
| Feeding motor | kw | 1.5 | |||||||
| Slicing motor | kw | 1.1 | |||||||
| Worktable size (Max.cutting size) | mm | 3200X2000 | |||||||
| Worktable rotation angle(by hydraulic) | 90°or 360° | ||||||||
| Worktable upturning angle | 0°- 85° | ||||||||
| Dimension (LxWxH) | mm | 6300*4700*2800 | |||||||
| Voltage/Frequency | V/HZ | 380V/50HZ | |||||||
| Weight | kg | 6500 | |||||||

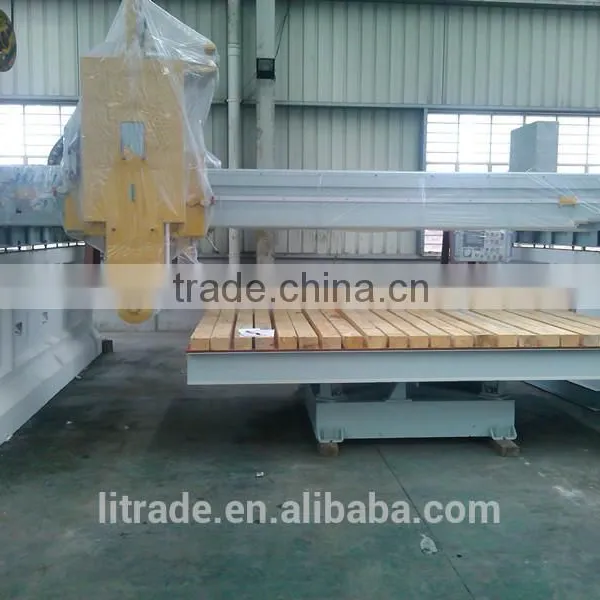

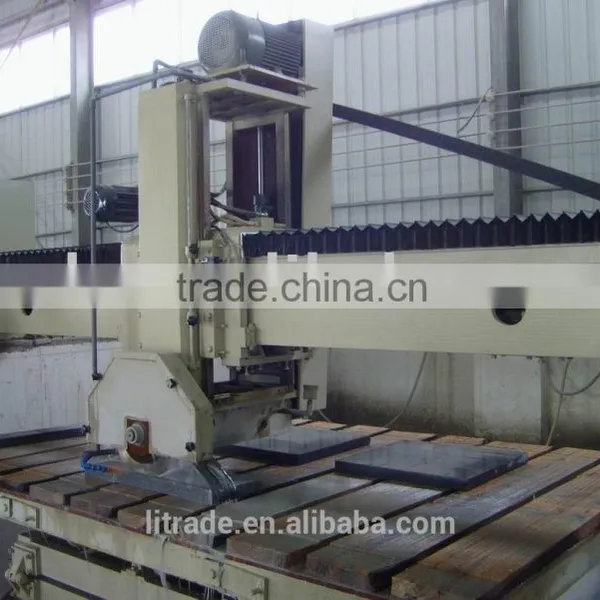

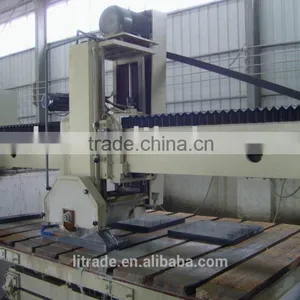

Stone edge cutting machine photos:
Diamond blades served.
QUALITY CONTROL:
STONE FAIR:
OUR COMPANY:
OUR CUSTOMERS COVER:
Contact US:
