Specifications

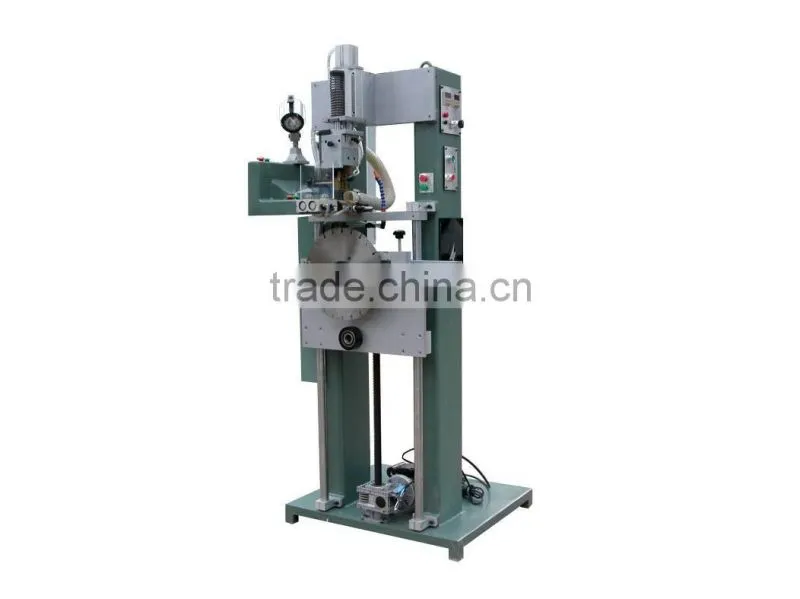

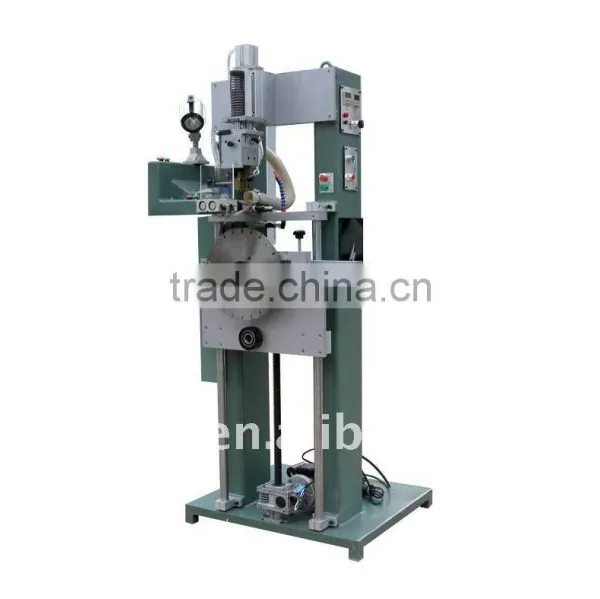

It can complete the high-frequency machine heating and rapid cooling, and clip the segment automatically.High-Frequency Diamond Blade Welding Frame
TJCZ series of diamond saw welding machine is a new type of diamond saw high-frequency welding auxiliary equipment. This series frame is the integration of mechanical and electrical system components. It can complete the high-frequency machine heating and rapid cooling, and clip the segment automatically.
The machine is consist of gas claws, pneumatic slider and other accessories. So it greatly enhance the welding accuracy and efficiency, and ensure the welding strength between the segment and the steel body.
Compared with similar products, This series of products with a high level of automation, targeting prospective, good stability, long life and other characteristics. Also which using human design and common workers can operate it easily.
| Model | 220-P | ||
| Brazing Diameter | mm | φ300-φ2300 | |
| Blade Symmetry tolerance | mm | ≤±0.04 | |
| Surface of segment tolerance | mm | ≤±0.04 | |
| Brazing Capacity | pc/h | 7-14 | |
| Air Pressure | mpa | 0.8 | |
| Hydraulic Pressure | mpa | ≥0.2 | |
| Power | w | 400 | |
| Water consumption | m3/h | 2 | |
| Machine weight | kg | 272 | |
| Trolley dimension | mm | 800×830×1700 | |
