TJBR Multi-function Polishing Machine
US$ 10,000 - 15,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TIANJUN
Model Number:
TJBR
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TJQC-Crane(5-50/10T)NegotiableMOQ: 1 Set -
TJ Four-claw Grinding Head,machine Part for Automatic Polishing MachineUS$ 990 - 1,290MOQ: 1 Unit
-
Construction Machinery,Horizontal Thin Plate Cutting Machine,stone MachineUS$ 5,500 - 7,500MOQ: 1 Set
-
TJ-150 Drilling MachineNegotiableMOQ: 1 Set
-
TJ45 Stone Automatic Turnover MachineUS$ 10,000 - 12,000MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
TIANJUN
Model Number
TJBR
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.arm rotation degree:3002.arm lifting stroke:470mm
3.spindle lifting stroke:150mm
4.rpm of spindle:600-3200rpm
5.5.5kw

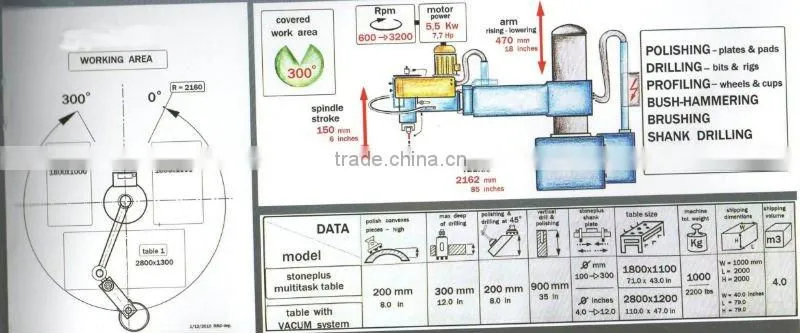

TJBR Multi-function polishing machine
| Multi | ||
| Arm rotation degree | ° | 300 |
| Arm lifting stroke | mm | 470 |
| Spindle lifting stroke | mm | 150 |
| Rpm of spindle | rpm | 600-3200 |
| Main motor power | kw | 5.5 |
| Working with the “Multi” table | |||
| Height of convex pieces when polishing | mm | 200 | |
| Max. deep of drilling | mm | 300 | |
| Height of stone when polishing & drilling at 45° | mm | 200 | |
| Height of stone when drilling & polishing vertically | mm | 900 | |
| Size of shank drilling | mm | 100-300 | |
| Size of table | 1800/1100 | ||
| 2800/1200 | |||
QUALITY CONTROL:
STONE FAIR:
OUR COMPANY:
OUR CUSTOMERS COVER:
Contact US:
We are the total solution supplier of stone machines and tools. For more product, please check our company webwite: .
