Help CenterStone High Pressure Water Jet Cutting Machine, Good Quality Water Jet
Related Products
-
TJ40HD-2515 High Pressure Water Jet Cutting MachineryUS$ 40,000 - 45,000MOQ: 1 Set -
High Pressure Cnc Water Jet MachinesUS$ 40,000 - 45,000MOQ: 1 Set
-
Stone Cutting Water Jet Cnc MachinesUS$ 40,000 - 45,000MOQ: 1 Set
-
High Pressure Stone Cutting Waterjet MachinesUS$ 40,000 - 45,000MOQ: 1 Set
-
Waterjet Cutter for Cutting Granite and MarbleUS$ 40,000 - 45,000MOQ: 1 Set

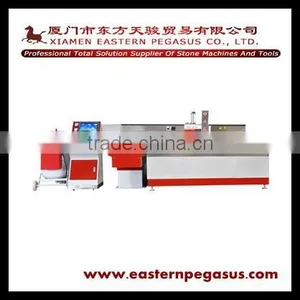

TJ40HD-2515 TYPE Super-high Pressure Water Jet Cutting Equipment, CE
With high pressure pump, original USA ACC INTENSIFIER. Cutting more accuracy and stable performance. Many sizes offered.
1600*1500mm, 2000*3000mm, 2000*4000mm ect.
Water jet machine is suitable to cut many different materials, such as stone, metal, glass ect.
Worktable size can be custom-made.
Water Jet Machine technical datas
| Model | TJ40HD-2515 | |
| Max. Working Pressure | MPa | 380 |
| Working Pressure | MPa | 0~350 |
| Max. Flow Rate | L/min | 3 |
| Diameter Of Orifice | mm | 0.28~0.30 |
| Nozzle Size | mm | 0.8~1.0 |
| Main Motor Power | kW | 30 |
| Biggest Cutting Range | mm | 1500*2500 |
| Cutting Accuracy | mm | ±0.1 |
| Repeat Positioning Accuracy | mm | ±0.01 |
| Control Accuracy | mm | ±0.01 |
| Rapid Positioning Speed | mm/min | 8000 |
| Travel Knife Rest | mm | 150 |
| Worktable Type | Cantilever | |
| Working Motor Type | YASKAWA Servo Motor | |
| Abrasive | Garnet | |
| Control System | 3-axis-linkage System(5-axis-linkage Optional) | |
| Way of Direction-changing | Electronic Direction-changing |
Water Jet Machie material parts details:
Water Jet Machine packaging photos:
Water jet final products can be: Marble, Granite, Metal ect.
QUALITY CONTROL:
We can ensure to offer you the good quality products in very reasonable and competitive price, also the full service all the time.
STONE FAIR:
We have attended the stone fair in different countries, such as Russia, Egypt, Brazil, Vietnam, Turkey, India, etc. And you can always find our booth in Xiamen Stone Fair. Welcome to come and visit our company anytime.
OUR CUSTOMERS COVER:
Thanks to the recognition and support of our customers, we have exported products to more than 65 different countries till now, and the number is increasing year by year.
OUR COMPANY:
We are located in the beautiful city, Xiamen, China. Established in March, 2006.
Contact US:
Please feel free to contact us if you get any question or new inquiry,
Also welcome to come and visit our company anytime for further business discussion!
