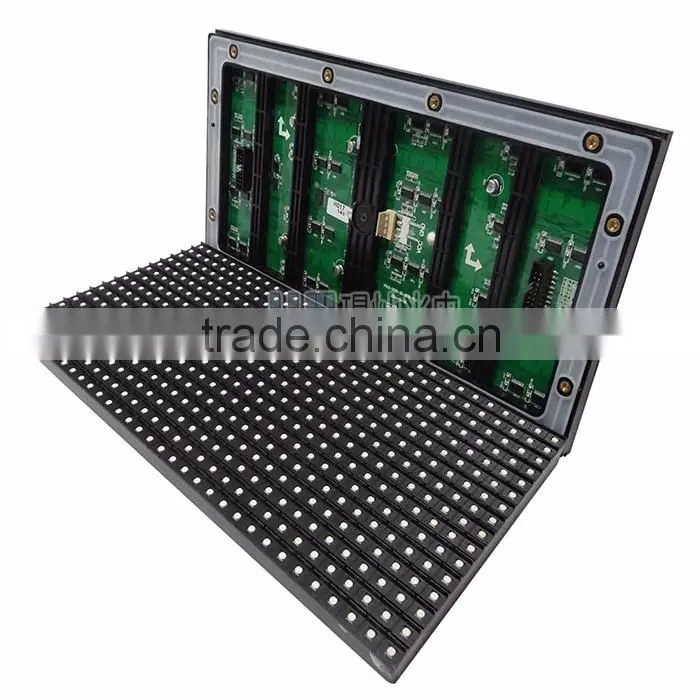

p10 outdoor led display module for led panel led message sign board
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for your specific usage.
High Quality
Our company has made researches on various outdoor circumstances, and applied the research
achievements to design systems, so as to obviously improve both the flexibility and reliability of our
products in various bad circumstances outdoors.
Rich colors
with three basic colors (red, green and blue) to form the unit boxes, 256-level gradation of red,
green and blue form 16777216 kinds of colors, making the electronic displays showing rich colors,
high saturation, and high resolution, and also enabling them to show high frequency dynamic images.
High brightness
The products adopt super-high brightness LED, so that you can see clearly from a long distance even
in strong sunshine.
Good effect
The products adopt non-linear calibration technology to realize clearer images with stronger feeling
of layers.
High reliability
The products adopt the static scanning technology and the module design technology to offer higher
reliability and stability.
Easy operation
The products adopt popular video playing software to facilitate system operations.
Diversified display modes
The products support multiple display modes.
Available range
Government plazas, recreational plazas, large-scale entertainment plazas, busy business and
commercial centers, ad information boards, commercial streets, and railway stations etc..
| Outdoor Advertising P10 SMD LED Display | ||
| 1 | Pixel Configuration | 1R1G1B |
| 2 | Physics Distance Between Pixels | 10mm |
| 3 | Physics Pixel Density | 10,000 Pixel/m2 |

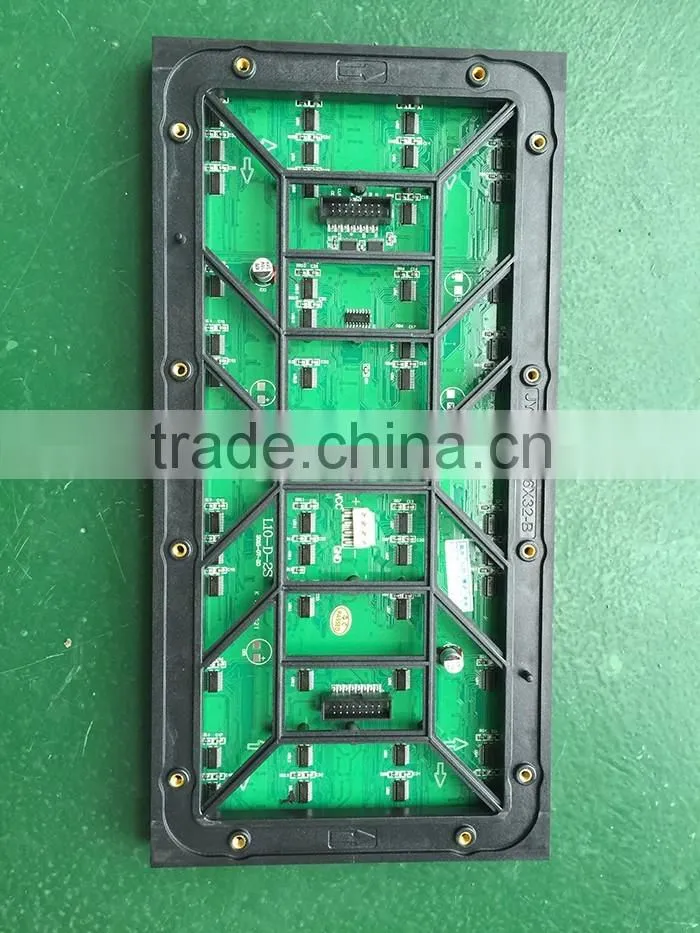

| 4 | Module Size (W x H) | 320mmx160mm |
| 5 | Physics Pixel / Module | 32x16 |

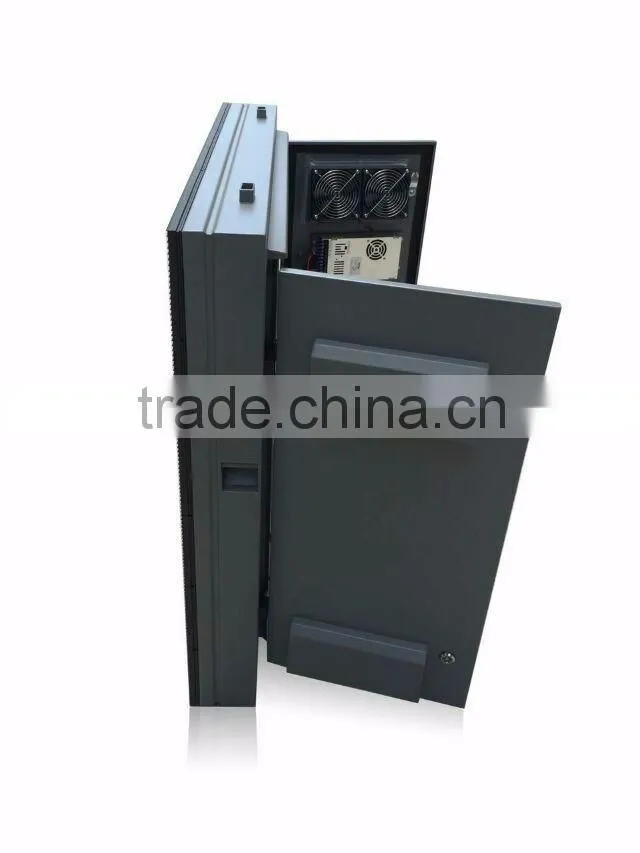

| 6 | Cabinet Size (W x H x T) | 960mmx960mmx150mm |
| 7 | Physics Pixel / Cabinet | 96x96 |
| 8 | Cabinet Weight | 42kg |
| 9 | Cabinet Material | Cold Rolled Steel |
| 11 | Brightness | >5000cd/m2 |
| 12 | Viewing Distance | >10m |
| 13 | Power Consumption (W/m2) | MAX 1000; Average 300 |
| 14 | Driver Mode | 1/4 scan |
| 15 | Led Life | 100,000 hours |
| 16 | Supply Voltage | AC220V/50HZ; AC110V/60HZ |
| 17 | Operating Temperature | -40ºC~+60ºC |
| 18 | Operating Humidity | 10%-90% |
| 19 | Storage Temperature | -45ºC~+65ºC |
| 20 | Viewing Angle | Horizontal:120°; Vertical: 120° |
| 21 | Grey Scale | Red, green, blue each 16k |
| 22 | Display Colors | 4096 Billion |
| 23 | Refresh Rate | 300HZ-3000HZ adjustable |
| 24 | IP Rating | Front IP65 waterproof dust-proof |
| 25 | Display Capability |
Video, Graphic, Text, flash |
1. Pre-sales service:
a) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
b) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection.
2. After-sales service:
a) Service principles: response in time, solve problems as soon as possible and ensure the use.
b) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
c) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
d) Under normal use and storage, Our Company will be responsible for the equipments.
Repair Service for LED Display Lifelong time
