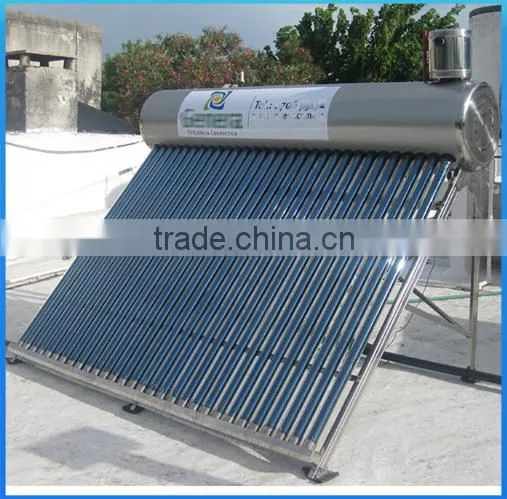

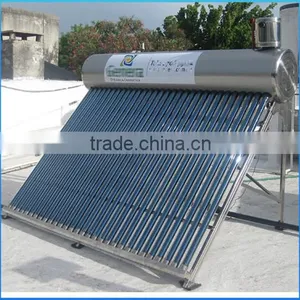

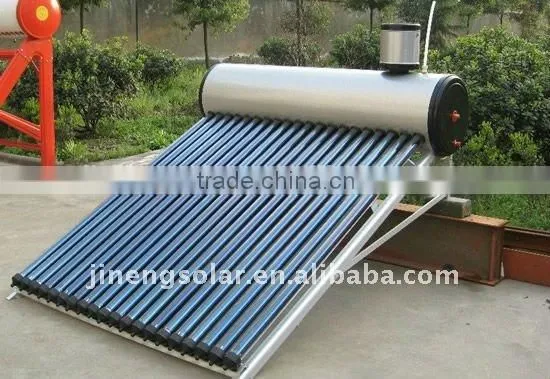

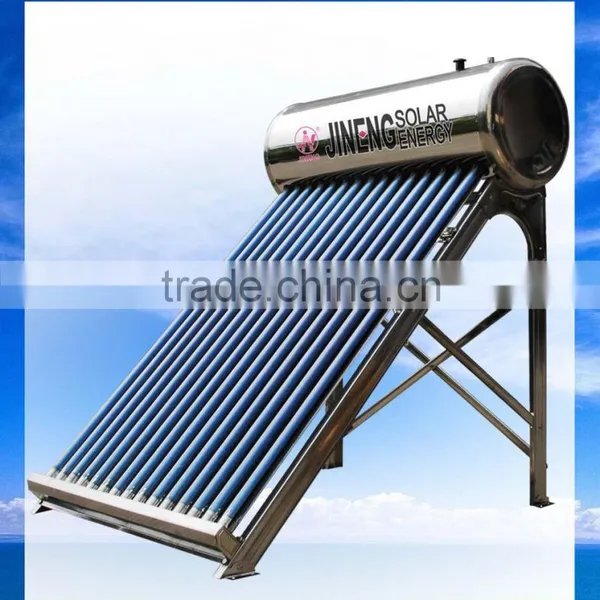

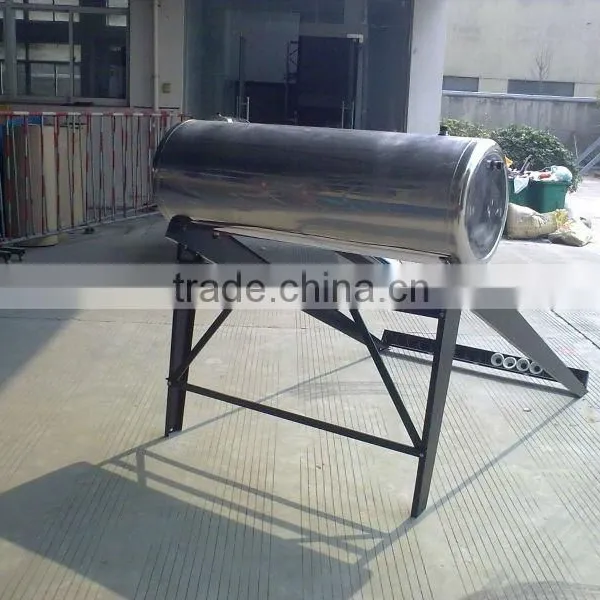

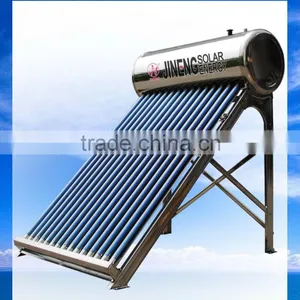

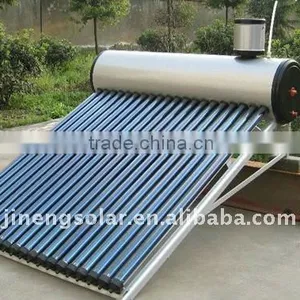

80-360 Liter High Quality Assuared Non-Pressurized Stainless Steel Solar Water Heater
1. Working pricinple:
Non pressure solar water heater whose full name is directly inserting type full glass vaccum tube solar water heater,can't bear pressure due to the O-ring seal between vaccum tube and water tank. It is the most economical type of solar systems for hot water application.This solar water heater should be used in the non pressure situation, and it relies on the natural circulation of water between the tube and the tank. There are inlet/outlet pipe and overflow pipe under the tank. If the tank is filled with water,the water will flow through the overflow pipe and warming messege is sent, also, the water feeding valve needs to be turned off. When using this product, the hot water will flow through the inlet/outlet pipe because of the gravity effect, and at this time, the overflow pipe is mainly used to supply air. There is water in the vaccum tube, thus the water inthe tank will spill out under the condition that one tube is broken. In addition, electric heater can be installed to guarantee the hot water supply when it is rainy or cloudy.
2. Detail specification:
| Model | JNNP | OEM offered | YES |
| Inner tank material | 0.4-0.8mm SUS3042B/316L | Test pressure | 50KPa |
| Outer tank material | 0.4mm stainless steel | Hail resistance | 25mm |
| Outer tank diameter | 420/460/470/480mm | Coating material | ALN-SUS-CU/AL-AL-AL |
| Insulation layer | 50-60mm | Heat preservation | 72 hours |
| Frame | stainless steel/ galvanized steel/aluminum alloy | Suitable for no. persons | 3~5 |
| Frame angle | 27/30/ 45 degrees | Applicable to | residential |
| Inner tank Welding | Argon arc welding | Optional accesories | Electric heater, magnesium bar, controller |

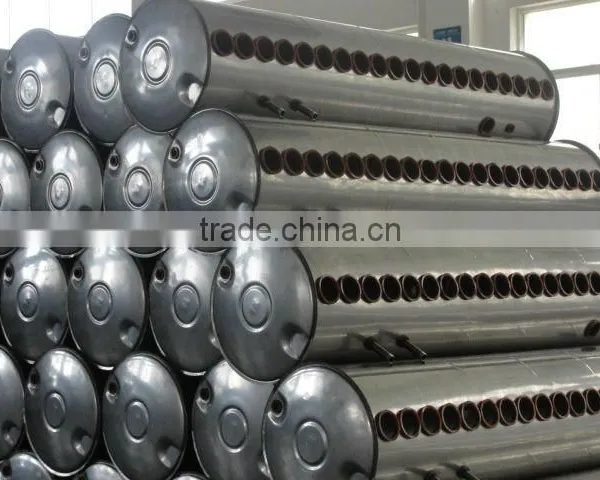

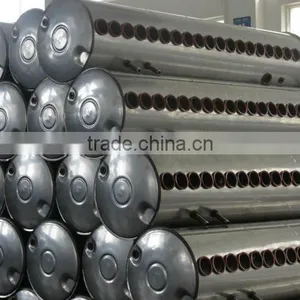

3. Making Process:
4. Packing

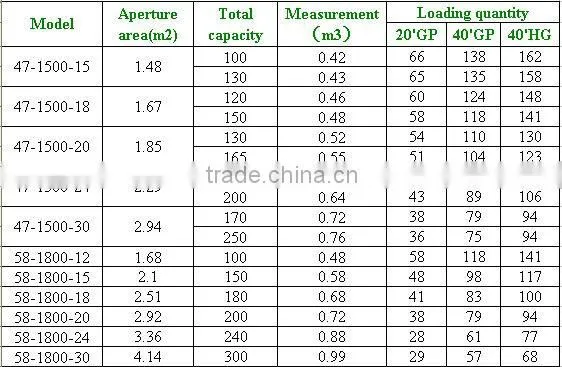

5.Packing information:
6. Optional accesories display:
7. common troubles and shooting methods
Phenomena |
Cause Analysis |
Methods |
|
Cold water on sunny day
|
1. There is something above water tank or dense smog or stained 2. The inlet valve fasten incompletely and cold water take the place of hot water in tank |
1. Remove the hinder or install another place |
|
Fail to fill water fully
|
1. Low pressure of running water |
1. Install a small water pump |
Leakage from the tank |
1. Broken of seal or water tank installed incorrectly |
1. Exchange a new seal or adjust the water tank |
Unstable water temperature |
Unstable pressure of running water |
Adding an assistant tank that can store water, stable the pressure and mix cold water or using a thermostatic valve |
Failed to get hot water in winter |
1. Frozen of inlet or outlet pipe |
1. Asking for help from supplier |
8. service:
1. We offer customers 5 years for whole solar systems;
2. Carton design for customs is free offered when goods sent by container
3. When you have any questions regarding our products, feel free to contact us. We will be very glad to service for you.
SOLAR MAKES LIFE BETTER!
