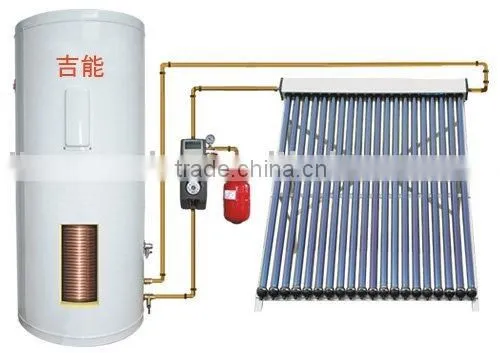

Help CenterSeparated Evacuated Solar Water Heater
Related Products
-
Split Pressurised Solar Water HeaterUS$ 530 - 1,600MOQ: 1 Set -
Heat Pipe Split Type Solar Water Heating SystemUS$ 500 - 2,000MOQ: 1 Set
-
Split Pressurised Solar Water HeaterUS$ 550 - 1,600MOQ: 1 Set
-
Separated Pessurised Solar Water HeaterUS$ 520 - 1,600MOQ: 1 Set
-
Seperated Solar Water HeaterUS$ 550 - 1,600MOQ: 1 Set
Features:
1. Vacuum tubes: Common tubes or Three-high tubes , with heat pipe in it.
2. Outer tank: Steel plate , thickness: 0.326mm.
3. Inner tank (copper coils in it) : food grade stainless steel SUS304-2B, thickness: 1.2 to 1.5mm
4. Tank capacity: 100L to 500L.
5. Pressure bearing: 0.6 Mpa,.
6. Insulation layer: Polyurethane foam , thickness: 50mm to 60mm
7. Support: Galvanized plate or stainless steel, thickness: 1.2mm to 1.5mm
8. Heat preservation: 72 to 80 hours
9. Hail resistance: 25mm..
10. Cold resistance: -35-40 degree.
Separated Pressure Solar Water Heater Specification :
1. Copper heat pipes for rapid heat transfer
2. Easy plug-in installation ...
3. Maintenance Free .
4. Suitable for mains pressure water (up to 8 bar/116psi)
5. Corrosion resistant silver brazed copper header .
6. All stainless steel frame (304 2B grade SS)
7. Powder coated (black, brown or silver) aluminum casing
8. Stable solar conversion throughout the day (tubes passively track the sun)
9. The perfect solar collector for domestic solar water heater systems
10. Ideal for commercial solar water heating applications
| Jineng Separated Pressurised Solar Water Heater | |
| Inner Tank: | 1.2-1.5mm food grade SUS3042B |
| Inner Tank diameter: | 340/360/380mm |
| Outer Tank: | 0.4mm stainless steel or painted steel |
| Outer Tank diameter: | 470/480/500/520mm |
| Collector channel | Cu pipe |
| Frame: | 1.5mm alluminum alloy |
| Vacuum Tube: | High Borosilicate 3.3 |
| Tube Dimension | 58mm×1.8m / 47mm×1.5m |
| Working Pressure: | 0.6Mpa |
| Tube Qty.: | 12/15/18/20/24/30 tubes |
| Heat Insulation Layer: | 50-60mm Polyurethane Foam |
| Installation: | anywhere in the building |
| Heat preservation: | 72 to 80 Hours |
| Absorptance: | >94% |
| Hail resistance: | 25mm |
| Tank Capacity: | 100L-500L |
