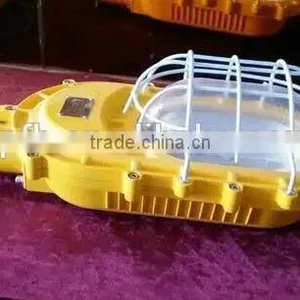

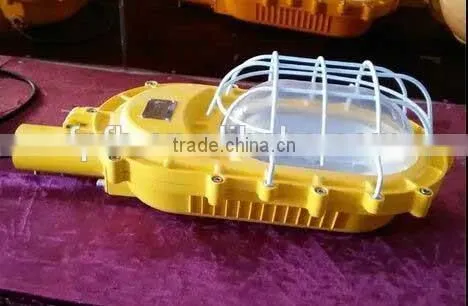

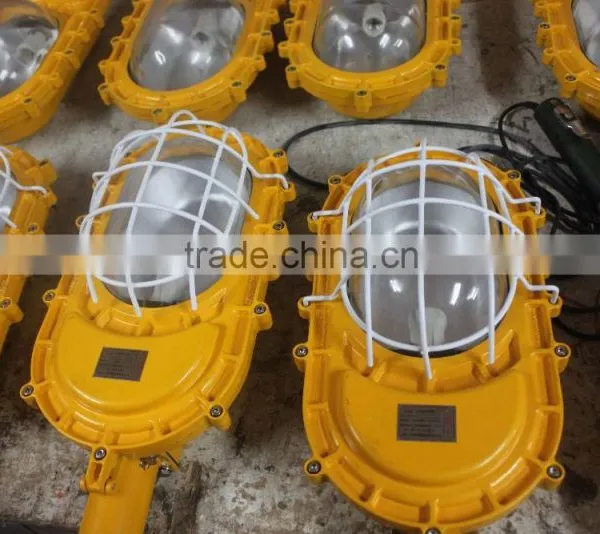

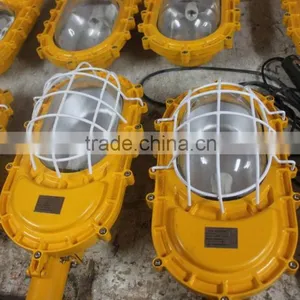

BFC8120 Explosion proof floodlight with strong light in field (IIIC DIP)
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category II A and II B where the temperature classification is T1-T6.
3. Hazardous zone : 20. 21. and 22
4. Flammable dust atmosphere.
5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
6.The case is die-casted of aluminum alloy, surface plastic-sprayed on high-pressure electrostatic technique. Stainless steel fasteners.

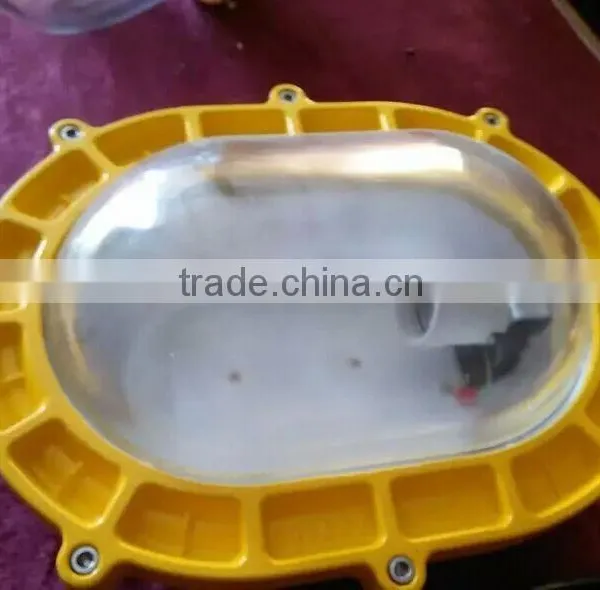

7. High impact resistance tempered glass cover, with anti-dazzle design.
8. Seal gasket is made of heat resistant and anti-aging silicone rubber, with good features of water and dust proof.
Voltage |
Inlet thread |
Ex-mark |
Degree of protection |
Erosionproofclass |
cableouterline |
AC220V |
G3/4" |
Exd II BT4 Gb , DIP A21 TA,T4 |
IP65 IP66 |
WF1 WF2 |
Φ 9- Φ 14MM |
APPLICATION:
- Pieces suitable for explosive gas environment 1zone and 2 zone.
- Pieces suitabel for IIA IIB IIC explosive gas environment
- This product in hazardous: zone20 zone21 zone22
- Should apply to the temperature group for T1-T4(T6) environment
- Designed for petroleum exploitation, refinery,storage,chemistry,medicine military and military facilities etc. sites with potential explosive atmosphere.
TECHNICAL PARAMETERS:
- Meet a criterion:GB3836.1 GB3836.2 GB3836.3 GB12476.1 IEC60079-0 IEC60079-1 IEC60079-7 EN60079-0 EN60079-7
- Explosion proof mark:Exd II BT4 Gb DIP A21 TA T4
- Rated voltage:AC220V
- Lamp power:N70 N100 N110 L35 L70 N100 N150 G80 G125
- Emergency power:L70
- Charging time:24H
- Discharge time:90MIN
- Protection grade:IP65 IP66
- Explosion proof grade:WF1 WF2
- Inlet thread:G3/4"
- Cable outer dia:9mm-14mm
FEATURES:
- The case is die-casted of aluminum alloy ,surface plastic-sprayed on high pressure electrostatic technique. Stainless steel fasters.
- High impact resistance tempered glass cover,with anti-dazzle design.
- Seal gasket is made of heat resistant and anti-aging silicone rubber,with good futures of water and dust proof.
- Ballast ,ignator and lamps integrated.
- Cable connection or pipe cabling.
Feipu Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
We have wide range explosion proof products of lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.
Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
Dear Customers,
Welcome to visit FPFB online marketing display.
To serve you in a better and efficient way, please browse our products and contact us with following information.
1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?
2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.
3. Your preference on light source, power and installation methods etc.
We will offer our best products and prices according to your actual demand.
Sincerely yours,
FPFB sales team.
1. What is our advantage in the industry?
Our main advantage is high performance price ratio of our products, and positive service to our customers and partners.
Our products are not the top grade of quality in the industry, and our prices are not the lowest as well, but the performance price ratio of our products is outstanding.
2. What is our sales and distribution policy?
We welcome all kinds of business cooperation methods, including region distributors, new market agencies, project & bid buyers, and end user procurement.
3. Do you have warranty policy?
We offer at least 2 year-warranty for our products, longer warranty for certian products, and full lifespan aftersales service.
1. Standard export packing or customized packing available.
2. Shipping arrangement according to buyers request.
