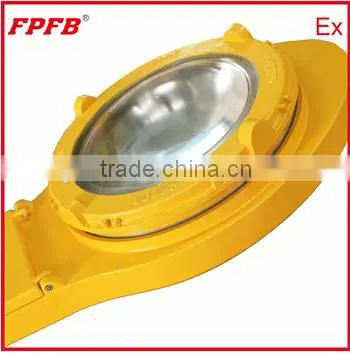

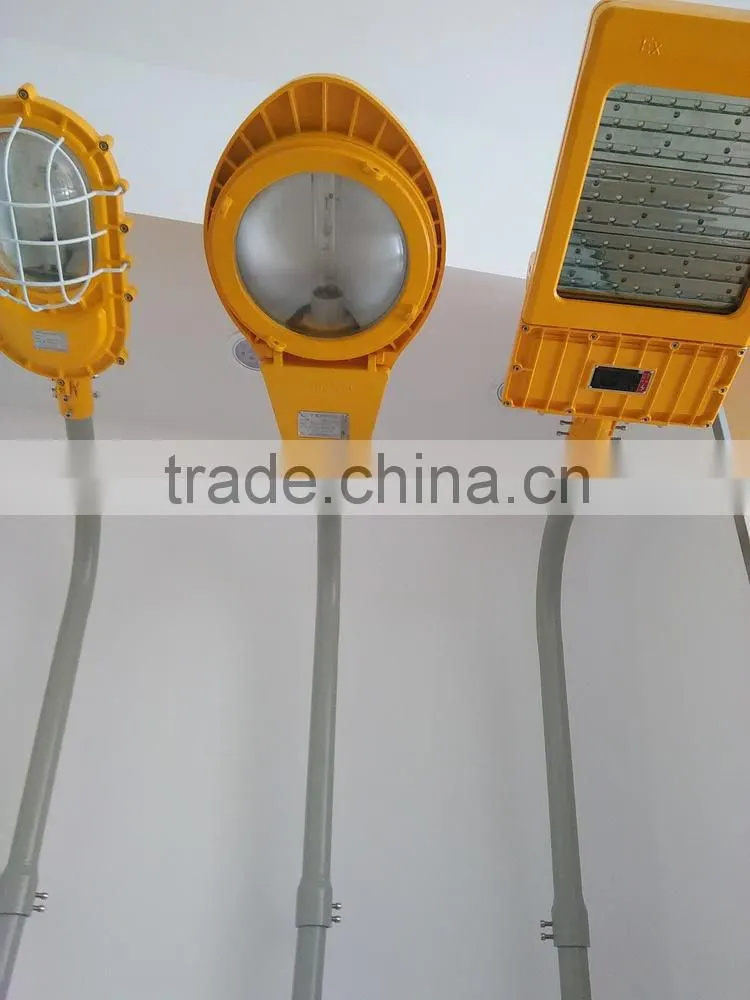

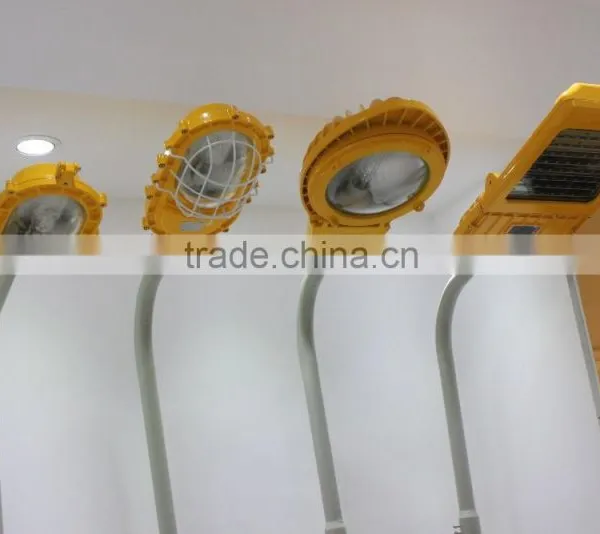

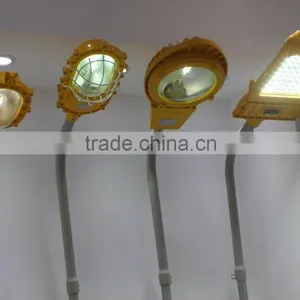

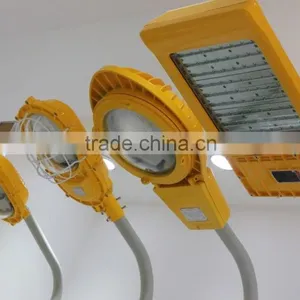

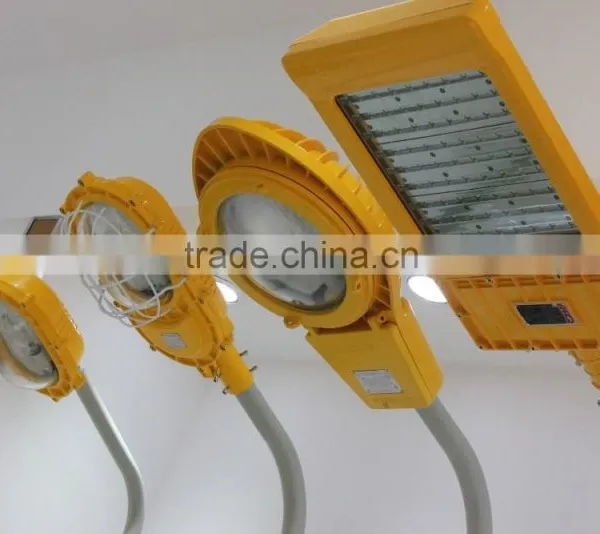

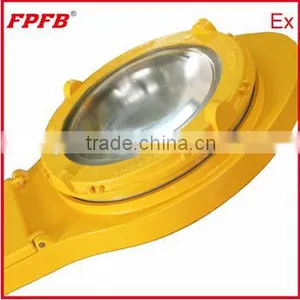

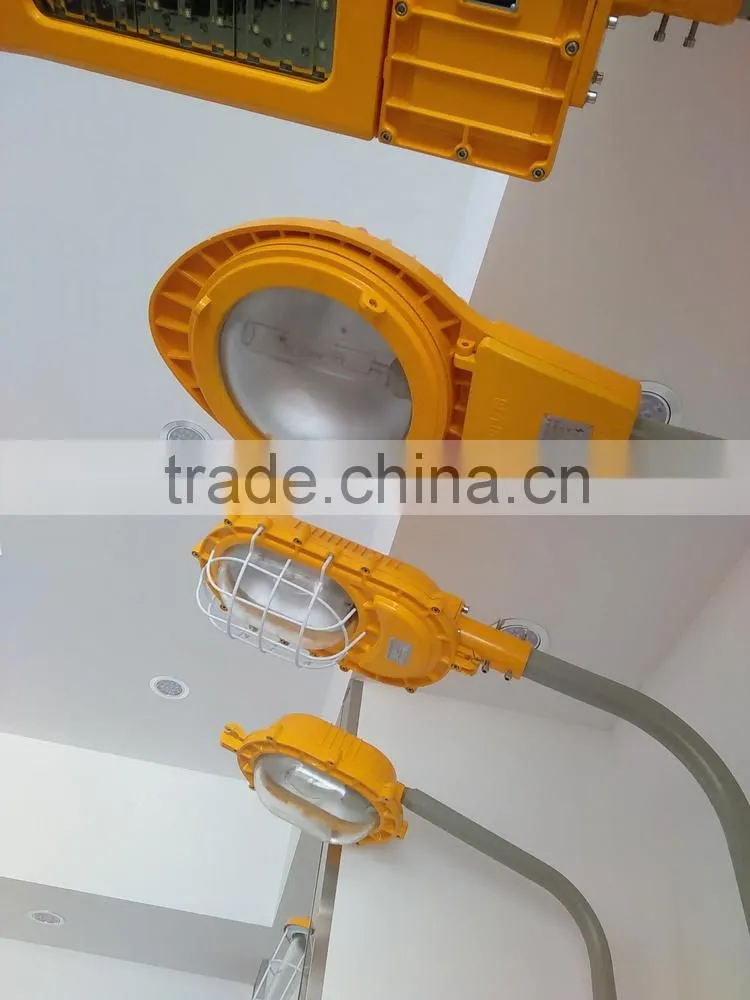

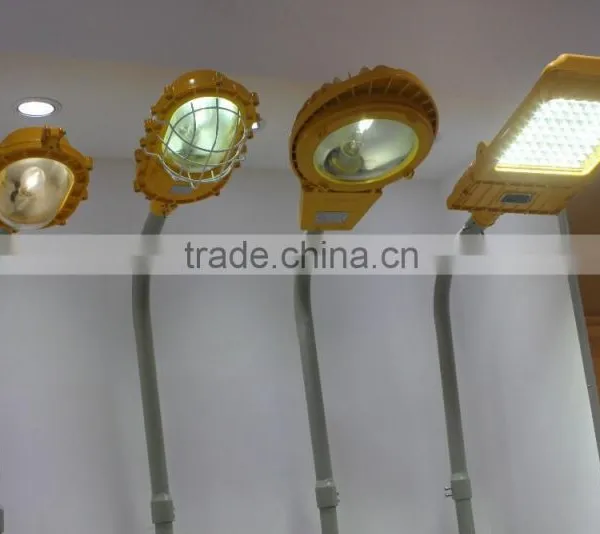

BLC8610 aluminum alloy explosion proof floodlight with high pole
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category II A and II B where the temperature classification is T1-T6.
3. Hazardous zone : 20. 21. and 22
4. Flammable dust atmosphere.
5.Light pole has types of single-arm,double-arm,etc,or OEM.
6.Light pole has types of single-arm,double-arm,etc
7.Strong wind resistance up to 40m/s.
8.Inlet thread:G3/4"
| type | protect grade | explosion proof grade | cable outer dia | lamp holder | rated voltage | lamp options |
| BLC8610 | IIB IIC DIP | IP65 | 9mm-14mm | E27 E40 | 220V | G80 G125 G175 G400 N70 N100 N110 N150 N250 N400 W80 W165 L250 etc |

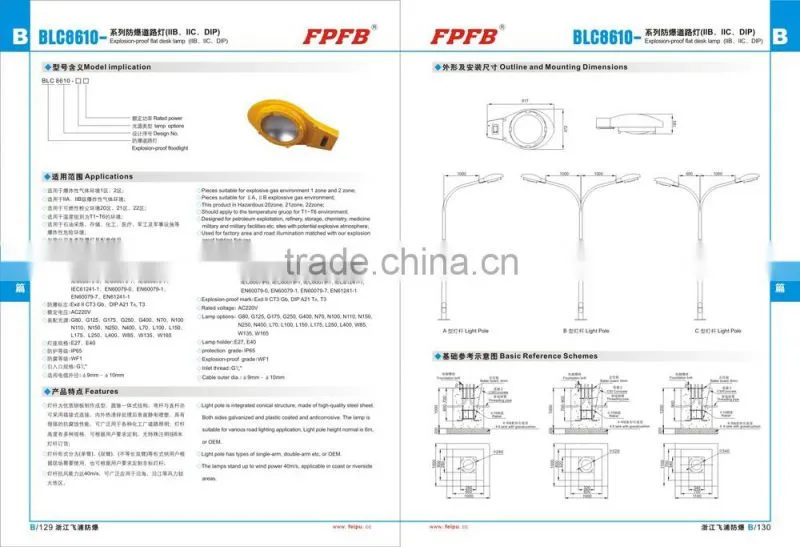

Techinical parameters:
- Meet a criterion: G3B3836.1, GB3836.2, GB3836.3, GB12476.1,IEC60079-0, IEC60079-1, IEC60079-7, IEC61241-1, EN60079-0, EN60079-1, EN60079-7, EN61241-1
- Ex-proof Mark: Exd II CT3 Gb, DIP A21 TA, T3.
- Rated voltage: AC220V
- Protection grade: IP65
- Corrosion-proof grade:WF1
- Inlet Thread: G3/4"
- Cable outer dia:9mm~10mm
- Lamp source:G80,G125,G250,G400,N70,N100,N110,N150,N250,N400,L70,L100,L150,
L175,L250,L400,W85,W135,W165
Product Features:
- Lighting pole is integrated conical structure, made of high-quality steel sheet. Both sides galvanized and plastic coated and anticorrosive. The lamp is suitable for various road lighting application. light pole height normal is 6m, or OEM.
- Light pole has types of single-arm, double-arm etc, or OEM.
- The lamps stand up to wind power 40m/s, applicable in coast or riverside areas.
Feipu Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
We have wide range explosion proof products of lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.
Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
