Specifications
ISO9001 CE certificationProfessional Manufacturer
20 years' experience
Used PU Foam Machines

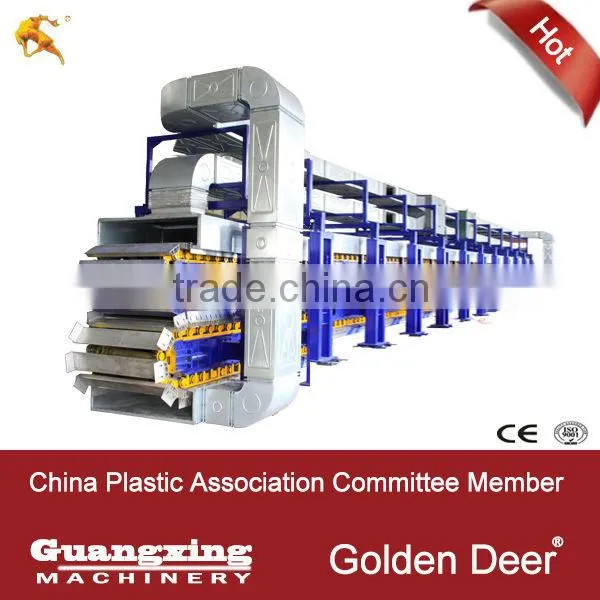

Eur Widely Used PU Foam Machines
Product Introduction:
1 The equipment is accurate and durable.
2 The tape mechanism has a tension control device, enabling the overlay material evenly into the mould, to make sure the piece has a smooth surface.
3 The side block and adhesive tape recirculation device can guarantee the sealing of the piece and its demoulding.
4 The double-crawler laminating system is of pressure proof, and can achieve a continuously automatic production and limit the foaming material within the mould, ensuring a stable feature in product size.
5 The following conveying and cutting systems can work simultaneously to produce plates of any length.
Technical Parameters :
ITEM |
UNIT |
PARAMETER |
Effective length of laminating machine |
mm |
18000--36000 |
Effective width of laminating machine |
mm |
1200 |
|
Effective height of laminating machine
|
mm |
20--100 |
Laminating machine temperature control range |
°C |
≤80 |
Foaming casting machine flow |
Kg/min |
6--25 |
|
Anti-pressure capability of laminating machine (25°C) |
Mpa |
3 |
|
Anti-pressure capability of laminating machine (70°C)
|
Mpa |
2.8 |
Suitable production thickness |
mm |
20--100 |
Capacity |
m³/24h |
200 |
Dimension L*W*H |
Mm |
(40000--60000)*3000*4000 |
Installed power |
KVA |
45 |
Total weight |
Tons |
40--72 |
Eur Widely Used PU Foam Machines:
Produce Process of Eur Widely Used PU Foam Machines in Plant:
Chain plate processing:
The heating treatment bring the chain plate a high strength, non-deformation and high resistance to the expansive force from high-density products.
Laser cutting and hole drilling processing provides the precise standard of the spare parts.
Frame processing:
CNC (Computer Numerical Control ) grinder guarantees the smooth surface of the frame.
Assembling:
Product samples of the machine:
ISO9001 Certification:
Please be free to contact with us if you are interested.
