German Tech High Pressure Polyurethane Foam Panel Machine
Product Introduction
1 The equipment is accurate and durable.
2 The tape mechanism has a tension control device, enabling the overlay material evenly into the mould, to make sure the piece has a smooth surface.
3 The side block and adhesive tape recirculation device can guarantee the sealing of the piece and its demoulding.

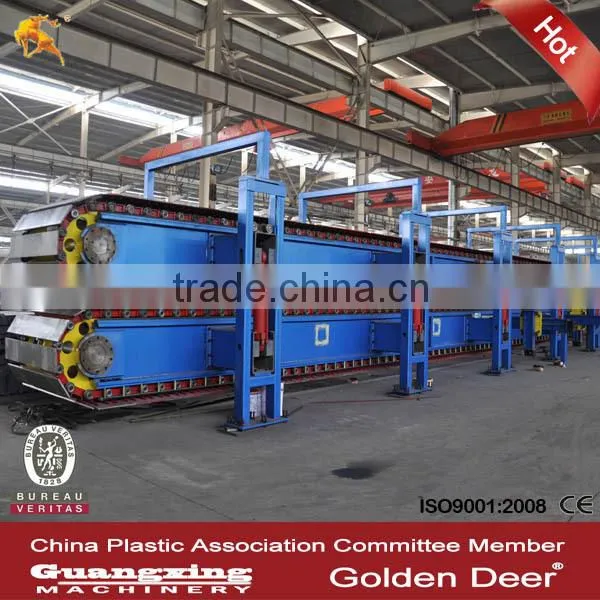

4 The double-crawler laminating system is of pressure proof, and can achieve a continuously automatic production and limit the foaming material within the mould, ensuring a stable feature in product size.

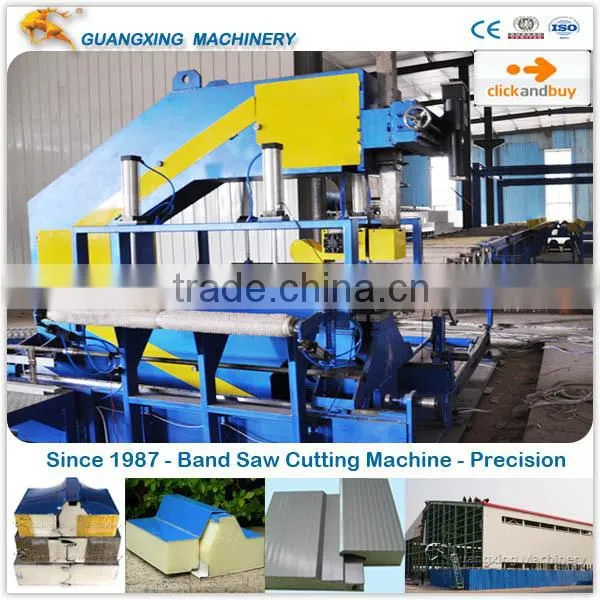

5 The following conveying and cutting systems can work simultaneously to produce plates of any length.
Products specification:
ITEM |
UNIT |
PARAMETER |
Effective length of laminating machine |
mm |
18000--36000 |
Effective width of laminating machine |
mm |
1200 |
|
Effective height of laminating machine
|
mm |
20--100 |
Laminating machine temperature control range |
°C |
≤80 |
Foaming casting machine flow |
Kg/min |
6--25 |
|
Anti-pressure capability of laminating machine (25°C) |
Mpa |
3 |
|
Anti-pressure capability of laminating machine (70°C)
|
Mpa |
2.8 |
Suitable production thickness |
mm |
20--100 |
Capacity |
m³/24h |
200 |
Dimension L*W*H |
Mm |
(40000--60000)*3000*4000 |
Installed power |
KVA |
45 |
Total weight |
Tons |
40--72 |

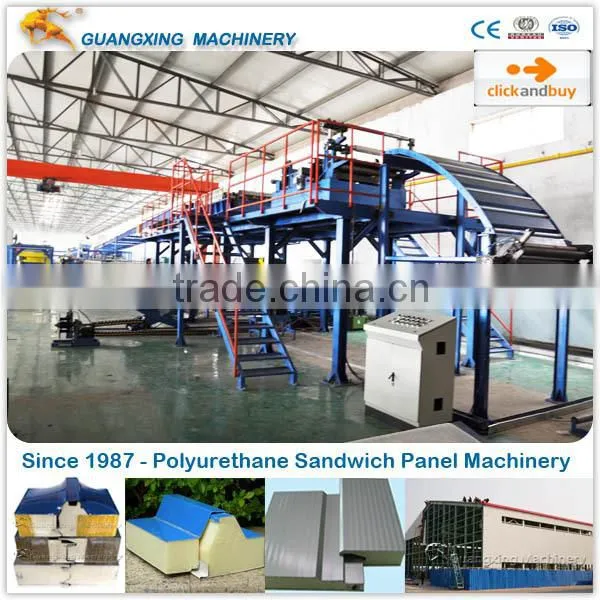

PU Board Production Line (Work Flow)
Production Procedure
Overview
PU Foaming Machine
Main Heating Machine
Main Parts
Manufacture Plant
Products and Transportation
Application
German Tech High Pressure Polyurethane Foam Injection Machine
ISO9001 And CE Certification
Glimpse of Plant
