Continuous Polyurethane Foam Machine
We are the largest and most experienced machinery trusted manufacturer in China .
With powerful R&D team,we have been in PU/Polyurethane Continuous Insulated Panel Production Line since 1987. More Details, CONTACT NOW !
Mob:0086-13832148917 , skyp: hbgxmachinery07 (gmail) , wechat: s2729355624

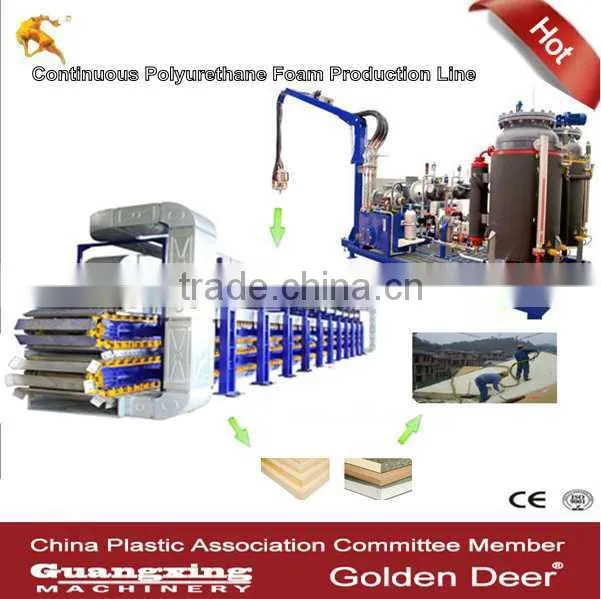

Widely Used High Precision Continuous Polyurethane Foam Machine
Product Introduction
The whole line mainly include:
- Decoiler System,
- High Pressure PU Foaming Machine,
- Double Belt Conveyor,
- Automatic Cutting System,
Our machine can meet your demands with various soft surface: non-woven fabrics,aluminum foil, glass fiber mat, kraft paper,etc.
Advantages:
1 The equipment is accurate and durable.
2 The tape mechanism has a tension control device, enabling the overlay material evenly into the mould, to make sure the piece has a smooth surface.
3 The side block and adhesive tape recirculation device can guarantee the sealing of the piece and its demoulding.
4 The double-crawler laminating system is of pressure proof, and can achieve a continuously automatic production and limit the foaming material within the mould, ensuring a stable feature in product size.
5 The following conveying and cutting systems can work simultaneously to produce plates of any length.
Technical Parameters
ITEM |
UNIT |
PARAMETER |
Effective length of laminating machine |
mm |
18000--36000 |
Effective width of laminating machine |
mm |
1200 |
|
Effective height of laminating machine
|
mm |
20--100 |
Laminating machine temperature control range |
°C |
≤80 |
Foaming casting machine flow |
Kg/min |
6--25 |
|
Anti-pressure capability of laminating machine (25°C) |
Mpa |
3 |
|
Anti-pressure capability of laminating machine (70°C)
|
Mpa |
2.8 |
Suitable production thickness |
mm |
20--100 |
Capacity |
m³/24h |
200 |
Dimension L*W*H |
Mm |
(40000--60000)*3000*4000 |
Installed power |
KVA |
45 |
Total weight |
Tons |
40--72 |
Working flow:
Produce Process of Machinery in Plant
----------------------------------------------------------------------------------
Chain plate processing
The heating treatment bring the chain plate a high strength, non-deformation and high resistance to the expansive force from high-density products.
Laser cutting and hole drilling processing provides the precise standard of the spare parts.
Frame Processing:
CNC grinder guarantees the smooth surface of the frame.
Assembling:
Product samples of the machine:
Final products samples and applications:
Appearance of the machine:
Seaworthy packaging
Turn-key projects service
27 years' designing, manufacturing and supplying custom engineered experience
Professional R&D Team
114th China Import And Export Fair(Canton Fair) ly21
115th China Import And Export Fair(Canton Fair) 7.1 C39
Member of China Foam Association
Certification
Plant overview:
1 This line is a continuous production line.
2 It used to make rigid polyurethane(short as PU) for building insulation.
3 1 Year warranty
4 Outstanding technical&after-sale services, lifetime technical support
If you interest our product , pls contact me for more details :
Mob:0086-13832148917 , skyp: hbgxmachinery07 (gmail) , wechat: s2729355624
