Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > New HDMI 7" 6ch LCD Screen HVR Kit With 2 ip Cameras and 4 Analog Cameras

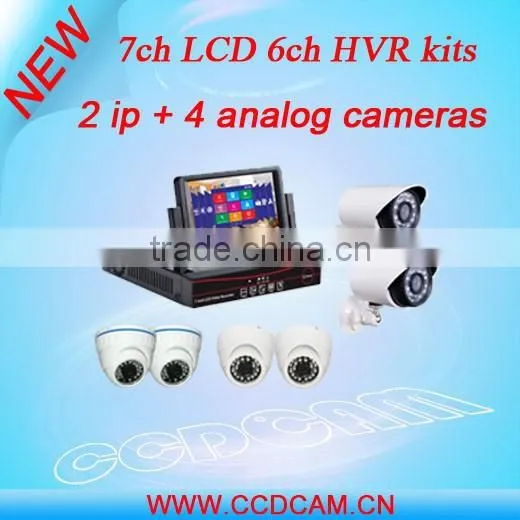

New HDMI 7" 6ch LCD Screen HVR Kit With 2 ip Cameras and 4 Analog Cameras

Name: New HDMI 7" 6ch LCD Screen HVR Kit With 2 ip Cameras and 4 Analog Cameras
Brand: ccdcam
SKU: 119811531

New HDMI 7" 6ch LCD Screen HVR Kit With 2 ip Cameras and 4 Analog Cameras thumbnail-1

New HDMI 7" 6ch LCD Screen HVR Kit With 2 ip Cameras and 4 Analog Cameras photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ccdcam

Model Number:

HVR kits

Contact Supplier Request Quote Chat Now

Shenzhen CCDCAM Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ccdcam

Model Number HVR kits

Specifications

2ch 720p ip cameras and 4ch960h analog
7" LCD HVR
Max 3TB HDD
HDMI,RJ45,without VGA

new HDMI 7" 6ch LCD screen HVR kit with 2 ip cameras and 4 analog cameras

2ch 720p ip cameras and 4ch960h analog
7" LCD HVR
Max 3TB HDD
HDMI,RJ45,without VGA

	1000TVL analog cameras *4
Image Sensor	1/3 cmos 1000 tvl
Effective Pixels	1280(H) x 960(V)
Signal System	PAL /NTSC
Horizontal Resolution	1000TVLines
Min. Illumination	Color(0.1 Lux), B/W(0 Lux,IR On)
Lens Mount	3.6 standard lens
S/N Ratio	More Than 48dB (AGC Off)
Electronic Shutter	1/50(1/60) ~ 1/10,000 Sec.
White Balance	Auto
AGC	Auto
Infrared Luminary	24pcs leds
Illuminate Distance	20m
I/O Connector	Power : DC Power Jack , Video Output : BNC
Video Output Level	1.0 Vp-p (75 Ohms, composite)
Supplied Voltage	DC12V Voltage

HVR kits ip cameras

		720P Low Lux IP camera*2
Camera	Image Sensor	1/4 inch Megapixel Low lux CMOS Sensor(HI3518)
	IR-LED	36pcs LED Lights
	Illuminate Distance	30m
	Day/Night	IR-CUT filter
	Min.Illumination	Color 0.1Lux/F1.1,B/W 0.01 Lux/F1.1
	Electronic Shutter	1/50(1/60)s-1/100,000s
	Lens	3.6mm Megapixel Lens
	Lens Mount	CS Mount
Video	Compression standard	H.264/M-JPEG
	Compression technology	Dual-stream compression technology
	Video frames	Real-time PAL 25fps,NTSC 30fps
	output bit rate	32Kbps~8000Kbps Adjustable
	Audio coding standard	AAC Codec standard
Image	Resolution	Main Stream: 1280×720 25fps/30fps Real-time, Sub Stream: 640×360,320×180;
Image	parameter settings	Brightness, contrast, chroma saturation,Image Quality Level
Network	protocol	RTSP, FTP, PPPoE, DHCP, TCP/IP, HTTP, UDP, RTP/RTCP, UPNP, SMTP, SIP, DDNS, DNS
Network	Network interface	RJ45 10M/100 MEthernet port
Other	Work environment	-10℃~60℃ 90%RH
	Power supply	DC 12V,Optional POE Remote power supply
	Waterproof Criterion	IP66
	Package Size	13X13X12CM
	Gross weight	0.8KG

	6CH HVR

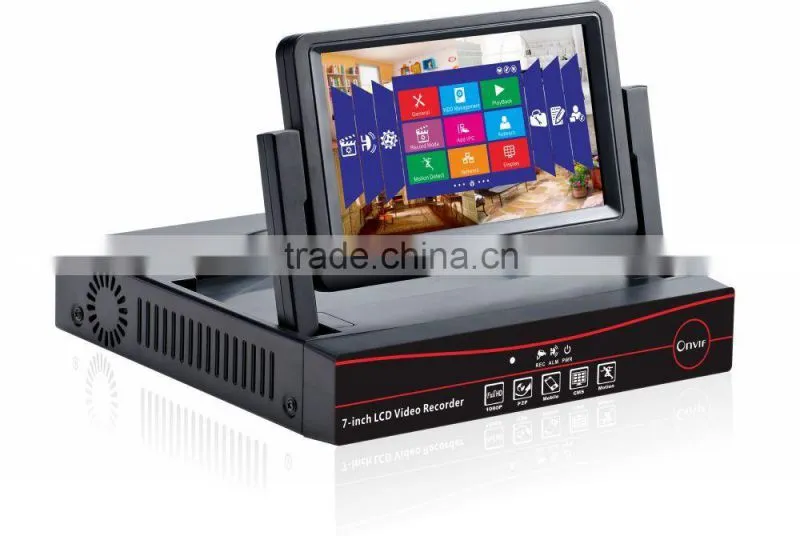

7 inch digital LCD(Resolution 800X480 ) Support embedded Linux OS Support BNC and IPC Sync Input Support HDMI,CVBS Sync video output HDMI image resolution Max to 1920*1080 Support HD preview, all channels support Main stream Support Zoom function of preview and playback Support event,playback,backup recording ,support picture playback and search Support One-key recording Support fast playback Support P2P Support 4ch 960H/1ch 720P simultaneous playback
System
Main processor		High performance embedded microprocessor
Operating system		Embedded LINUX OS
Video spec.
Video compression format		H.264
Display Image Resolution		720P 30FPS
Playback Image Resolution		720P 30FPS
Motion Detection		can setup 192(16×12)pcs motion detection area each channeland multi-level sensitivity(1-6 levels adjustable)
Privacy Masking		Support
Audio spec.
Audio compression format		adpcm, G711
Two-way audio		N/A
Recording Mode
Recording Mode		Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording
Recording storage		HDD,Network
Frame rate		30 fps NTSC;25fps PAL
Playback		Max support 4ch 960H/1ch 720P synchronously playback
Backup Mode		Support HDD,USB Flash Disk store & backup
Video
Video Input		4CH BNC 960H, 2CH 720P IPC
Video output		1ch CVBS(BNC), 1ch HDMI, 7inch LCD(Resolution 800X480 )
Audio
Audio Output		1ch
Alarm
Alarm Input		N/A
Alarm Output		N/A
Other
Network		1x100Mbps,RJ45 port;
RS485		Standard 485 port,support half-duplex, green terminal port
USB		2 USB 2.0 ports
HDD		support 1 SATA HDD MAX 3TB
Power		DC +12V /3A
Power consumption		16W-18W(not include HDD)
Operation temperature		0℃-+55℃
Operation humidity		10%-90%

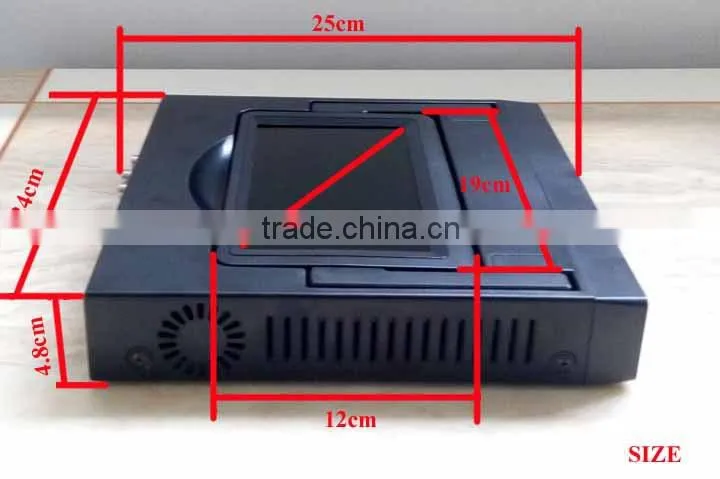

Demension		25224048mm(0.8U hight)
Weight		1.5-1.8KGS(not include HDD)
