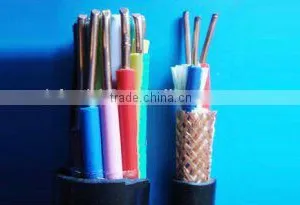

GB Cu Core Fire - Proof & Insulation Layer Steel Tape Armored Heat-resistance Wire

GB Cu Core Fire - Proof & Insulation Layer Steel Tape Armored Heat-resistance Wire thumbnail-1

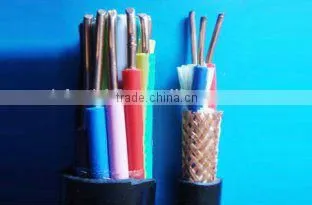

GB Cu Core Fire - Proof & Insulation Layer Steel Tape Armored Heat-resistance Wire photo-1
US$ 1 - 500 MOQ: 500 Miles
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Newbaofeng
Insulation Material:
PE
Contact Supplier Request Quote Chat Now
Hebei New Baofeng Wire & Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Newbaofeng
Insulation Material PE
Type Other
Application Underground
Conductor Material Aluminum
Jacket PE

Specifications

aaProduct Standard
Enterprise standard. Fire-proof feature test refers to GB/T19216.21-2003 (equal to IEC60331).
aaUsage
It

    •

      • Type and Designation











      Type

      Designation

      NHFF

      Cu core fire-proof & insulation layer heat-resistance fire-proof cable

      NHFF22

      Cu core fire-proof & insulation layer steel tape armored heat-resistance fire-proof cable

      NHFF32

      Cu core fire-proof & insulation layer steel wire armored heat-resistance fire-proof cable

      NHFPF

      Cu core fire-proof & insulation layer heat-resistance shield fire-proof cable

      NHFPF22

      Cu core fire-proof & insulation layer steel tape armored heat-resistance shield fire-proof cable

      NHFPF32

      Cu core fire-proof & insulation layer steel wire armored heat-resistance shield fire-proof cable



      •  Model explanation







                                                                 Conductor type



                                                                 Armoring material



                                                                 Sheath material



                                                                 Shielding material



                                                                Insulating material



                                                                Series code







      • Technical performances











      Item

      Unit

      Technical performances

      D.C. Resistance of conductor (20)≤

      Ω/km

      mm2 section

      0.5

      0.75

      1.0

      1.5

      2.5

      4

      6

      10

      16

      25

      35

      50

      70

      95

      120

      Resis-tance

      36

      24.5

      18.1

      12.1

      7.4

      4.61

      3.08

      1.83

      1.15

      0.727

      0.524

      0.387

      0.268

      0.193

      0.153

      Test voltage

      kV/1min

      450/750V Test Voltage 2.5KV

      600/1000V Test Voltage 3.5KV

      Insulation resistance≥

      MΩ·km

      100

      Fire-resistance feature



      Grade A (Flame temp 1000°C 90min test 3A fuse wire not break)



















      Item

      Code

      Explanation

      Series code

      NH

      Fire-proof cable

      Insulating material

      F

      Fire-proof insulating material

      Shielding material

      /

      P

      No shield to be omitted

      Tin-plated woven Cu wire

      Sheath material

      F

       (F46) F46

      Armoring material

      22

      32

      Steel tape armored

      Thin steel wire armored

      Conductor type (fill in the brackets)

      A

      B

      Single strand conductor

      Twisted conductor



      E.G.1: Five core1.0mm2 type A conductor heat-resistance fire-proof cable is described as: NHFF 5×1.0(A)



      E.G.2: Five core 120mm2 Cu conductor steel wire armored Tin-plated woven Cu wire shield heat-resistance fire-proof cable is described as:NHFPF22 5×120







      • Application characteristics
        1. Operating temp: Long time use 200°C, short time use 1000°C 90 minutes.
        2. Rated voltage U0/U: 450/750V, 600/1000V
        3. Min. ambient temp: fixed installation -60°C, non-fix installation -20°C.
        4. Min. bending radius: Non-armored cable≥10 times the cable outer dia.



                          Armored cable ≥12 times the cable outer dia.



      • Specifications cable











      Type

      Nominal cross section mm2

      0.5

      0.75

      1.0

      1.5

      2.5

      4

      6

      10

      16

      25

      35

      50

      70

      95

      120

      Core number

      NHFF

      2~61

      2~10

      1~5

      NHFF22

      —

      4~61

      2~10

      2~5

      NHFF32

      —

      4~61

      4~10

      3~5

      NHFPF

      2~61

      2~10

      1~5

      NHFPF22

      —

      4~61

      2~10

      2~5

      NHFPF32

      —

      4~61

      4~10

      3~5



      • Delivery lengths



      Non-armored cable is 500m armored cable is 200m, shortage length more than 30m may be delivered but not exceed 10% of the total length delivered special requirement to be discussed between the supplier and the buyer.
