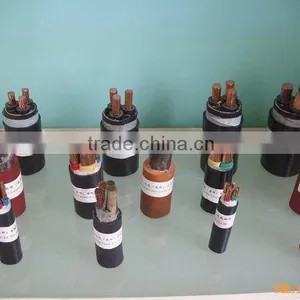

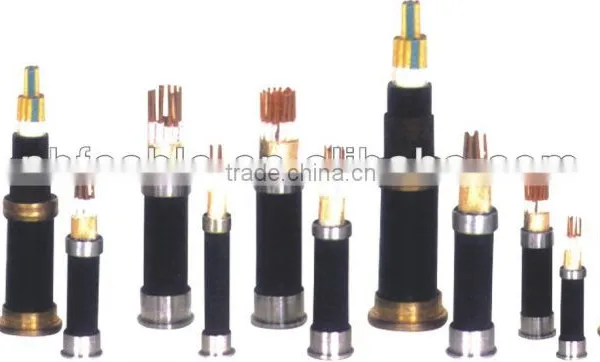

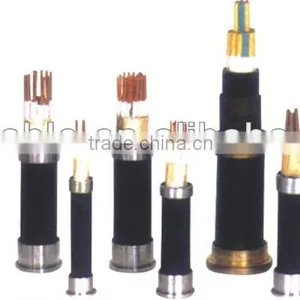

XLPE Cable,ABC Power Cable/Alumnium Bundled Power Cable
Negotiable
MOQ: 1000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
NBF
Model Number:
XLPE cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Top 1 Export Factory for ABC CABLE Aluminum Electrical Xlpe/Pvc/Pe Insulated Overhead Cable LV MV HV Al Service Drop ABC CableNegotiableMOQ: 1000 Meters -
HV XLPE Cable 500kVNegotiableMOQ: 1000 Meters
-
LV & HV CABLE Cu/Al Conductor XLPE or PVC Insulated Electrical Power CableNegotiableMOQ: 1000 Meters
-
Aeria Bunched ABC Cable HV ABC Cable 185mm2NegotiableMOQ: 1000 Meters
-
Low Voltage/Medium/High Voltage Power Cable Xlpe Insulated Power Cable hv CableNegotiableMOQ: 1000 Meters
Place of Origin
Hebei, China
Brand Name
NBF
Model Number
XLPE cable
Insulation Material
XLPE
Type
Medium Voltage
Application
Other, Industrial,Construction Power Station,Industrial ,Underground
Conductor Material
Other, copper or aluminium
Jacket
PVC
Specifications
ABC power cable1.600V
2.XLPE/PVC insulated
3.Al1350 or AA8000 Conductor
4.Rich experience,OEM and ODM accepted

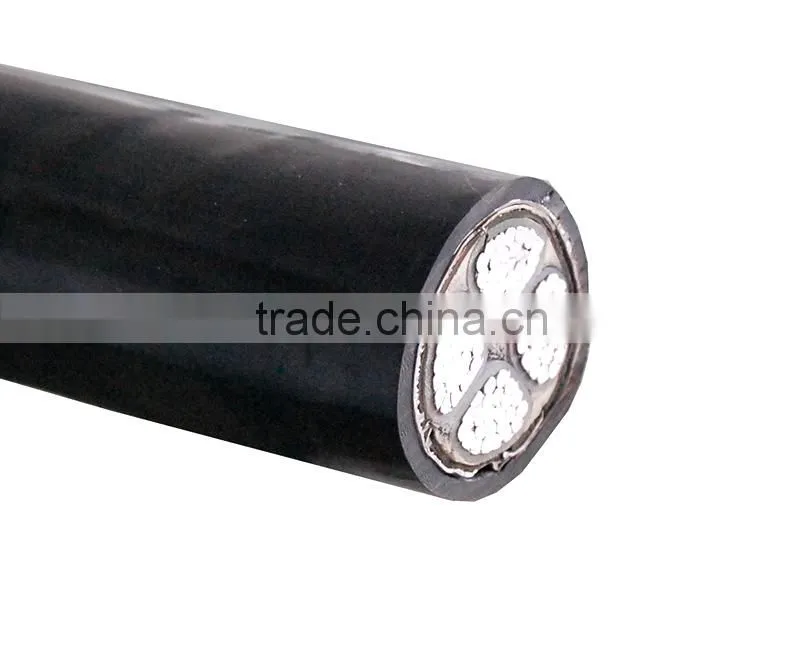

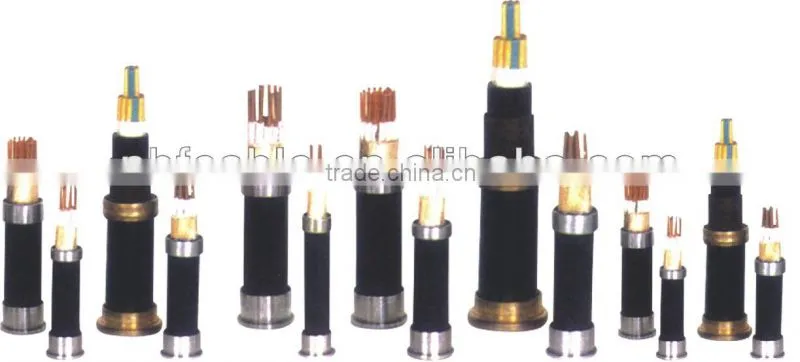

XLPE Cable,ABC Power Cable/Alumnium bundled Power Cable
1.Standards
-The Aerial Insulated Cable meets the China National standard of GB/T14049-2008
-Also accept OEM and custom request .
2.Applications
-Copper Conductor or Aluminum Conductor with XLPE or HDPE insulation Aerial Cable is suiltable for aerial power lines with A.C. rated voltage U/Um upto 10/12kv and 35/42kv
-The soft copper conductor cable is used as lead of transformer. A certain distance should be kept between cable and trees while installation.
5. Properties
-Rated Volatge Uo/U is 0.6/1kV.
-ntinuous operating temperature
For PE and PVC not exceed 70°C
For XLPE not exceed 90 °C
-Cable installation ambient temperature: no less than -20°C
-Min. bending radius.
For diameter less than 25mm, shall be 4 times cable outer diameter.
For diameter equel to or more than 25, shall be 6 times cable outer diameter
| Copper Wire Core | |||||
| Cross-Section Area (mm²) |
Max.Overall Diameter (mm) |
Max.D.C. Resistance at 20 °C (Ω/km) |
Min. Insulation Resistance at 90°C (MΩ/km) |
Breaking Load of cable (N) |
Weight of cable (kg/km) |
| 10 | 6.5 | 1.906 | 0.67 | 3471 | 106 |
| 16 | 8 | 1.198 | 0.65 | 5486 | 168 |
| 25 | 9.4 | 0.749 | 0.54 | 8465 | 254 |
| 35 | 11 | 0.54 | 0.54 | 11731 | 354 |
| 50 | 12.3 | 0.339 | 0.46 | 16502 | 496 |
| 70 | 14.1 | 0.276 | 0.4 | 23461 | 683 |
| 95 | 16.5 | 0.199 | 0.39 | 31759 | 925 |
| 120 | 18.1 | 0.158 | 0.35 | 39911 | 1157 |
| 150 | 20.2 | 0.128 | 0.35 | 49505 | 1448 |
| 185 | 22.5 | 0.1021 | 0.35 | 61846 | 1786 |
| 240 | 25.6 | 0.0777 | 0.34 | 79823 | 2310 |
| Aluminum Wire Core | |||||
| Cross-Section Area (mm²) |
Max.Overall Diameter (mm) |
Max.D.C. Resistance at 20 °C (Ω/km) |
Min. Insulation Resistance at 90°C (MΩ/km) |
Breaking Load of cable (N) |
Weight of cable (kg/km) |
| 10 | 6.5 | 3.08 | 0.67 | 1650 | 43 |
| 16 | 8 | 1.91 | 0.65 | 2517 | 68 |
| 25 | 9.4 | 1.2 | 0.54 | 3762 | 97 |
| 35 | 11 | 0.868 | 0.54 | 5177 | 135 |
| 50 | 12.3 | 0.641 | 0.46 | 7011 | 182 |
| 70 | 14.1 | 0.443 | 0.4 | 10354 | 244 |
| 95 | 16.5 | 0.32 | 0.39 | 13727 | 330 |
| 120 | 18.1 | 0.253 | 0.35 | 17339 | 406 |
| 150 | 20.2 | 0.206 | 0.35 | 21033 | 508 |
| 185 | 22.5 | 0.164 | 0.35 | 26732 | 626 |
| 240 | 25.6 | 0.125 | 0.34 | 34679 | 806 |
| Al Alloy core | |||||
| Cross-Section Area (mm²) |
Max.Overall Diameter (mm) |
Max.D.C. Resistance at 20 °C (Ω/km) |
Min. Insulation Resistance at 90°C (MΩ/km) |
Breaking Load of cable (N) |
|
| 10 | 6.5 | 3.574 | 0.67 | 1650 | |
| 16 | 8 | 2.217 | 0.65 | 2517 | |
| 25 | 9.4 | 1.393 | 0.54 | 3762 | |
| 35 | 11 | 1.007 | 0.54 | 5177 | |
| 50 | 12.3 | 0.744 | 0.46 | 7011 | |
| 70 | 14.1 | 0.514 | 0.4 | 10354 | |
| 95 | 16.5 | 0.371 | 0.39 | 13727 | |
| 120 | 18.1 | 0.294 | 0.35 | 17339 | |
| 150 | 20.2 | 0.239 | 0.35 | 21033 | |
| 185 | 22.5 | 0.19 | 0.35 | 26732 | |
| 240 | 25.6 | 0.125 | 0.34 | 34679 |
