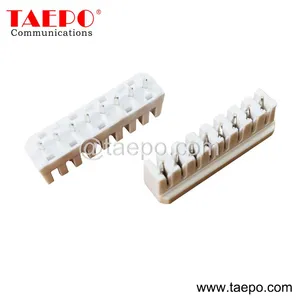

Help CenterSample Free 8 Pins KRONE PCB Connection Module With RoHS Certificate From China Factory
Related Products
-
Sample Free 4 Pins 110 Idc Connector Telephone Wire PCB Connection Module for Terminal Block With RoHS CertificateUS$ 0.05 - 0.1MOQ: 10000 Pieces -
10 Pairs Gel Filled QCS Quick Connection System Terminal Block With REACH Test ReportUS$ 1.3 - 2MOQ: 3000 Pieces
-
Sample Free 25 Pairs Gel Filled 710 Straight Splicing Module From China Factory TAEPOUS$ 0.6 - 1MOQ: 5000 Pieces
-
Sample Free With Wire Guide 10 Pair Super Compact Profile Connection Module From China Factory TAEPOUS$ 0.6 - 1.2MOQ: 3000 Pieces
-
Sample Free 10 Pairs Switching Module With Wire Guide and Earth Bar With REACH Test Report From China Factory TAEPOUS$ 1 - 2MOQ: 3000 Pieces
Service & Certificate
Descriptions
8 pins PCB connection modules (TP-1305-8) are used on the ethernet patch panel or RJ45 connection boxes, for the connection of LAN cable wires. For soldering on printed circuit boards. For terminating CAT 5E or CAT6 cables on LSA-PLUS contacts. Wire diameter: 0.40 ~ 0.63mm, Insulation diameter: 0.70 ~ 1.70mm
It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.
Main Features
Insulation Displacement Connection
No wire-stripping, screw and solder free
Reliable connections
Modular design and installations
Gas tight connection
One push wire insertion
Robust long-term environmental stability

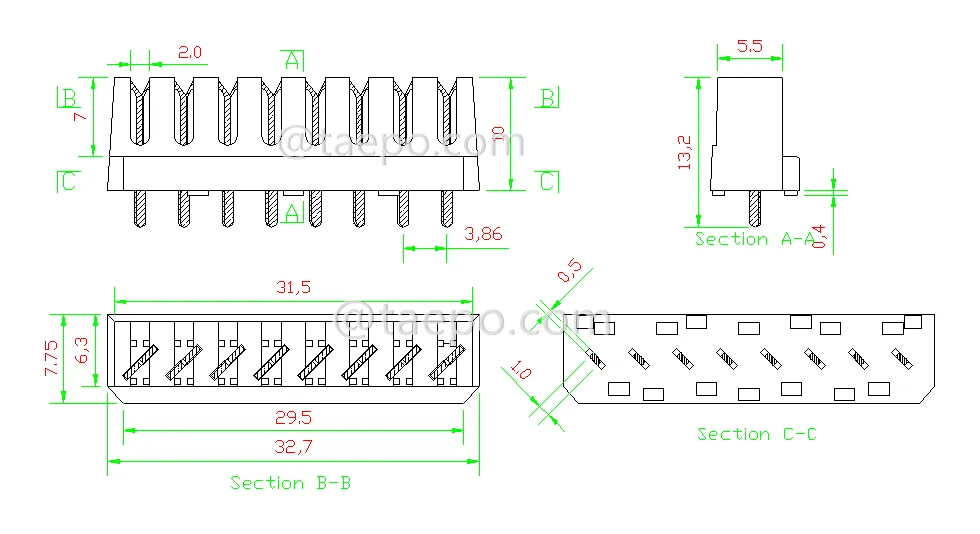

Schematic Diagrams

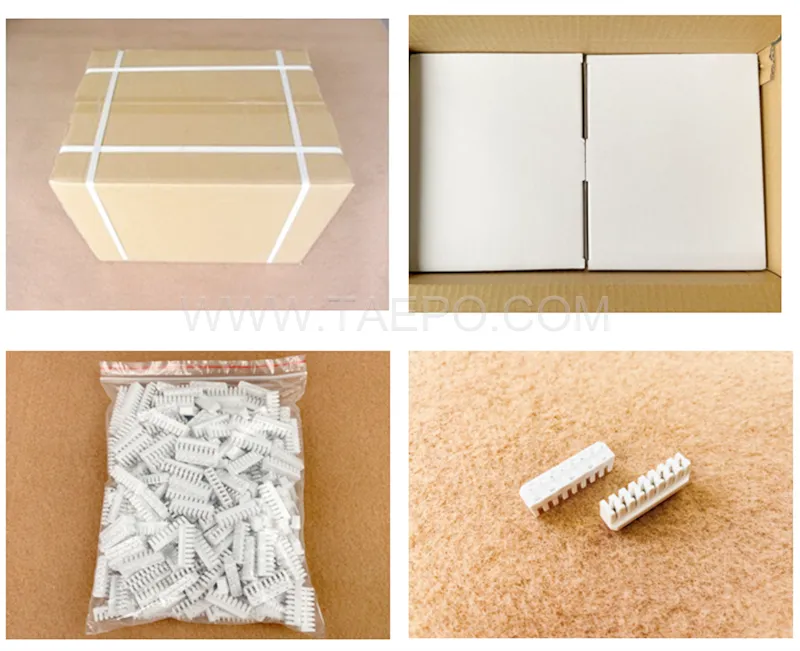

Packing Pictures
Order Data
| Item No | Descriptions |
| TP-1305-8 | 8 pins PCB connection module |
