Stainless Steel Bin Activator for Hot Sale
Brief introduction Vibrating Bin Activator
Hopper feeder consists of conical shape discharge zone that is connected to storage silo or hopper through a set of steel hangers. The gap between the hopper and discharge zone is sealed with the help of a special flexible rubber sleeve. The material is made to flow normally through the opening provided at the discharge point with the help of one unbalance vibrator motor that is fixed on one side.
Features Vibrating Bin Activator
1. Long span life.
2. Stable operation, low noise.
3 Simple structure, light weight.
4. Easy maintenance.
5.Suitable for all bulk materials
6.Non-compacting discharge
7."first in - first out" without bridge
8.In particle deterioration
9.Deaeration and bulk density homogenization
10.For mild steel, SS, aluminum or plastic silo
The technology Vibrating Bin Activator
1. Vibratory bin activator (discharge bottom)
2. Integrated baffle support
3. Hanger arms allowing horizontal vibration
4. Maintenance-free unbalance motor
5. Bin activator diameters from 600 to 2200 mm
6. Mild or stainless steel bin activators available
Specification Vibrating Bin Activator
| Model | Diameter(mm) | Power(kw) | Exciting Fore(kg) |
| DZ06 | 620 | 0.2 | 250 |
| DZ08 | 790 | 0.5 | 500 |
| DZ10 | 1000 | 0.75 | 1000 |
| DZ12 | 1200 | 1.1 | 1500 |
| DZ16 | 1500 | 1.5 | 2000 |
| DZ20 | 2000 | 1.5 | 3000 |
Specification only for your reference, size variable according to customer's request.
Applications Vibrating Bin Activator
Hopper feeder has been successfully tried on all difficult to handle material like surphur and its compounds, fine macro powder and other materials, ore titanium dioxide, wood chips, salt, sugar and other fine, flake, fibrous and sticky materials.

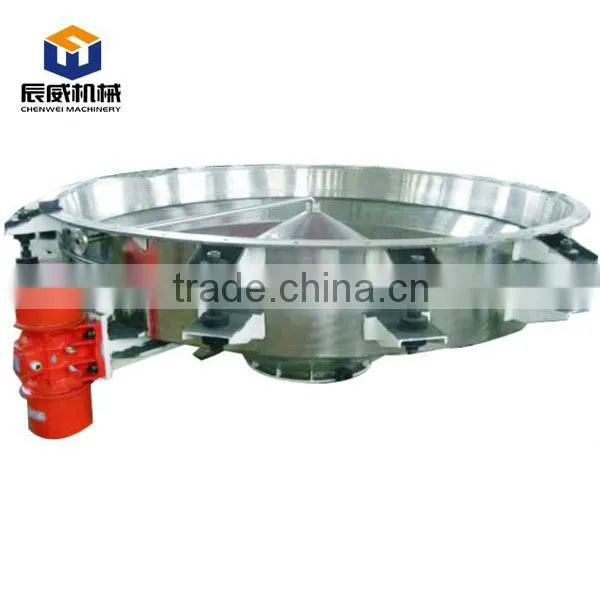

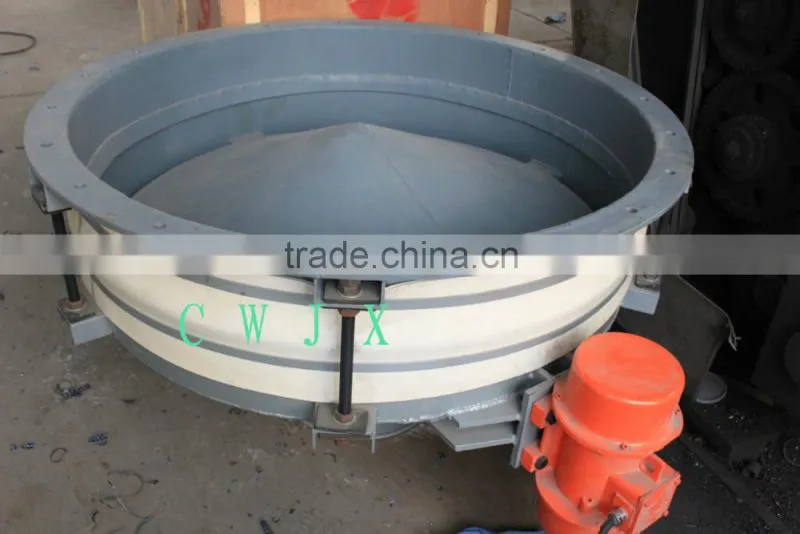

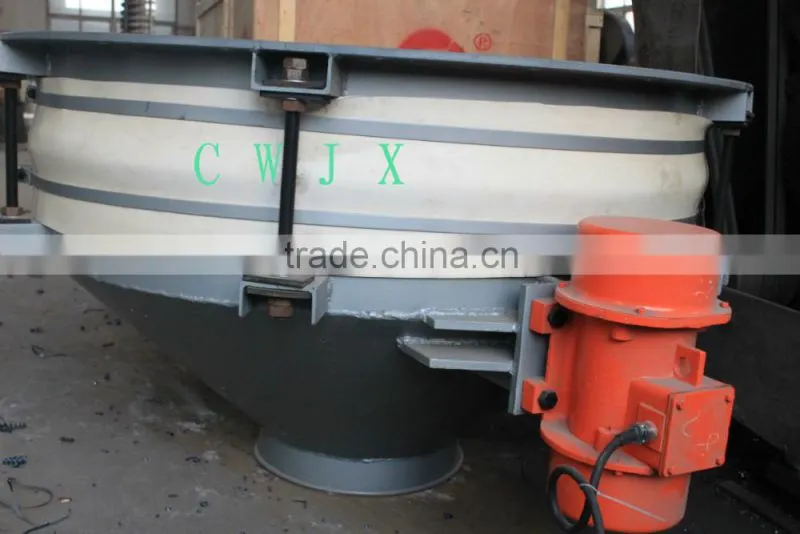

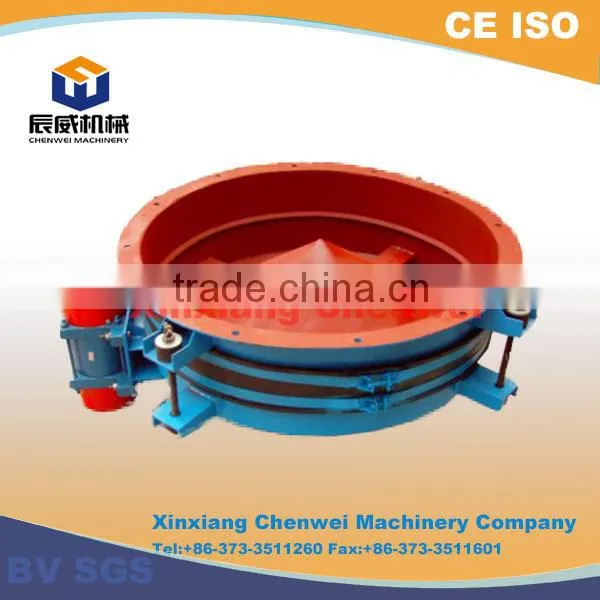

Product Pictures Display

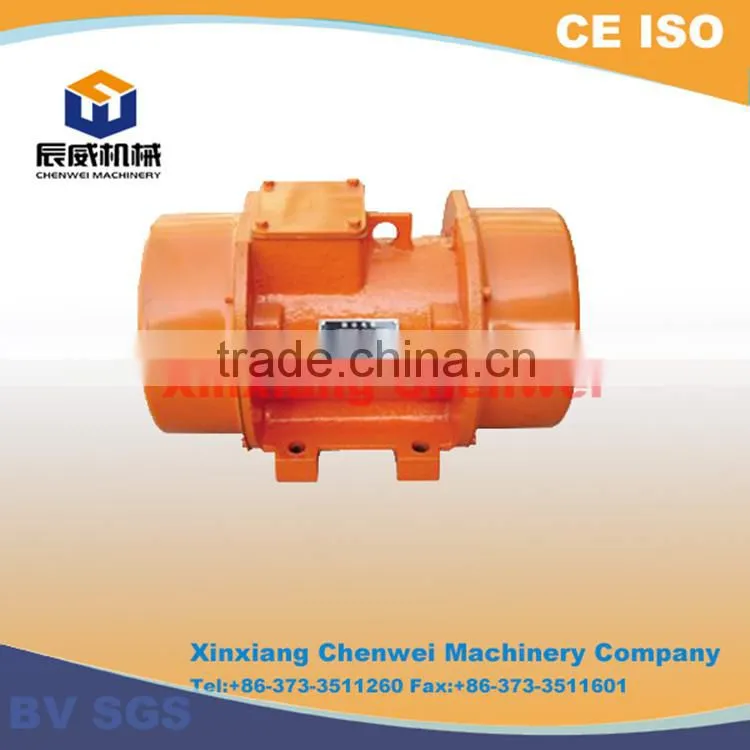

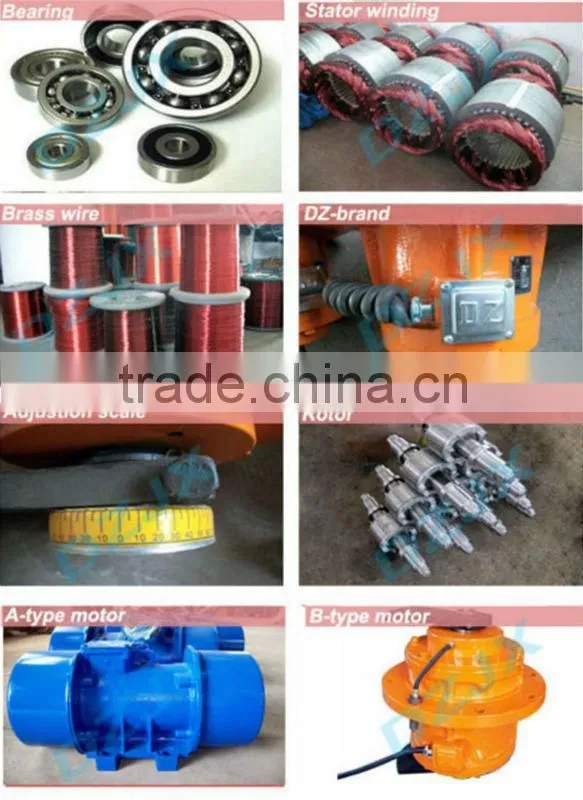

Motors pictures Vibrating Bin Activator
Guarrantee and after sale service
One year guarantee for the whole machine
24hours technical support by email
24 hours online service
Instruction in English language
User manual in PDF and Printed copy
Installation videos
Six free services including regular follow up services
1.FREE technical enquiries
2.FREE repairs during warranty
3.FREE special services for key projects
4.FREE inspection upon delivery
5.FREE operation and repair training
6.FREE period follow-up and maintenance service
We introduce ourself as a leading supplier of vibrating screens, centrifugal sifters, tumbler screens, gyratory screens,spiral elevator ,screw conveyor,vacuum feeder,other types conveyor and feeding machine, and aluminum foil tape with well-equipped testing equipment and strong technical force.
With a wide range, high quality, reasonable prices and stylish designs, our products are extensively used in mining, pharmacy, food, chemical, metal powder and other industries.
Other Products Display
As the professional manufacturer of vibrating & transporting equipments since 1987, we are pleased to offer you the best product in a competitive price.
Quotation of vibrating equipments in other type is also available, please feel free to contact us if you have any request.
