Home > Consumer Electronics > LED Display > Indoor LED Display > p3 p4 p5 p6 p7 p8 Aluminum Led Cabinet / Led Frame / Rental Led Display Cabinet

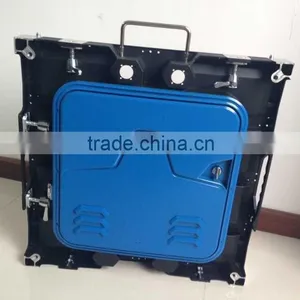

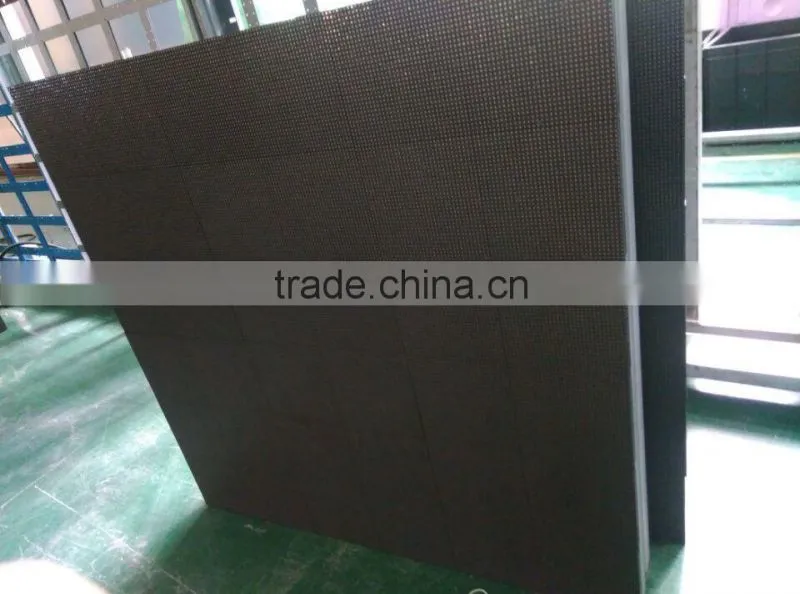

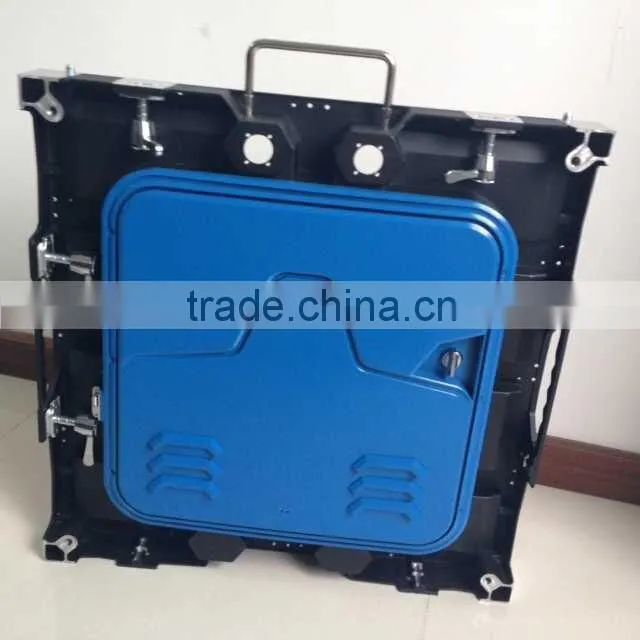

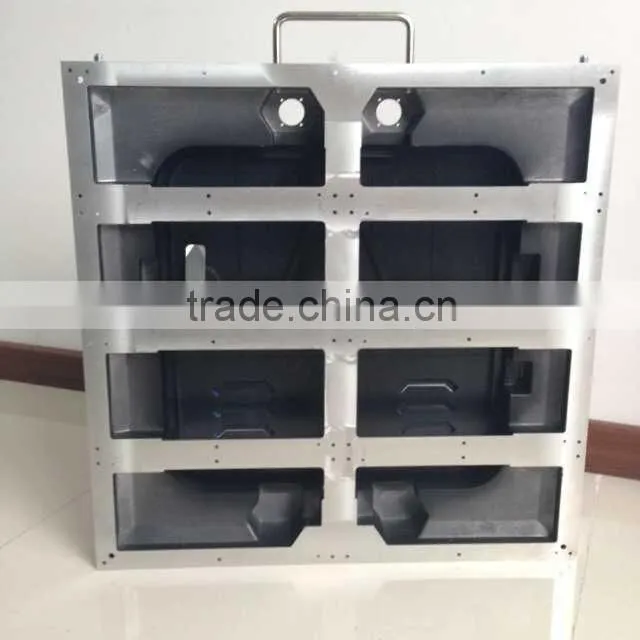

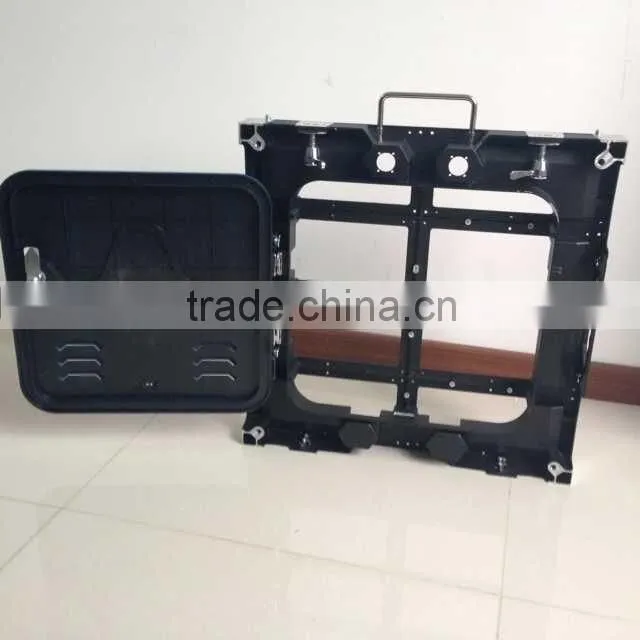

p3 p4 p5 p6 p7 p8 Aluminum Led Cabinet / Led Frame / Rental Led Display Cabinet
US$ 10 - 500
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Helilai
Model Number:
Helilai-P4-RGB-rental
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
P4 Inddor Full Color LED Screen Module/P4 Full Color LED Module With 256X128mmUS$ 7 - 13MOQ: 1 Piece -
P4 Indoor LED Commercial Advertising Display ScreenUS$ 700 - 1,000MOQ: 1 Square Meter
-
P25 Thin Outdoor LED Display/ Display for Marketing Advertising DisplayingUS$ 400 - 500MOQ: 5 Square Meters
-
Full Color Video Outdoor Led 2RGB PH31.25 Outdoor Advertising Billboard Wall ScreenUS$ 250 - 600MOQ: 1 Square Meter
-
P31.25 Full Color Led Mesh Strip Video Wall///outdoor Led Strip Display ScreenUS$ 250 - 500MOQ: 1 Square Meter
Place of Origin
Guangdong, China
Brand Name
Helilai
Model Number
Helilai-P4-RGB-rental
Usage
Indoor
Tube Chip Color
Full Color
Display Function
Video
Pixels
Other, 4mm
Screen Dimension
customized
Parameter
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 4mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD2121/0606 | ||||||||||
| 3 | Density | 625,000 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 256mm×128mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 512mm×512mm×130mm | ||||||||||
| 6 | Module Resolution | 64×32 | ||||||||||
| 7 | Cabinet Resolution | 128×128 | ||||||||||
| 8 | Driving Method | 1/16 Scan | ||||||||||
| 9 | Driving IC | MBI5024 | ||||||||||
| 10 | Brightness | 1800cd/ | ||||||||||
| 11 | Contrast | 1000:01:00 | ||||||||||
| 12 | Brightness Adjustment | AC 85-264V | ||||||||||
| 13 | Power Consumption | Max Power:<1300W | ||||||||||
| 14 | Average power: <360W | |||||||||||
| 15 | Cabinet Weight | <12kg | ||||||||||
| 16 | Color Temperature | 3200K-9300K | ||||||||||
| 17 | Horizontal Viewing Angle | 120º | ||||||||||
| 18 | Vertical Viewing Angle | 90º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | Cable100m,Multimode500m,Single mode 2km |
||||||||||
| 22 | Frame Frequency | 60 Hz | ||||||||||
| 23 | Refresh Rate | >600Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve |
||||||||||
| 26 | Users can choose the recommended curve, also can be adjusted according to actual situation |
|||||||||||
| 27 | MTBF | ≥50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : 35 - 90ºC | ||||||||||
| 30 | Storage : 10 - 99 ºC | |||||||||||
| 31 | Environment Temperature | -30ºC to 60ºC; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control,For the possibility of potential failure logging, and send alarm signal to the operator (need to customize) |
||||||||||
| 33 | Self-checking Technique | LED a single point of self-inspection, communications test, power test, temperature monitoring (need to customize) |
||||||||||
| 34 | System Operating Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 85-264V | ||||||||||
| 36 | Protection | waterproof, dustproof, high temperatureproof,anti-corrosion, anti-burning,anti-static,shake proof,thuner-proof,the system with smoke alarm and temperature alarm function. (need to customize) |
||||||||||
