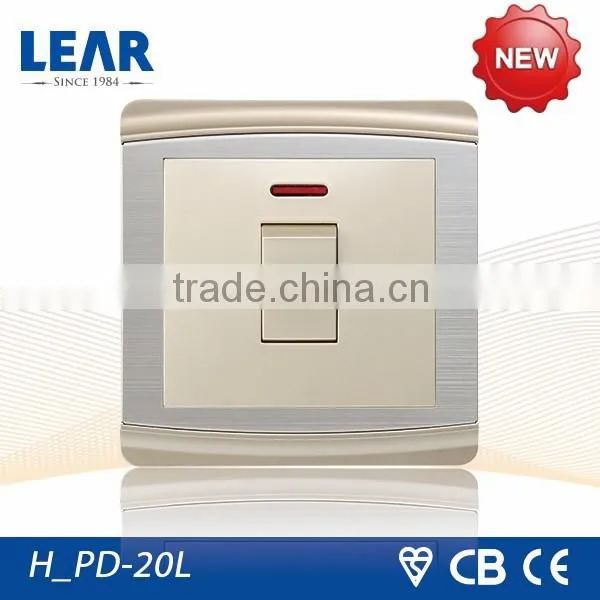

New Arrival Honor Range 20A Electronic Switch

Name: New Arrival Honor Range 20A Electronic Switch
Brand: LEAR
SKU: 120024527

Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

LEAR

Model Number:

H_PD-20L

Size:

86mm*86mm

Lear Electric (Kunshan) Industry Appliance Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Brand Name LEAR

Model Number H_PD-20L

Size 86mm*86mm

Max. Current 20AX

Max. Voltage 250V AC

Mechanical Life 40000 on-off times

_{Characteristics}

Concise and simple profile, easy installation.

Fire resistant by adopting high strength PC materisal.

Inside electric struction using top class Phosphor copper for good electric conduction.

Main
Range of product	Honor series
Product code	H_PD-20L
Product name	20A 1 gang 2 pole electronic switch with neon
Product or component type	20A
Device presentation	250V~
Complementary
Switch function	1-way,2 Pole with earth
Actuator	Rocker
Pilot light	Neon indicator
Number of gangs	1 gang
Colour tint	Silver stainless steel + Champagne
Projecting depth	8 mm
Device mounting	Flush
Mounting support	Wall mounted
Fixing mode	By screw M3.5
Fixing center	60.3 mm
Embedding depth	>= 35 mm
Rated current	20 AX
Rated operational voltage	250 V AC
Network frequency	50-60HZ
Contacts material	Brass and phosphor bronze
Connections - terminals	Brass pillar terminal
Terminal identifier	L1 N1 L2 N2
Tightening torque	0.4 N.m
Clamping connection capacity	4mm²
Width	86mm
Height	86mm
Material
Front-plate	Polycarbonate with painting +stainless steel
Back-frame	1.2mm steel
Back-base	Polycarbonate
Contacts material	Silver
Conductive parts	Brass and phosphor bronze
Environment
Standards	IEC 60669-1 MS IEC 60669-1 SS 227
Ambient air temperature for operation	-5...40 °C
Relative humidity	0...95 %
Environmental characteristic	Indoor use
Contractual warranty
Period	12 YEARS
