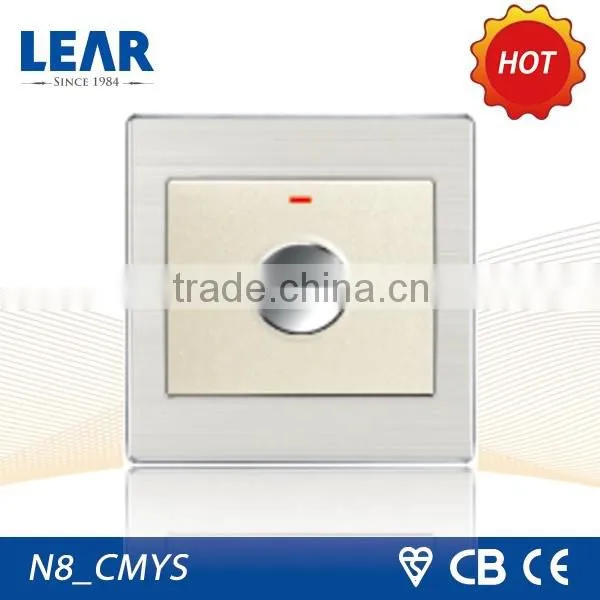

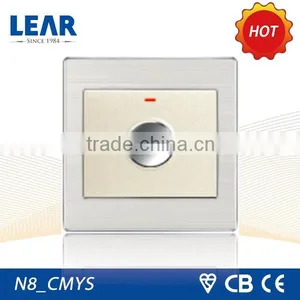

Modern Design N8 Series Electric Light Sensor Switch

Name: Modern Design N8 Series Electric Light Sensor Switch
Brand: LEAR
SKU: 120025095

Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

LEAR

Model Number:

N8_CMYS

Lear Electric (Kunshan) Industry Appliance Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name LEAR

Model Number N8_CMYS

Size 86*86cm

Max. Current 0.5A

Max. Voltage 250V

Mechanical Life More than 40,000 times On-Off

Product Description

_{Characteristics}

N8 series switches&sockets

Fashionable and modern product profile, unique from-plate structure design, easy for installation.

1,Front-plate is made of high grade stainless steel , and properly treated

2,More safety and reliable by using 1 mm back product frame

3,Unique structure integrating switch front-plate with button, only take off one time to have switch fixed into wall

4,High quality copper terminals applied for low electrical resistance and good conductivity

5,Applied high grade PC material, good fire resistant capability, keep good figure and color after long time of using

6,High quality copper applied for low electrical resistance and good conductivity

7,Available in various colors

Main
Range of product	N8 series
Product code	N8_CMYS
Product name	N8 series electric light sensor switch
Product or component type	Switch
Device presentation	Complete mechanism
Complementary
Number of gangs	1 gang
Colour tint	Silver or Champagne
Projecting depth	8 mm
Device mounting	Flush
Mounting support	Wall mounted
Fixing mode	By screw M3.5
Fixing center	60.3 mm
Embedding depth	>= 35 mm
Rated current	0.5A
Rated Power	60W
Rated operational voltage	250V AC
Network frequency	50-60HZ
Contacts material	Brass and phosphor bronze
Connections - terminals	Brass pillar terminal
Terminal identifier	L1 L2
Tightening torque	0.4 N.m
Clamping connection capacity	2.5 mm²
Width	86mm
Height	86mm
Material
Front-plate	Polycarbonate
Back-frame	1.2mm steel with insulation varnish
Back-base	Polycarbonate
Conductive parts	Brass and phosphor bronze
Environment
Standards	IEC 60669-1
Ambient air temperature for operation	-5...40 °C
Relative humidity	0...95 %
Environmental characteristic	Indoor use
Contractual warranty
Period	10 YEARS
