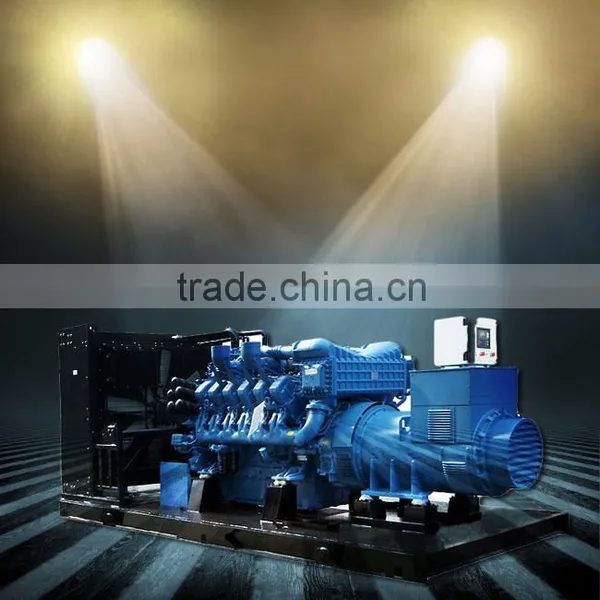

CE Approved Open Type MTU diesel generator set prime power 2250kva :
Safety
Design, production and testing of the generator sets comply with EU CE safety standard;
Equipped with circuit breaker to avoid possible electric risk at re- startup when engine stops in emergency.
The controller has a historical operation recording function for troubleshooting and inspection.
Powerful Engines
Adopts world-famous engines,with low noise and low emission.
Rugged structure ensures lowest vibration.
Common rail system: (for some models) significantly lowers the combustion temperature, and also leads to cleaner exhaust.
For the turbocharged machines, the carbon dioxide (CO2) emission is reduced.
Control System
Micro-processor cored digital system.
Multiple languages, automatic control.
Connected with the mains through ATS, which can help realize automatic transfer between the mains and the generators. Also, multiple generators can be paralleled for bigger power needs.
| 1. Specification of genset | ||||||||
| Gensets model | KD-2275GF | |||||||
| Prime power | 2275kva | |||||||
| Standby power | 2500Kva | |||||||
| Rated Voltage | 380/220V | |||||||
| Rated frequency(HZ) | 50HZ | |||||||
| Rated Speed | 1500rpm | |||||||
| Power Factor | 0.8(lagging) | |||||||
| Dimensions(mm) (L×W×H) | 6550*2600*2500 | |||||||
| Net Weight(kg) | 17600 | |||||||
| 2. Specification of diesel engine | ||||||||
| Engine brand | MTU | |||||||
| Engine model | 16V4000G43 | |||||||
| Number of Cylinders | 16 | |||||||
| Cylinder arrangement | In V | |||||||
| Cycle | Four stroke | |||||||
| Aspiration | Turbo,air/water cooling | |||||||
| Fuel System | Direct Injection | |||||||
| Bore×Stroke (mm×mm) | 170/210 | |||||||
| Displacement (Liter) | 76.3 | |||||||
| Compression Ratio | 16.5:1 | |||||||
| Max standby power at rated RPM | 2222KW | |||||||
| Speed Governor | Electronic | |||||||
| Cooling System | Forced Water Cooling Cycle | |||||||
| Total Oil capacity (L) | 300L | |||||||
| Fuel Consumption at 100% Load (L/h) | 840L/H | |||||||
| Starting Method | DC48V electrical starting | |||||||
| 3. Specification of alternator | ||||||||
| Alternator brand | Marathon | |||||||
| Alternator model | MX-1800-4 | |||||||
| Number of Phase | 3 | |||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||
| Number of Bearing | 1 | |||||||
| Protection Grade | IP23 | |||||||
| Altitude | ≤1000m | |||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |||||||
| Insulation Class | H | |||||||
| Telephone Influence Factor (TIF) | ≤50 | |||||||
| THF | ≤2% | |||||||
| Voltage Regulation, Steady State | ≤±1% | |||||||
| Transient State Voltage | ≤-15%~+20% | |||||||
| 4. The components of the generator set | ||||||||
| 1)MTU engine 2)Marathon alternator 3)Automatic start control panel | ||||||||
| 5.General Features: | ||||||||
| MTU Engine | ||||||||
| Radiator 40°C max, fans are driven by Belt, with safety guard | ||||||||
| 24V charger alternator | ||||||||
| Marathon Alternator | ||||||||
| Absorber | ||||||||
| Dry type air filter, fuel filter, oil filter | ||||||||
| Main line circuit breaker | ||||||||
| Standard control panel | ||||||||
| Ripple flex exhaust pipe, exhaust siphone, flange, muffler | ||||||||
| 12V*4 batteries, rack and cable | ||||||||
| User manual | ||||||||
| 6. Specification of control Panel | ||||||||
| The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function. | ||||||||
| The features of controller: | ||||||||
| KAIXUN is a new generation Automatic control module for single Genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory. | ||||||||
| The module also monitors and protects the engine, indicating operational status, fault conditions andmetering on the front panel LCD and LED’s. | ||||||||
1) Valve seat materials are imported special steel, valve use wear-resistant materials and the latest technology.
2) Piston and cylinder head production using new materials, high-performance low-emission hybrid rapid combustion cylinder. Combustion control technology to protect machine film.
3) Change the duration of the ignition control,long-life spark plugs.
4) Intergrated control diagnostics, intergrated approach to control the explosion-proof technology.
1) Valve seat materials are imported special steel, valve use wear-resistant materials and the latest technology.
2) Piston and cylinder head production using new materials, high-performance low-emission hybrid rapid combustion cylinder. Combustion control technology to protect machine film.
3) Change the duration of the ignition control,long-life spark plugs.
4) Intergrated control diagnostics, intergrated approach to control the explosion-proof technology.
1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.
3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have
distributors all over World that support after sale service.
4. Spare parts supply:
We provide all kinds of spare parts and technical support.
5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
Warranty
warranty is according to our standard conditions:12 months or 1,000 running hours, subject to the earlier one (artificial damage to be an exception).
Spare Parts
1.Q:What's the power range of your generator sets?
A:The main products are ranging from 5KW to 2500KW.
2.Q:How many types of the generator sets do you have?
A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.
3.Q:Where is your factory located?
A: Our factory is in Taizhou city, Jiangsu Province, China.
It's near Shanghai & Ningbo port.
4.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
5.Q:How about quality control in your factory?
A:"Quality is the life".
We are always paying great attentions to
quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
