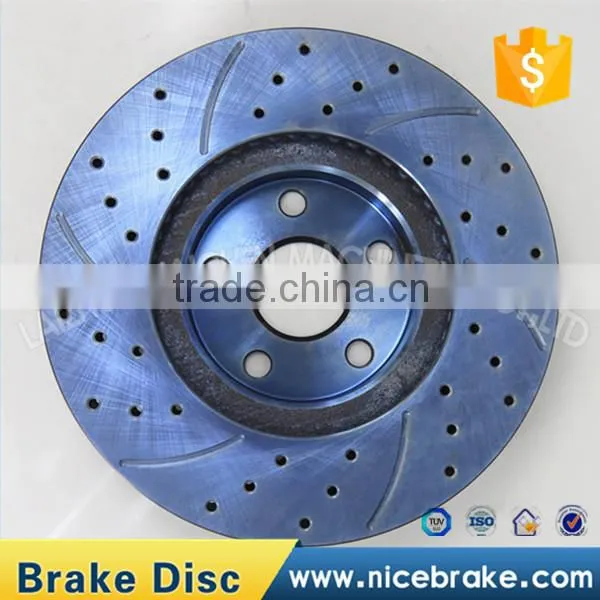

Help CenterOEM:43512-42010 Brake System Gray Iron Brake Disc
Related Products
-
OE:UC86-33-25X Auto Parts Brake System Brake Disc,auto Brake SystemUS$ 8 - 12MOQ: 100 Pieces -
OE:2104230412 High Quality Gray Iron Rear Disc BrakeUS$ 6 - 18MOQ: 100 Pieces
-
OE: 4246R2 Customized Auto Spare Parts Brake Discs,disc RotorUS$ 4 - 10MOQ: 100 Pieces
-
OE:89040374 Auto Parts Front Vented Disc Brake,auto Brake SystemUS$ 6 - 16MOQ: 100 Pieces
-
OE:18021354 Auto Parts of Front Disc Brake ,Auto Brake SystemsUS$ 6 - 28MOQ: 300 Pieces
1. Must meet G3000 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max.15 ferrite. Free from chill
4. Physical Properties
Tensile Strength: Min. 200 N/mm
Brinell Hardness: 190 ~ 230HB
1. Must meet G3000 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max.15 ferrite. Free from chill
4. Physical Properties
Tensile Strength: Min. 200 N/mm
Brinell Hardness: 190 ~ 230HB
Laizhou Haichen Machinery Co., Ltd is located in Shangdong province of China,specializing in producing brake discs, brake drums, brake pads and brake rotors. It was established in 2014. With a large workshop, professional production equipment, a world-leading technology and formulations. Blanks from the furnace to the production, processing, packaging and cleaning stop production, including the balance,the line of drilling, decromet, painting, galvanizing production and processing. OEM number or sample can be processed production. We have a strict and complete quality contral system which ensures that each product can meet customers' requiremnts.
Our plant and equipment
1.How much deposit do I pay for? |
Usually it takes 30% payment as deposit. |
2.What’s your payment terms? |
We accept L/C and T/T or West Union through FOB QINGDAO |
3.How can I confirm the validity of products? |
Don’t worry, we will provide OEM number for your to refer, what’s more, we will provide sample pictures for you to recheck! |
4.What’s your goods quality? Will them be secondhand? |
Our products all come from factory directly, they are totally new. We will firmly refuse to sell potential safety hazard products!!! |
5.If I need the product on your website can't find, can you give me? |
|
Of course, you need the product can email tell me, then I will give you as soon as possible to confirm the product.
|
