Gabion Mesh
Also called gabion basket,Gabion box,Rockfall netting,Stone gabion box
Material: Hot dipped galvanized wire, Galfan Wire,Pvc Coated wire
Wire diameter: mesh wire,edge wire, binding wire
Zinc coated:> 245g/sqm
Tensile strength:>38kg/sqm
Introduction

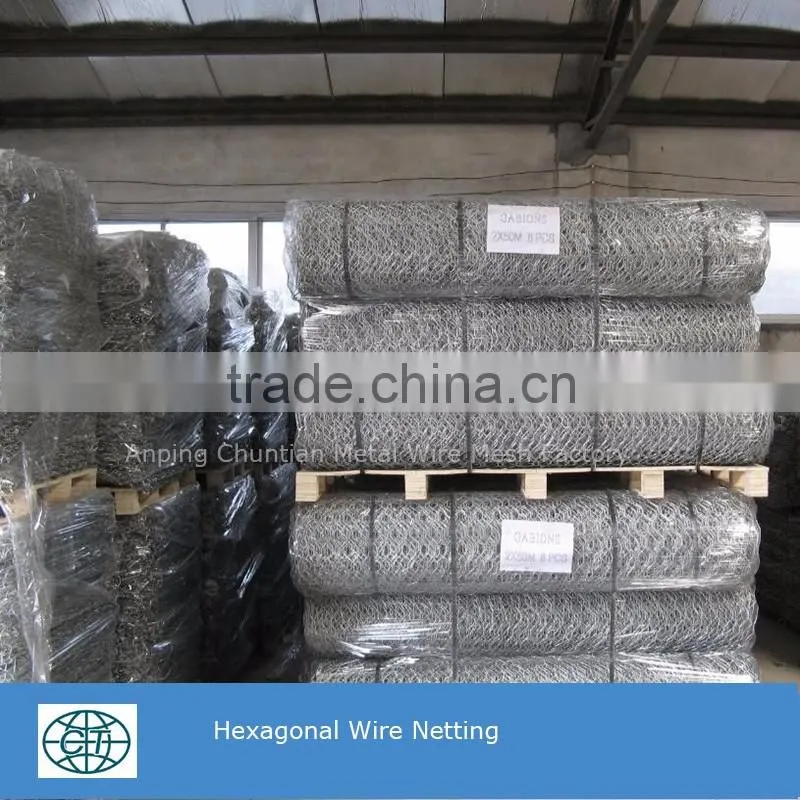

Gabion mesh is made of hexagonal wire netting.
the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.
Gabion mesh Features:
1.Economic. Just fill the stone into the gabion and seal it.
2.Simple installation. No special technology needed.
3.Weather proof under natural destroy, corrosion resistant.
4.No collapse even under big scope of deforming.
5.Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
Specification
Opening(mm) |
Wire Dia (mm) |
Wire Dia(PVC Coated) |
Strands |
60x80 |
Ø2.0-2.8 |
Ø2.0/3.0-2.5/3.5 |
3 |
80x100 |
Ø2.0-3.2 |
Ø2.0/3.0-2.8/3.8 |
3 |
80x120 |
Ø2.0-3.2 |
Ø2.0/3.0-2.8/3.8 |
3 |
100x120 |
Ø2.0-3.4 |
Ø2.0/3.0-2.8/3.8 |
3 |
100x150 |
Ø2.0-3.4 |
Ø2.0/3.0-2.8/3.8 |
3 |
120x150 |
Ø2.0-4.0 |
Ø2.0/3.0-3.0/4.0 |
3 |
Standard Mesh And Wire Sizes |
Gabion Box Sizes |
Mattress Sizes |
||||||
Standard Mesh Size |
Wire Dia |
Selvage |
Length |
Width |
Height |
Length |
Width |
Height |
60x80 |
2.0 |
2.7 |
1.0 |
0.5 or 1.0 |
0.5 or 1.0 |
3.0 |
2.0 |
0.17, 0.23 or 0.30 |
80x100 |
2.2 |
3.0 |
1.5 |
1.0 |
0.5 or 1.0 |
6.0 |
2.0 |
0.17, 0.23 or 0.30 |
100x120 |
2.7 |
3.4 |
2.0 |
0.5 or 1.0 |
0.5 or 1.0 |
|
|
|
|
|
|
3.0 |
1.0 |
0.5 or 1.0 |
|
|
|
|
|
|
4.0 |
1.0 |
0.5 or 1.0 |
|
|
|
Welded Mesh Panel Gabion Box

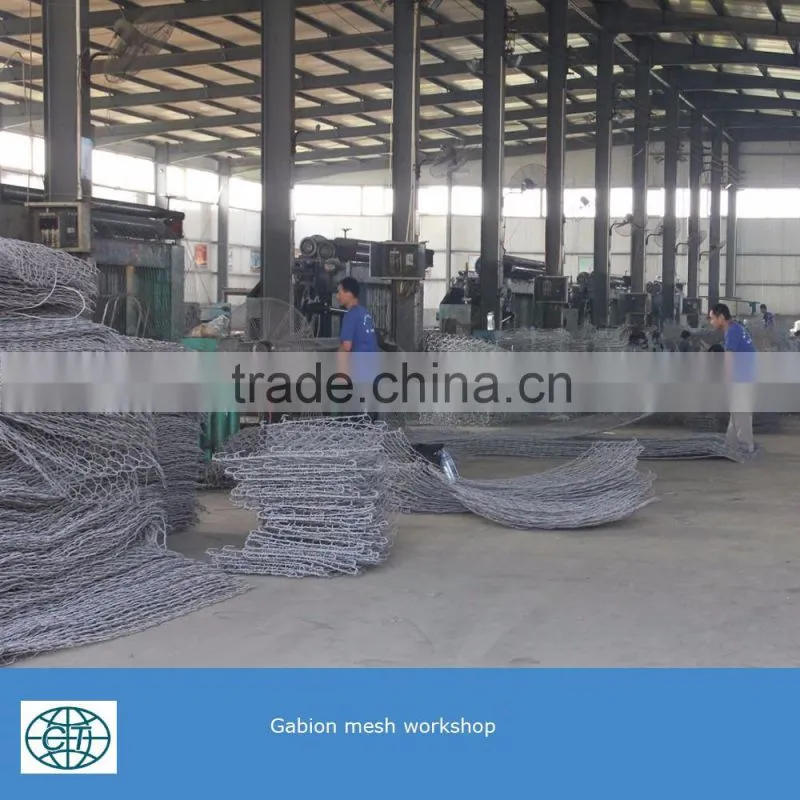

Factory and Office
Certificate
