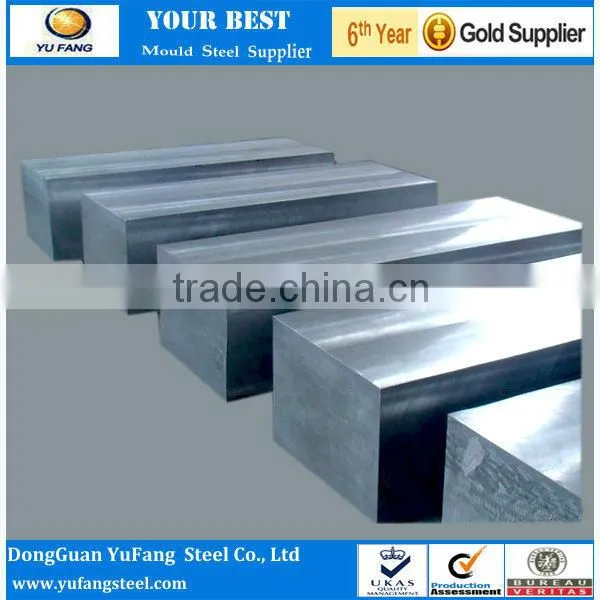

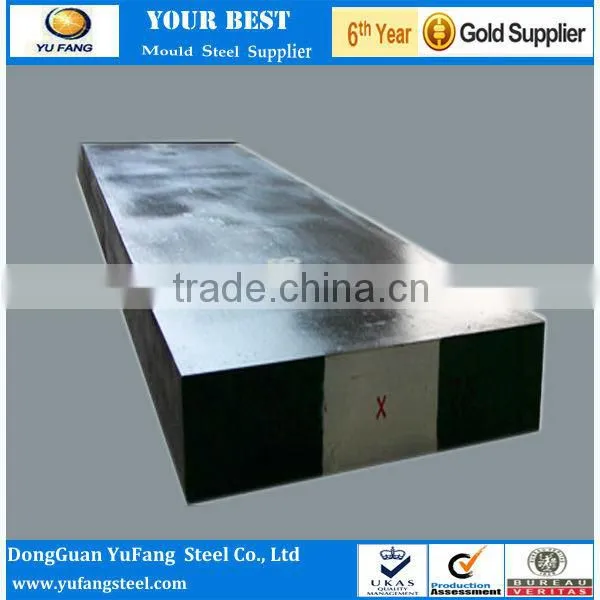

2083 ISO-B Mould Steel Plate
2083 ISO-B Mould Steel Plate Made In China
1. Chemical composition and comparable steel:
C:0.36-0.42 Si:<1.0 Mn:<1.0 Cr:12.5-14.5 P<0.02 S<0.005
comparable steel :SCM414 1.2083 2083 ISO-B M310 HPM38 S-Star
2. Hardness:
Hardened hardness: HRC=48~52
3. Size specification
l Thickness: 16~400MM
l Width: 185~2200MM
l Length: 1500~2000MM

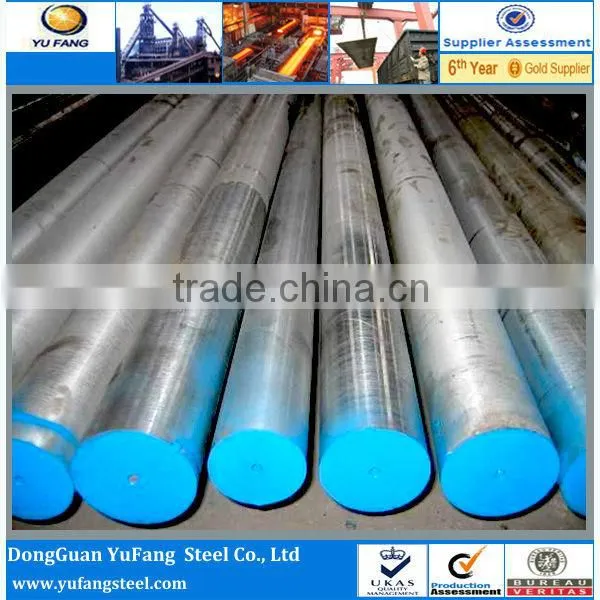

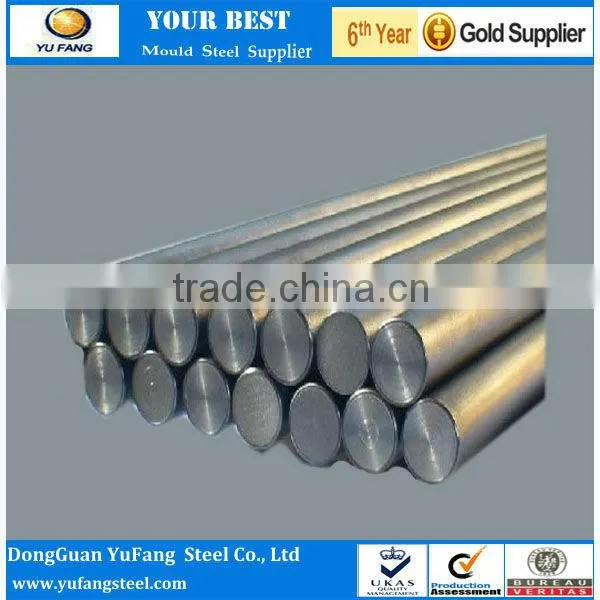

l Round bar: 30~350MM
And we can also provide the size you required.
4. Surface condition: Black surface / Grinding / Polishing / Milling / Machined……

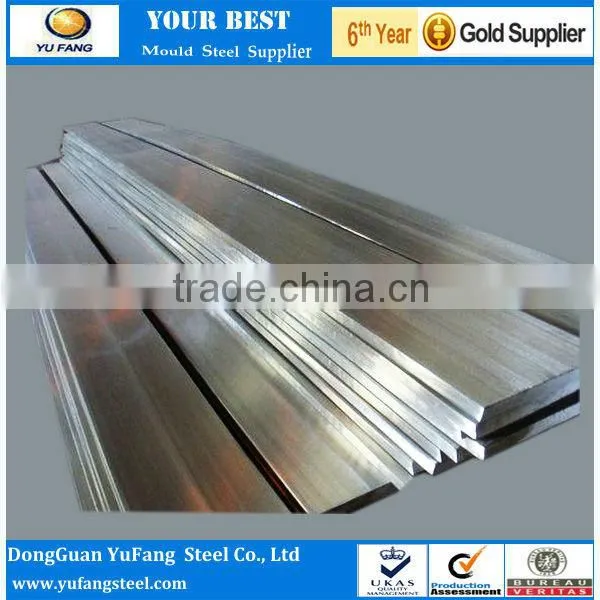

5. shape:flat / round bar / square bar / sheet / plate ……
6. Heat treatment: Normalized / Annealed / Quenched / tempered
7. Inspection: Ultrasonic test according to SEP 1921-84 Gr3, Class C/c or D/d
8. Delivery condition:
l Hot rolled or forging
l Black surface / Grinding / Polishing / Milling / Machined
l Hardened & tempering & annealing
l EAF or ESR material
9. Payment terms:
20% advance by TT; Balance pay before the shipment against shipping documents or irrevocable LC at sight
10. Delivery time: 3-15 days after advanced payment
11. Material character
l Good mechanical property
l High quenching
l Make surface have equal hardness after deal with it
l Nice polishing
l Low roughness
l Normally, it should make the heat-treatment to harden condition before use
l It can be used directly after the mould machined
l Deal with surface induration when it necessary
12. Export Market Distribution:
Market |
Revenue(Previous Year) |
Total Revenue (%) |
North America |
USD 214,283 |
1.19 |
South America |
USD 310,660 |
1.73 |
Eastern Europe |
USD 224,190 |
1.25 |
Southeast Asia |
USD 1,393,351 |
7.76 |
Mid East |
USD 330,185 |
1.85 |
Eastern Asia |
USD 55,220 |
0.31 |
Domestic Market |
USD 15,418,994 |
85.91 |

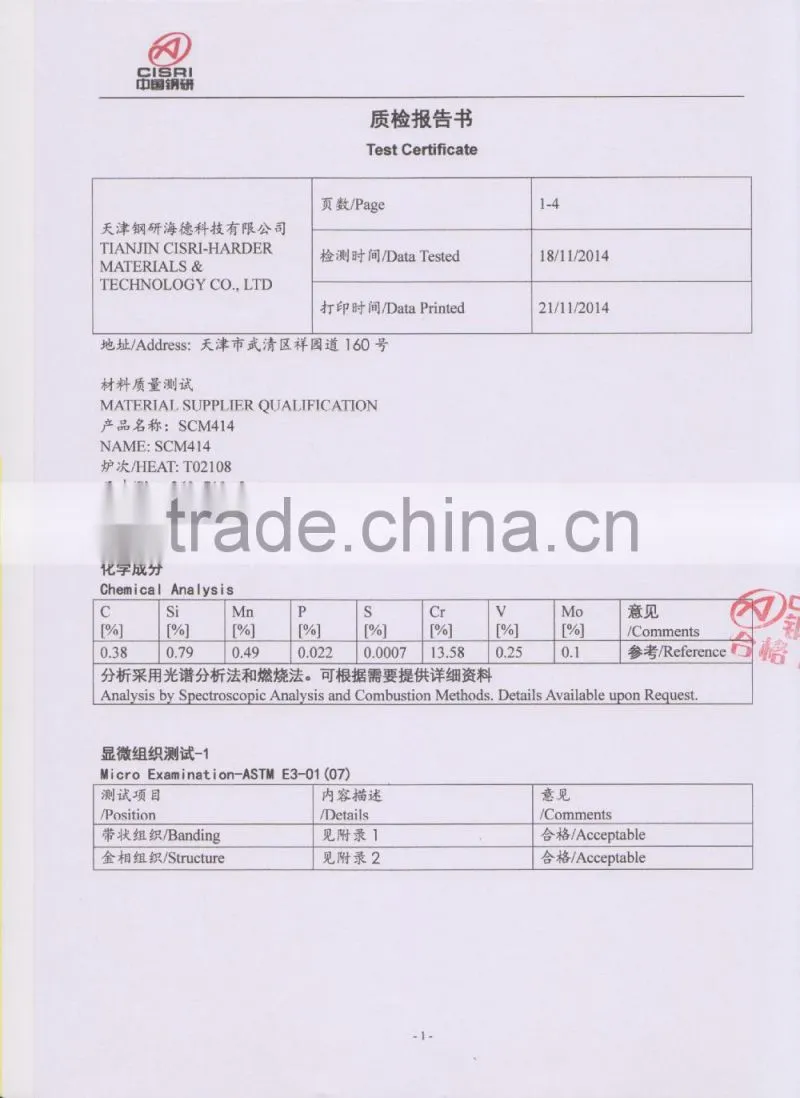

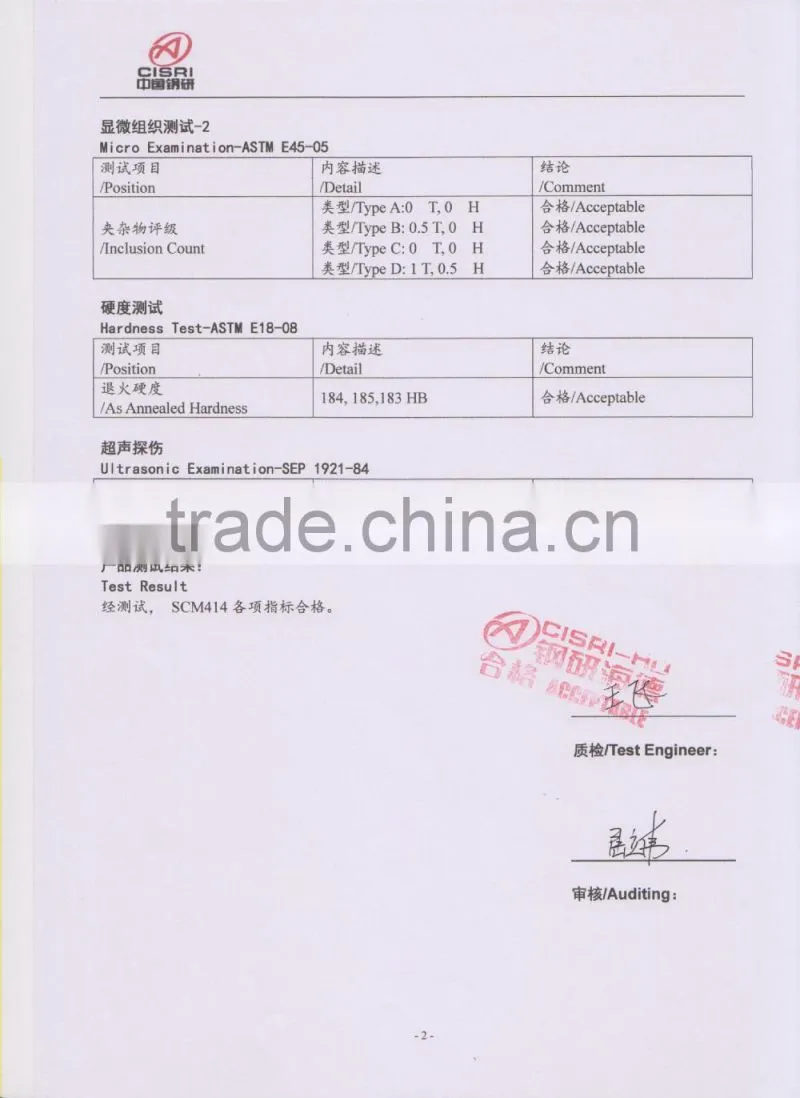

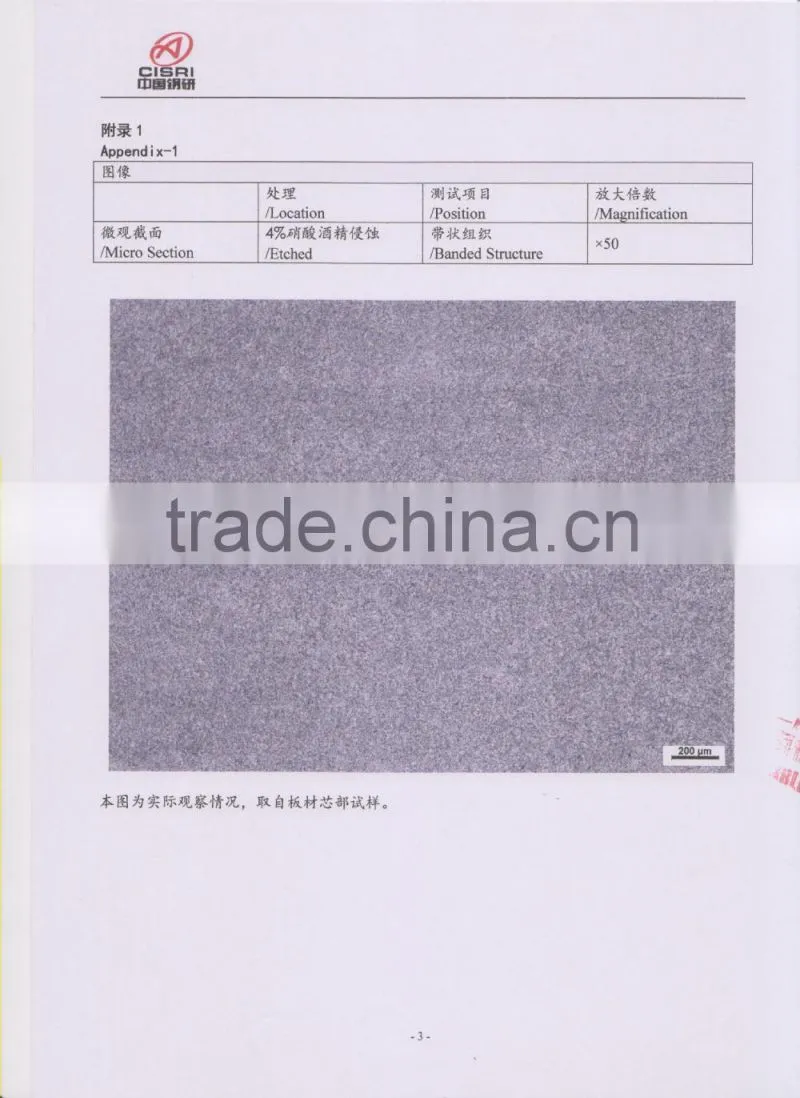

13. Test report:
14. The main products in our company:
|
GB China |
AISI USA |
JIS Japan |
DIN German |
SS Sweden |
NF French |
|
Plastic mould steel |
3Cr2Mo |
P20 |
|
1.2311 |
638 |
|
3Cr2NiMo |
P20+Ni |
|
1.2738 |
718 |
|
|
42CrMo |
4140 |
SCM440 |
1.7225 |
|
|
|
9CrWMn |
O1 |
SKS3 |
1.2510 |
DF-3 |
90MnWCrV5 |
|
4Cr13 |
420 |
|
1.2085 |
S136 |
|
|
3Cr17Mo |
|
|
1.2316 |
|
|
|
10Ni3MnCuAl |
P21 |
NAK80 |
1.2735 |
|
|
|
Hot work mould steel |
5CrNiMo |
L6 |
SKT4 |
1.2714 |
|
|
4Cr5MoSiV1 |
H13 |
SKD61 |
1.2344 |
8407 |
|
|
4Cr5MoSiV |
H11 |
SKD6 |
1.2343 |
|
|
|
Cold work mould steel |
Cr12 |
D3 |
SKD1 |
1.2080 |
|
|
Cr12MoV |
D5 |
|
1.2601 |
|
|
