Industrial Fire Welding Blankets
Application: widely used for draping over equipment or floor surfaces in welding areas,or as a vertical shield to protect from sparks,spatter,and slag.
•apply to light/medium/heavier sparks,spatter and slag
•550~1400°C
•more pliable,making it easier to frap over and wrape around objects
•can be vertical(hanging) and horizontal(flat)application.Thinner materials recommanded vertical, heavier materials recommander horizontal and/or with higher temperature rating.
•thickness:0.2mm~1.0mm
•Finished blanket size may vary with or without eyelets in height and width.
1) Material: Fiberglass or Fiberglass with kinds of coating
2)Specifications
1.Light Duty Welding Blanket: 13 ~ 18OZ.
2.Medium Duty Welding Blanket: 20 ~ 30 OZ
3.Heavy Duty Welding Blanket: 32 ~ 50OZ
Available size:
| 1.2X1.2M | 1.2X1.5M | 1.2X1.8M | 1.8X1.8M | 1.8X2.4M | 2.4X2.4M | 3X3M | 6X9M | 12X12M | Custom Size |
| 4'X4' | 4'X5' | 4'X6' | 6'X6' | 6'X8' | 8'X8' | 10'X10' | 20'X30' | 40'X40' |
Guidance of fabrics selection:
The type of welding application determines which type of fabrics are needed.
-Light Duty Welding Blankets(13OZ to 18OZ) - general purpose welding, light sparks, minimal spatter
-Medium Duty Welding Blankets (20OZ to 30OZ)- heavier welding, sparks, spatter, light slag
-Heavy Duty Welding Blankets (32OZ to 50OZ)- heavy sparks, spatter, slag, possibility of molten metal
Difference between coated welding blankets and uncoated welding blankets:
-Coated fabrics offer better abrasion and burn through resistance. They are stiffer which allow spatter and slag to roll off more easily.
-Uncoated fabrics are more pliable and are easier to drape over and wrap around objects.
What welding blanket weight and thickness to use:
The performance of welding blankets depends on many factors. However, generally heavier and thicker welding blankets provide better protection and take longer to burn through.
Welding blanket for horizontal or vertical welding application
For vertical welding blanket application, thinner fabrics may be used. For horizontal or flat welding blanket application, heavier fabrics and higher melting temperature fabricss should be used.

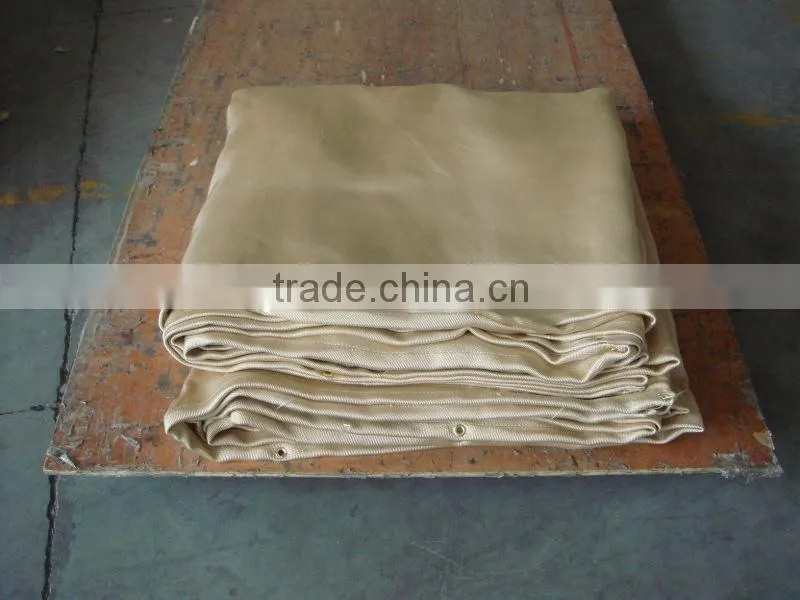

Products Picture:
High strength Jointing:
Seam with High Quality Brass Grommet/eyeltes:
Normal Packing:
1pc/Polybag or PVC bag
