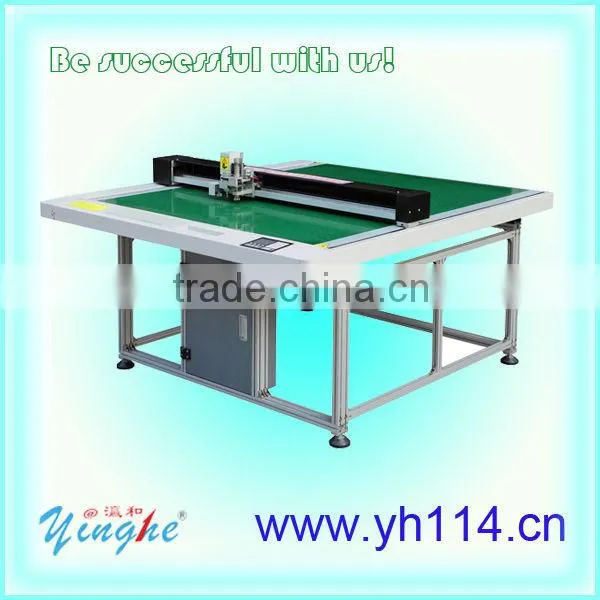

Carton and Paper Box Computerized Proofing Machine

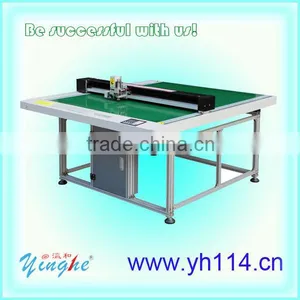

Carton and Paper Box Computerized Proofing Machine thumbnail-1
Carton and Paper Box Computerized Proofing Machine photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
yinghe
Model Number:
YH-1290X
Contact Supplier Request Quote Chat Now
Guangzhou Yinghe Electronic Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name yinghe
Model Number YH-1290X
Voltage 220V/110V
Paper Feed Width 900MM
Cutter Pressure 0.2-3mm
Cutting Width 900MM
Cutting Speed Maxi 1000mm/s
Cutting Length 1200MM
Repeat Cutting YES
Size 1280*1590*1000mm

Specifications

1.cutting size 900mm*1200mm
2.cutting thickness:0.2-3mm
3.with Vacuum absorption
4.CAD software support
5.easy to operate

Specification
1. It is the product with the cooperation of Sine-swiss technologies A product of Sino-Swiss technologies,and servomotors imported from Switzerland.The motor can smoothly turn without vibrating,to cut corrugated materials and cardboard.
2. The Italian AMT srraight-line guide rails are used as drive rails to ensure the machines will run in a steady manner and at a high accuracy.
3. There are 8 different stroke setting; half cut,full cut,creasing,plotting are possible.Particular good for accuracy requirement in premium box with quality cardboard,grey broad with all computer control.
4. The machines have three functional heads: Self Turn Cutting head,Creasing wheel,plot pen for 3mm below thickness material like,corrugation board,plastic sheets,leather,textile,foam board,KT board etc.
5. Date wire all imported from Germany.
6. Table mat are imported from USA,the fiber board are durable,with good,permeability,very stable in thickness and shape.
7. Date is transfer by Ethernet,the most stable method.File can be exported to machine directly from Adobe Illustrator,Coraldraw without conversion to maintain maximum accuracy.
8. Machine can ruu at the maximum speed of up to 1500mm per second.
9. All fine tuning can be made with control penal on the machine.
10. Red Ultra-light positioning device for printed work can be cut accurately in easy and quickest way.
Parameter
Model YH-1209X
Cutting area 900mm*1200mm
Operation properties Computer operation and cutting machines can be used simultaneously for quick data transmission capable of continuous operations
Cutting speed Maxi 1000mm/s
Cutting Thickness 0.2-3mm
Cut materials 3mm maximum thickness materials of:lvory cardboard,gray paper,corrugated paper,plastic Sheets,composite materials and leather materials,foam board etc.
Number of pens 8 different groups of strokes,halfcut,full cut and Creasing,plotting pen
Positioning device Red Ultra-Light
Method for fixing paper Vacuum absorption
Cutting tolerance ±0.2mm
Repeat accuracy <0.05mm
Minimum circle >3mm diameter
Transmission interface Ethernet port
Format compatible Compatibility format AI software,Autocad,Coraldraw and all box software
Direcive system HP-GL and GP-GL
Digital control panel Liquid crystal display and contact button
Transmission materials Straight-line guide rails and imported synchronous belts
Vibration blade Vibration cutter head motor at 25000rpm
Supply voltage AC 220V 380V ±10%,50HZ
Overall dimension 1280*1590*1000mm
Packing size 1840*1480*520mm
G.W 240KG

 Carton and Paper Box Computerized Proofing MachineCarton and Paper Box Computerized Proofing MachineCarton and Paper Box Computerized Proofing MachineCarton and Paper Box Computerized Proofing Machine
