Specifications

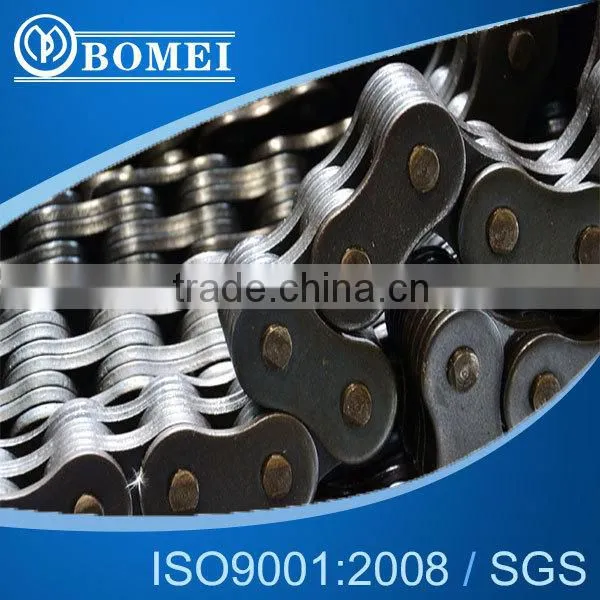

we uses the advanced CAD and CAM to design and manufacture our leaf chain/various sizes,beautiful ,good quality.
| leaf Chain ,hoisting chain ,LH ,BL AL LL series | |
| Chain type: | A series roller chain |
| Materials: | 40MN carbon steel, stainless steel (SS304) |
| Colors : | Natural, Blue, White |
| Long using life&Competitive price. | |
| OEM support. | |
| Packing: |
1pc packed in PP bag+neutral box, and then packed in standard export wooden case, also packing as your requirement,. |
specifications:
| ISO ISO Chain No. |
ANSL ANSL Chain No. |
Pitch |
Chain Lacing |
Plate depth |
Plate thickness |
Pin diameter |
Pin length |
Ultimate tensile strength |
Average tensile strength |
weight per meter |
| P | h2 max |
T max |
d2 max |
L max |
Q min |
Q0 | q | |||
| mm | mm | mm | mm | mm | kN/LB | kN | kg/m | |||
| LH0822 | BL422 | 12.700 | 2X2 | 12.07 | 2.08 | 5.09 | 11.05 | 22.2/5045 | 27.6 | 0.64 |
| LH0823 | BL423 | 2X3 | 13.16 | 22.2/5045 | 27.6 | 0.80 | ||||
| LH0834 | BL434 | 3X4 | 17.40 | 33.4/7591 | 41.4 | 1.12 | ||||
| LH0844 | BL444 | 4X4 | 19.51 | 44.5/10114 | 56.0 | 1.28 | ||||
| LH0846 | BL446 | 4X6 | 23.75 | 44.5/10114 | 56.0 | 1.60 | ||||
| LH0866 | BL466 | 6X6 | 27.99 | 66.7/15159 | 81.7 | 1.92 | ||||
| LH0888 | BL488 | 8X8 | 36.45 | 89.0/20227 | 109.4 | 2.56 | ||||
| LH1022 | BL522 | 15.875 | 2X2 | 15.09 | 2.44 | 5.96 | 12.90 | 33.4/7591 | 43.1 | 0.88 |
| LH1023 | BL523 | 2X3 | 15.37 | 33.4/7591 | 43.1 | 1.10 | ||||
| LH1034 | BL534 | 3X4 | 20.32 | 48.9/11114 | 65.6 | 1.50 | ||||
| LH1044 | BL544 | 4X4 | 22.78 | 66.7/151559 | 84.5 | 1.80 | ||||
| LH1046 | BL546 | 4X6 | 27.74 | 66.7/151559 | 84.5 | 2.20 | ||||
| LH1066 | BL566 | 6X6 | 32.69 | 100.1/22750 | 125.1 | 2.65 | ||||
| LH1088 | BL588 | 8X8 | 42.57 | 133.4/30318 | 169.5 | 3.50 | ||||
| LH1222 | BL622 | 19.050 | 2X2 | 18.11 | 3.30 | 7.94 | 17.37 | 48.9/11114 | 63.6 | 1.45 |
| LH1223 | BL623 | 2X3 | 20.73 | 48.9/11114 | 63.6 | 1.80 | ||||
| LH1234 | BL634 | 3X4 | 27.43 | 75.6/17181 | 102.8 | 2.50 | ||||
| LH1244 | BL644 | 4X4 | 30.78 | 97.9/22250 | 120.9 | 2.90 | ||||
| LH1246 | BL646 | 4X6 | 37.49 | 97.9/22250 | 120.9 | 3.60 | ||||
| LH1266 | BL666 | 6X6 | 44.20 | 146.8/33364 | 190.8 | 4.30 | ||||
| LH1288 | BL688 | 8X8 | 57.61 | 195.7/44477 | 238.8 | 5.80 | ||||
| LH1622 | BL822 | 25.400 | 2X2 | 24.13 | 4.09 | 9.54 | 21.34 | 84.5/19204 | 108.2 | 2.20 |
| LH1623 | BL823 | 2X3 | 25.48 | 84.5/19204 | 108.2 | 2.70 | ||||
| LH1634 | BL834 | 3X4 | 33.76 | 129.0/29318 | 170.0 | 3.80 | ||||
| LH1644 | BL844 | 4X4 | 37.90 | 169.0/38409 | 214.6 | 4.30 | ||||
| LH1646 | BL846 | 4X6 | 45.18 | 169.0/38409 | 214.6 | 5.40 | ||||
| LH1666 | BL866 | 6X6 | 54.46 | 253.6/57636 | 324.5 | 6.50 | ||||
| LH1688 | BL888 | 8X8 | 41.02 | 338.1/76841 | 432.7 | 6.50 |
Advantage:
we have produced Various sizes A,B series roller chains,short delivery time ,
and the price is more competitive,beautiful packing .and can customise.
|
(1) Roller chains: A series(9.525-76.2mm pitches), B series (9.525-50.8mm pitches) |
|
(2) Motorcycle chains : 420 428, 428H, 530, 530H, 630, 630H etc |
| (3) Short pitch conveyor roller chain attachments: A-1, A-2. K-1, K-2 H1 H2 |
|
(4) Double pitch transmissions v& conveyor chains : 2040, 2050, 2060, 2080 2100 2120 etc |
| (5) Leaf chains: LH series, AL series |
| (6) Stainless steel roller chains |
PACKAGING:
Usually, we pack chain in polybag with neutral box(color box), then put the box in the wooden case. We offer yellow box for free, which marked length and size only, customer also may offer his box sample to us. Our wooden case dimension: 105 X 85 X 75CM (1000KG could be packed) Usually 20' container could pack about 20-25 ton, but it depend on the requirment of the customs of every country.
SHIPPING:
shipment by sea or by Railroad Nearest port:Ningbo/Shanghai
Dongyang Yong Mei Chain Co., Ltd. is located in the machinery manufacturing industrial area, Nanma, Dongyang City. We are located near the well-known "Oriental Hollywood" of Hengdian. It takes only half an hour's drive to "Chinese Commodity City" - Yiwu and "Chinese Hardware City" - Yongkang. Now, our company covers an area of 120,000sqm, with a construction area of 60,000sqm.
Our company professionally produces "Bomei" chains, with series of A and B. Our products include standard roller chains, conveyor chains, leaf chains, heavy-duty cranked-link transmission chains, farm machinery chains, motorcycle chains and other nonstandard chains.
Our company uses advanced CAD and CAM to design and manufacture products. Our equipment is advanced and imported from Italy. Our products are reliable and have attained ISO9001:2000 Quality Assurance System Certification.
Our company has a group of skillful members and excellent product testing technology.
With high quality and good service, we welcome customers both from at home and abroad to arrange business visit or send messages to us for business cooperation.
Q : what’s the chain color ?
A : Blue or steel nature color
Q : what’s the production length of chain in usually ?
A : 10fT ,5meters long ,any other length is ok.
Q : What’s the Packing ?
A : c hain+polybag +neutral cartion or colorbox .+woodencase .
