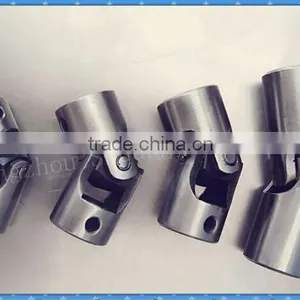

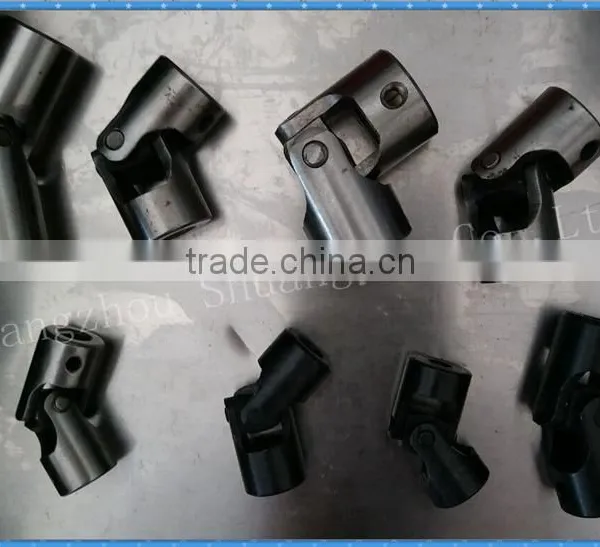

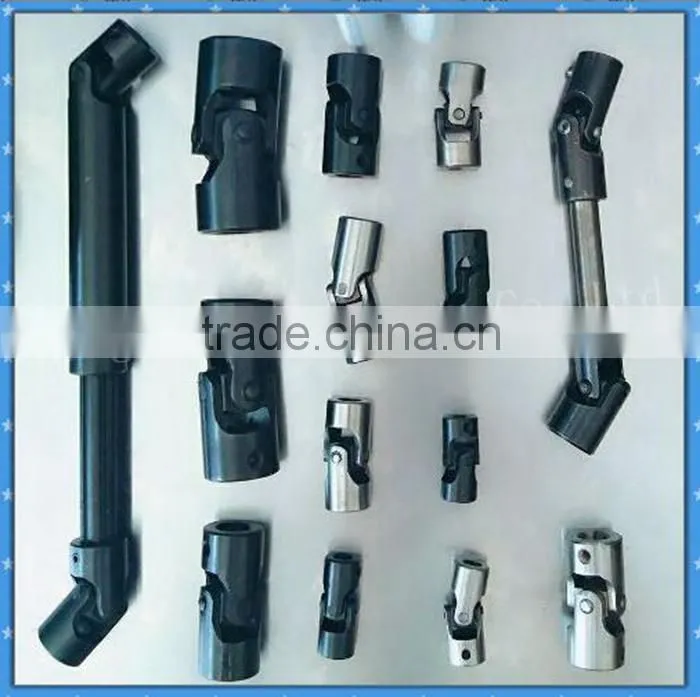

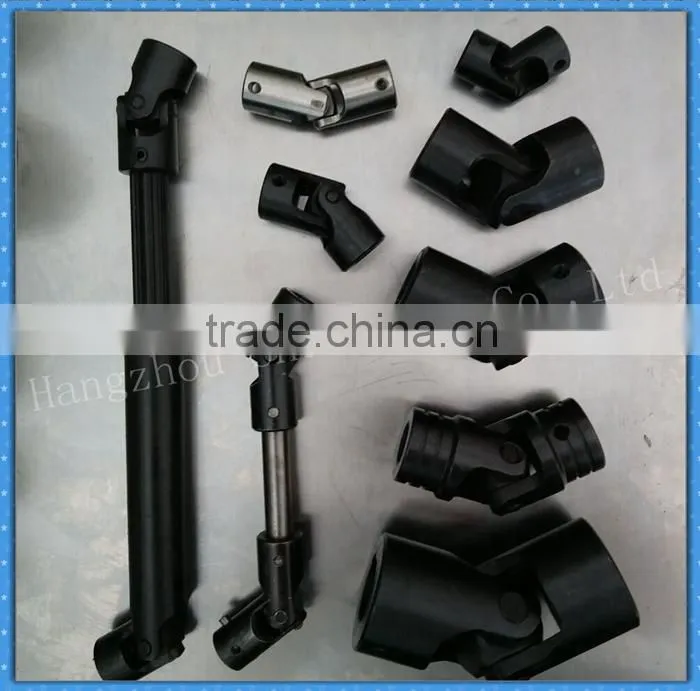

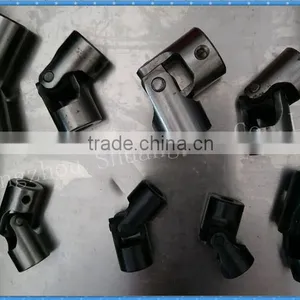

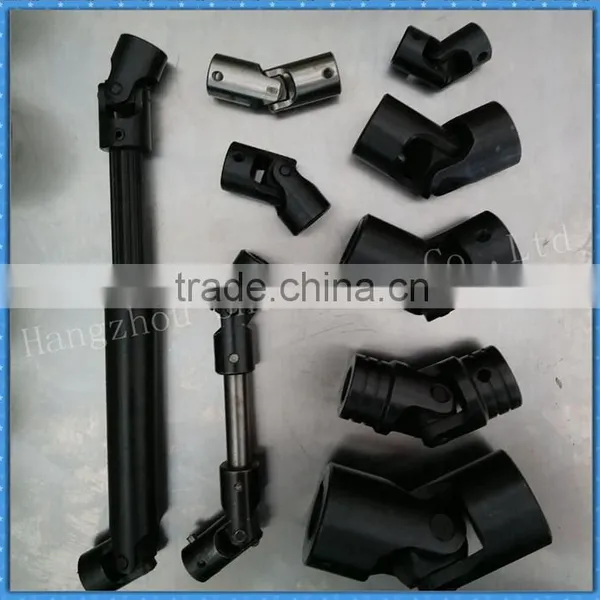

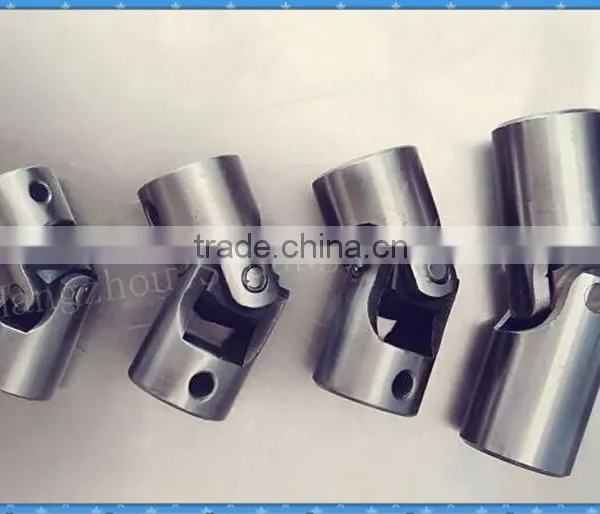

Help CenterFlexible Single Cross Universal Joint Coupling for Stepper Machine
Related Products
-
Precision Flexible Double Universal Joint CouplingUS$ 5.99 - 5.99MOQ: 50 Pieces -
Universal Joint Coupling High Precision WS Double Universal CouplingUS$ 5.99 - 5.99MOQ: 50 Pieces
-
Universal Coupling Drawing Small Single Flexible Universal Joint CouplingUS$ 2.99 - 2.99MOQ: 50 Pieces
-
Black Flexible Cross Universal CouplingUS$ 2.99 - 2.99MOQ: 50 Pieces
-
Single Universal CouplingUS$ 3.00 - 3.00MOQ: 50 Sets
Features of Universal Coupling:
1.Suitable for connection of space on the same plane two axis angle is less than or equal to the transmission of 45 degrees.Transfer nominal torque11.2-1120N.M.
2.WSD type is a single cross universal coupling, WS is a double cross universal coupling.(G is single type,GD is double type.)
3.The maximum axis of each section is 45 degrees.
4.Hole can be opened according to requirements,like key seating, six square hole and square hole.
5.The angle between the two axes is allowed to changed in a limited range as the work requirements.

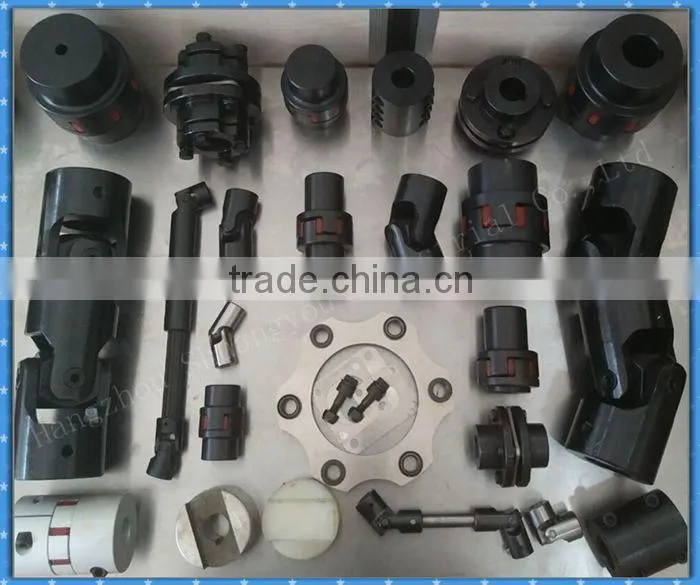

Hangzhou Shuangyou Industrial Co.,Ltd is expert in various coupling making in design and material. Different models are suitable for different demands, based on which you can have a custom-order or provide your drawings and technical requirements, we will offer you the best products at the best price with the best service. All the raw material that we use is superior quality.
1.About quality
Quality is the life . We use only the best quality material to ensure the standard of our product range is of the highest caliber.All products we sold out are strictly selected and tested by our QC department.So we can get the trust of a large customer, and supply them for several years.
2.About process
We can offer end machining, this is one standard end machining drawing, if you have special requirement, please offer us drawing. There will be additional end machining cost.We can ensure you that our prices across China are quite competitive.It is better for you to compare prices and quality among suppliers.
3.About payment
We accept payment via A: 40%T/T in advance,60%T/T against B/L B: 100%L/C.
4.About customize
We have our own R & D capabilities to help customers solve the problem of non-standard couplings.We can also according to customer requirements change their own mark.
1. How to choose a suitable shaft couplings?
(1) Please confirm the size of coupling you need.
(2) What is the material do you need, please?
(3) What is the outer diameter, inner diameters and length do you need, please?
(4) What is the requirement on torque, speed and etc.
2. What should I do, when I discover the broken products?
Contact us, please at the moment you receive goods. We have 24-hours customer hot line.
3. How can I get some samples?
Welcome your trial order! We are honored to offer you samples.
4. What is your minimum order price?
It's depend on the size of the products.
This price is based on the minimum specifications, if you need others, please contact us.
