Specifications

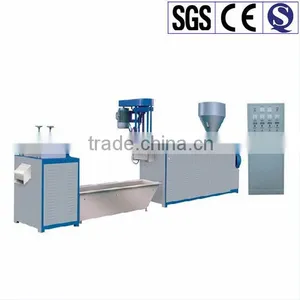

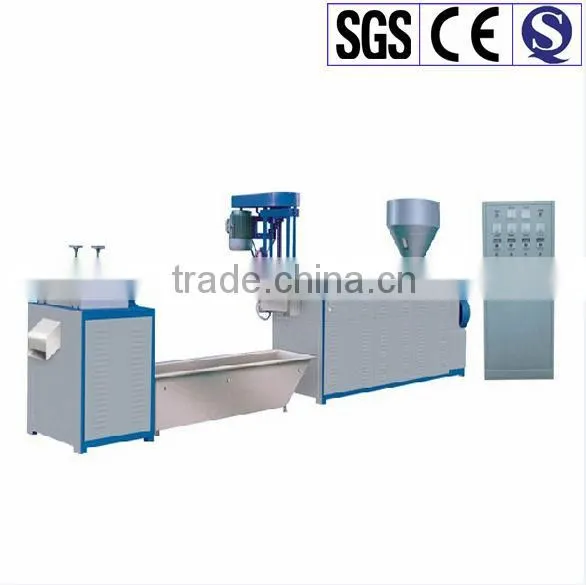

This machine is suitable for regeneration and granulation of waste plastics,HDPE,LDPE and PP, etc.Water Cooling Hot Cutting Plastic Film Recycling Machine (EN-SK)
Perfirnabce and Characteristics
This machine is suitable for regeneration and granulation of waste plastics,HDPE,LDPE and PP, etc. It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelleting with an extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance, and favorable economic benefit.
Main Technical Parameters | ||||
Model |
EN-SK-90 |
EN-SK-100 |
EN-SK-110 |
EN-SK-120 |
Screw diameter(mm) |
Φ90 |
Φ100 |
Φ110 |
Φ120 |
Screw L/D ratio |
L/D 20:1-22:1 |
L/D 20:1-22:1 |
L/D 20:1-22:1 |
L/D 20:1-22:1 |
Screw rotation |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
Power of main motor |
22kw |
30kw |
37kw |
45kw |
Main motor power |
68kg/h |
95kg/h |
120kg/h |
135kg/h |
Machine of weight |
2t |
2.1t |
2.2t |
2.5t |
Overall dimension(L*W*H) |
8000*1200*1800mm |
8200*1600*1800mm |
8500*1600*1800mm |
8800*1600*1800mm |
