Home > Industrial Equipment & Components > Compressor > Compressor Unit > SFG37-TC 37KW/50HP 13 BAR AUGUST AC Variable Frequency Air Cooled Screw Air Compressor ac Variable Frequency Drive

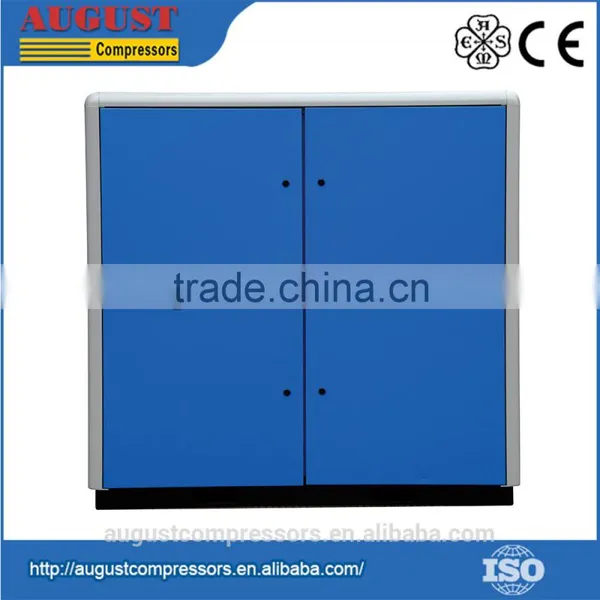

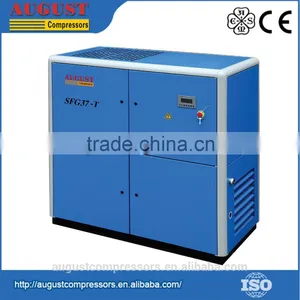

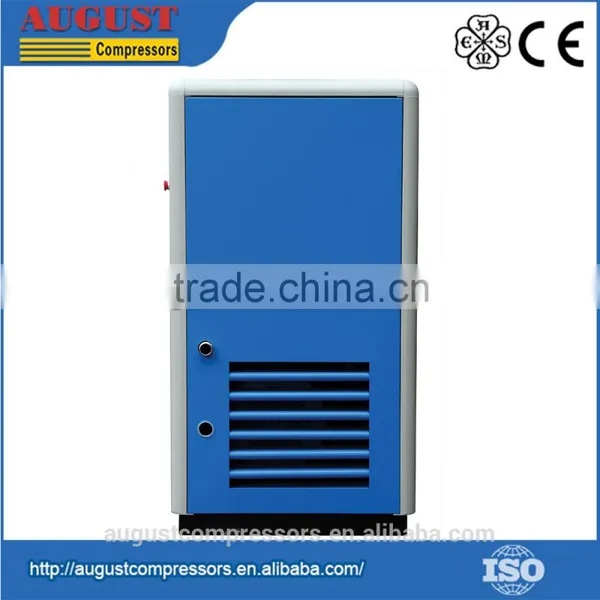

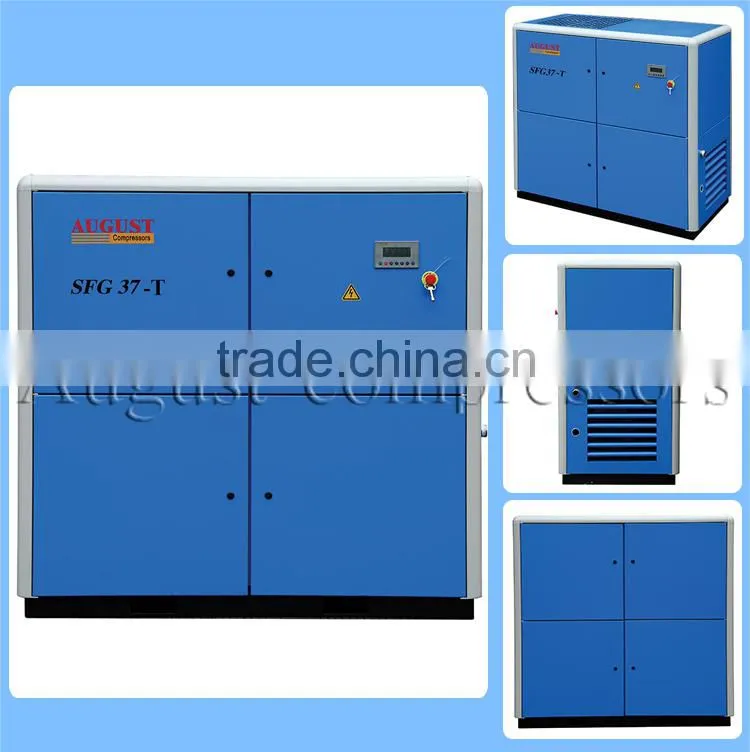

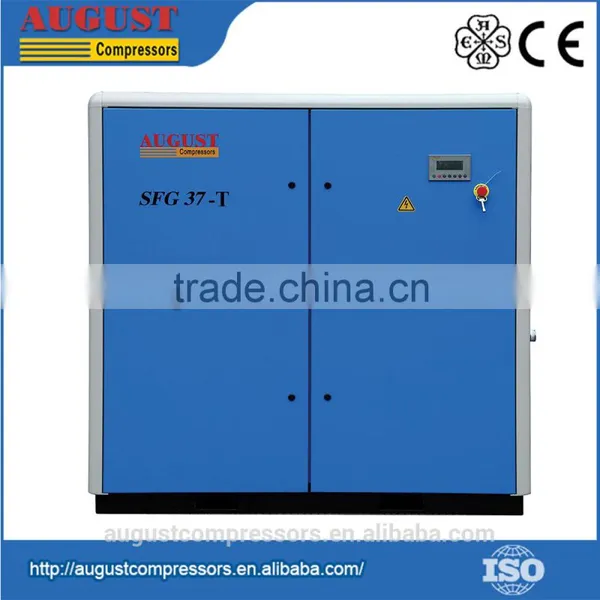

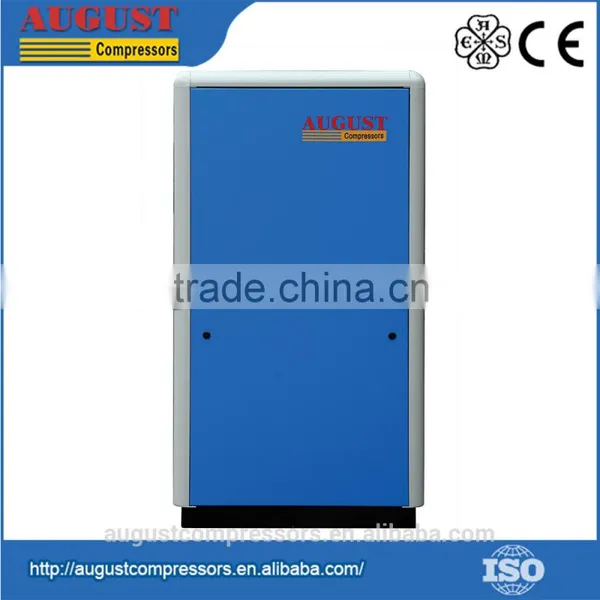

SFG37-TC 37KW/50HP 13 BAR AUGUST AC Variable Frequency Air Cooled Screw Air Compressor ac Variable Frequency Drive
US$ 8,663 - 9,663
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary
Configuration:
Stationary
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SFG37-TD 37KW/50HP 8 BAR AUGUST Variable Frequency Air Cooled Screw Air Compressor Frequency DriveUS$ 8,663 - 9,443MOQ: 1 Set -
SFC55-TB 55KW/75HP 10 BAR AUGUST Variable Frequency Air Cooled Screw Air Compressor TypesNegotiableMOQ: 1 Set
-
SFC55-TC 55KW/75HP 13 BAR AUGUST Variable Frequency Air Cooled Screw Air Compressor dc Motor Variable Speed DrivesNegotiableMOQ: 1 Set
-
SFC55-TD 55KW/75HP 8 BAR AUGUST Variable Frequency Air Cooled Screw Air Compressor Frequency Inverter 50hz to 60hzNegotiableMOQ: 1 Set
-
SF160-TB 160KW/215HP 10 BAR AUGUST Variable Frequency Air Cooled Screw Air Compressor ac Variable Frequency DriveUS$ 2,000 - 100,000MOQ: 1 Set
Condition
New
Type
Rotary
Configuration
Stationary
Power Source
AC Power
Lubrication Style
Lubricated
Mute
No
Place of Origin
Zhejiang, China
Brand Name
AUGUST
Model Number
SFG37-TC
Voltage
380V
Dimension(L*W*H)
1880X910X1680MM
Weight
1020 KG
Certification
ISO 9001/ISO14001/ CE
Warranty
18 Months
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
SFG37-TC 37KW/50HP 13 BAR AUGUST AC variable frequency air cooled screw air compressor ac variable frequency drive
- Air Cooled
- Twin Screw Single Stage Air End – August- Brand
- 5 Year Rotor Warranty
- 45,000-50,000 Working Hours Engineered Lifetime
- Skf Explorer Bearings (Mainly)
- Energy Saving Micro Control System, Fully Automated Operation
- Easy Maintenance
- Low-Noise Operation, Closed Cabinet Structure, Noise Reducing Dumping Mats Made Of Fire-Retardant Materials
- Belt Drive
- Drawing For Reference Only
- Efficient, Safe And Reliable Fully Enclosed Motor Drive (Ip54, F Class / Ip55 Optional)
- Energy Saving Air End 5:6 Helix
- Networkable Link Between Compressors / Grouping With On-Line, Remote Monitoring And Dsc Network Functions
- High Precision Heavy Duty Intake Filter 1Μm, 99.9% Efficiency
- Optimized Oil Separation System Residual Oil Rate 1-3Mg/M3
- Low Speed Air End Operation
- Powerful Low Noise Exhaust Fan / On Top Exhaust
- Automatic Control Of Functions / Maintenance Indicator
- English Language Display, Easy Operation, Running Status At A Glance, Runningreal-Time Monitoring Data
- Pressure And Temperature Control And Protection
- Start Up Protection ( Current Spike Free)
- English Language Display / English Language Manual
| Model | SFG37T-A | SFG37T-B | SFG37T-C | SFG37T-D |
| Free air delivery(m3/min) | 6.70 | 5.70 | 4.80 | 6.20 |
| cfm | 237 | 201 | 170 | 219 |
| l/s | 112 | 95 | 80 | 103 |
| Discharge pressure(MPa) | 0.70 | 1.00 | 1.30 | 0.80 |
| bar | 7.00 | 10.00 | 13.00 | 8.00 |
| psig | 101.50 | 145.00 | 188.50 | 116.00 |
| Ambient temperature(℃) | -5~+40 | |||
| Cooling method | Air cooling | |||
| Air supply temperature (℃) | Less Than Ambient temperature +15℃ | |||
| Drive method | Direct Coupling Drive | |||
| Start method | Star delta start | |||
| Noise dB(A)±3 | 73 | |||
| Power (kW/HP) | 37/50 | |||
| Overall dimension (mm) | 1880×910×1680 | |||
| Weight (kg) | 1020.00 | |||
| Air pipe (Inch) | 1″ | |||
| Air supply out (Inch) | 1-1/2′ |
|||
IE3 Version Compliance: | |||||||||||||||
|
Motor Power (kw) |
15 | 18.5 | 22 | 30 | 37 | 55 | 75 | 90 | 110 | 132 | 160 | 185 | 200 | 220 | 250 |
|
Efficiency
|
92.1 | 92.6 | 93 | 93.6 | 93.7 | 94.3 | 94.7 | 95.2 | 95.4 | 95.6 | 95.8 | 95.7 | 95.8 | 95.8 | 95.8 |
Company Information
High efficiency, energy saving and noise reduction elements are standard aspects in development and
production. The main product line reaches the standard of national Class 2 high efficiency requirements.
Furthermore Heat recovery systems, permanent magnet motor technology and VSD Inverter applications
are available to provide an even higher efficiency of the compressors. We combine the advanced
German technologies with the latest research achievement and rely on the core technology we own,
to establish our leading position in the industry and provide advanced solution to compressed air system
for customers in and outside China.
Product according with National Class II Energy-saving product, CE Marking Product Quality, ASME
available,ISO9001,ISO14001,ISO1217,OEM Welcome and adaptation to country specific regulations,
voltage and frequency are available. AUGUST Screw Air Compressor the best choice for your ROI.
