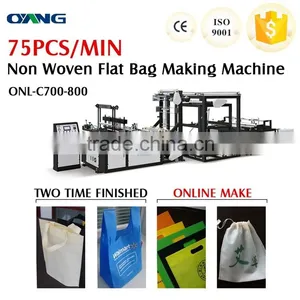

Ultrasonic non woven bag sealing machine (AW-C700-800)
Raw material
high speed ultrasonic non woven bag making machine suitable for PP non woven fabric, regeneration non woven fabric,lamination non woven fabric etc
The material thiness range is: 30-100GSM
Bag Type
1.Machine can make non woven fabric shopping bag, handle bag,t-shirt bag,colth bag,file bag,flat bag,vest bag etc. It can meet the demand of market.
2.The non woven fabric is an reproducible,environmental materials, it have large market in future.
3.The sample picture as following:
Machine Specification
| Model | AW-C700 | AW-C800 |
| Production speed | 40-100pcs/min | 40-100pcs/min |
| Bag width | 100-800mm | 100-800mm |
| Bag length | 200-580mm | 200-680mm |
| Bag thickness(gsm) | 30-100g | 30-100g |
| Power supply | 380V/220V | 380V/220V |
| Total power | 13KW | 15KW |
| Overall size | 7600*1920*1900mm | 7600*2020*1900mm |
Machine Advantage
1. Ultrasonic device to seal bags in good quality
2. Computer control, automatic feeding, automatic counting, automatic stopping.
3. Easy to operate and strong sealing effective
4. Photocell to track the color
5. Equipped with servo motor
6. Equipped auto pneumatic punching device
7.Equipped with tension control device.
8. Machine has got CE Certification, SGS Certification, company has obation ISO9001:2008 certification
Our Company
Our company is a comprehensive company. In order to create more economic and offer the one-step service, we collect all the knowledge and resource to service our customers with complete solution in nonwoven industry in our field, including the nonwoven production line, nonwoven bag making machine and nonwoven printing machine, and we had exported them to all over the world in the past years.
We have passed ISO9001:2008 quality certificated system and CE safety certificated system. With rich technology and capital resource, we pay high attention to the new product innovation. Every year we have at least one new design machine.
Creating value for customers first is the only way to achieve self-worth. We look forward to cooperating with you!
2013 Chinaplas Exhibition
2014 Chinaplas Exhibition
1. How long will your engineer reach our factory?
Within one week after machine arrival your factory.
2. How many days will you finish installing ?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 50USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.
9. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
10. How many worker do we need running those machines?
Except Two for bag making machine, flexo printing, slitting, ultrasonic sewing, hydraulic punching machine only need one person for each.
