Help CenterRussia Standard Z940H Z40Y-16C 25 40 64 100 Cuniform Gate Valve
Related Products
-
Ductile Iron 150 800 Pornd Check Valve of SYI GroupUS$ 1 - 10,000MOQ: 1 Set -
Ductile Iron 03663 Check Valve of SYI GroupUS$ 1 - 10,000MOQ: 1 Set
-
Ductile Iron Valves999 Y-type StrainerUS$ 1 - 10,000MOQ: 1 Set
-
Ductile Iron Check Valve Price of SYI GroupUS$ 1 - 10,000MOQ: 1 Set
-
Z45T/W-16/16Q Z15T-16 Non-rising Cuniform Gate ValveUS$ 1 - 10,000MOQ: 1 Set
Usage:This valve is applicable to various pipes which only open and close completely.
Main parts and materials
| Parts name | Material |
| Valve body.Bonnet | WCB |
| Disc | Carbon Steel+Stainless steel/Hard alloy |
| Stem | Stainless Steel |
| Yoke nut | Brass |
Function and specification
| Type |
Nominal pressure (MPa) |
Testing pressure | Suitable temperature( °C ) |
Suitable medium |
|
| Strength(Water)(MPa) | Enclose(Water)(MPa) | ||||
| Z940/941/40/41YH-16C | 1.6 | 2.4 | 1.8 | ≤425 |
Water Vapour Oil |
| Z940/941/40/41YH-25 | 2.5 | 3.8 | 2.8 | ||
| Z940/941/40/41YH-40 | 4.0 | 6.15 | 4.51 | ||
| Z940/941/40/41YH-64 | 6.4 | 9.75 | 7.15 | ||
| Z940/941/40/41YH-100 | 10.0 | 14.4 | 10.56 | ||

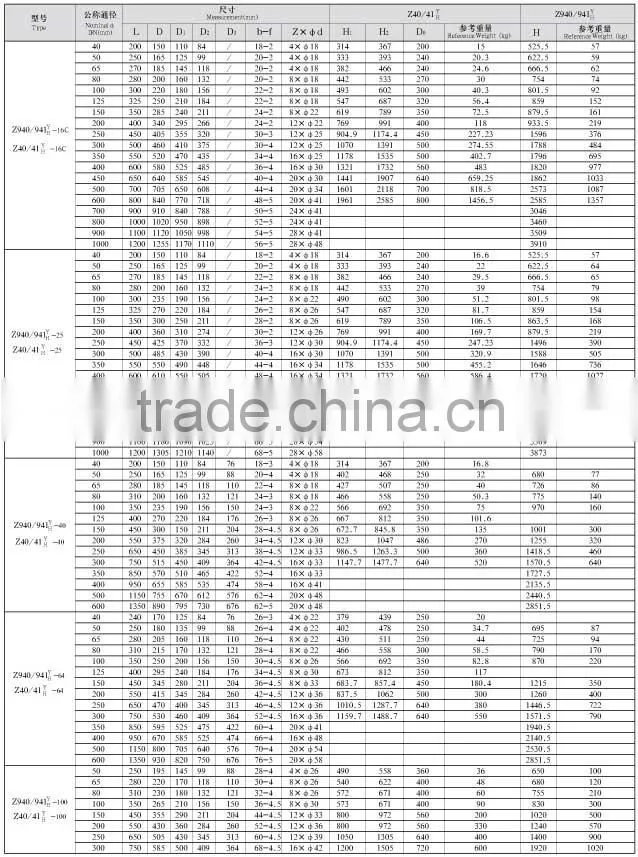

Outline and connecting measurement
Standard export package or as per your requirements, 20-25 Days depends on the demand quantity, stable manufacturing capability.
About SYI Group Information :
Specialist in Municipal, Drainage & Machinery Products & Service
SYI is GroupGroup Companies have served the society for over 20 years with best Municipal, Drainage and Machinery products.
···SYI Foundry
···SYI Pipeline Corporation
···SYI Industrial Casting Division
···SYI Forging Factory
···SYI Aluminum Division
SYI is the Specialist in Municipal, Drainage & Machinery Products & Services, including pipes, fititngs,couplings, valves, manhole covers, bollards, and OEM products in different materials ,sizes and technical processes. Now I invite you to visit our site .
Our aim is to provide all of our customers with VALUE of the products in stead of only low prices
About SYI Valves :
- Gate Valves, Check Valves, Butterfly Valves, Strainers, Fire Hydrants and Full ranges of Pipeline products & accessories
- DIN / BS / EN / API / ANSI / AWWA Standards available with different Material & Specs
- Competitive Price, Reliable Quality & On-time Delivery
Gate Valve |
Butterfly Valve |
Y-Strainer Valve |
| ||
Underground Fire Hydrant |
Cast Steel Gate Valve |
Cast Steel Globe Valve |
| | ||
Cast Steel Swing Check Valve |
Russian Standard Gate Valve |
Swing Check Valve |
| ||
Production Facility :
- Reliable Quality Assured by ISO 9001 2008
- Competitive Price by Strict Cost Control
- On-Time Delivery by All- Process Production Plan and Control
" SYI regards quality as an essential and integral part of our business success. To meet this, we have achieved all types of world-known certificates. Manufacturing "SYI" Brand products has evolved as a mark of quality and our products find warmacceptance in domestic as well as international market. "
Design :
- A group of highly experienced technical engineers is right here waiting for any of your requests.
- Professional softwares are used for design and test.
- We are able to use most of the world-wide engineering softwares, including AUTO Cad, Pro Engineer, Solid Works and etc.
More certification ... (Contact us!)
